Hexatronic Fiberoptic

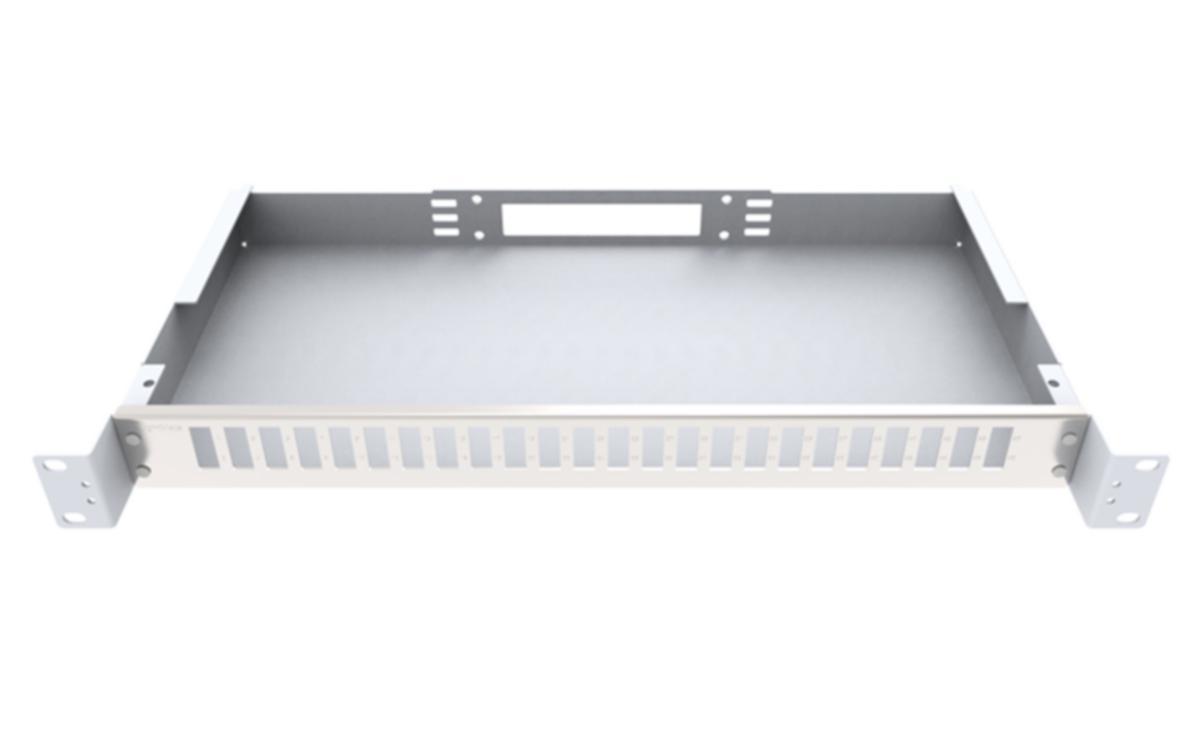

Fibre panel ODF LightMate 1u Fixed SC, TD Fiberoptik
LM ODF 24 FIXED, 12XSCD 12XSC DUPLEX
Article number: Suppl. article no:
5057836
LM-5248/101
to see price and stock
ODF for 19" stand
Height 1u, depth 250 mm.
Lacquered steel plate with corrosion-proof front. Colour coral white, structural lacquer
Cable diameter 5-18 mm.
Optional cable entry, left or right side.
The front is 30 mm recessed from the mounting point of the box - allows greater bend radius for the patch cable.
Installation kit shall be ordered separately.
Height 1u, depth 250 mm.
Lacquered steel plate with corrosion-proof front. Colour coral white, structural lacquer
Cable diameter 5-18 mm.
Optional cable entry, left or right side.
The front is 30 mm recessed from the mounting point of the box - allows greater bend radius for the patch cable.
Installation kit shall be ordered separately.
- Article number: 5057836
- Suppl. article no: LM-5248/101
- Material class QR5641
Technical data
- Packagin Size: 1 ST/50 ST/50 ST
- Type of connector interior: SC duplex
- Type of connector external: SC duplex
- APC-version: No
- Suitable for number of couplings/adaptors: 24
- Suitable for number of module inserts: 12
- With number of couplings/adaptors: 24
- Number of height units: 1
- With front plate: Yes
- Fibre type: Single mode
- Fibre class: OS2
- Width: 482 mm
- Depth: 250 mm
- Height: 44.45 mm
- Mounting method: 482.6 mm (19 inch) mounting
- Colour: White
- RAL-number: 9010
- With pigtails: No
- With housing: Yes
- REACH Date: 2022-10-20
- REACH Information obligation: No
