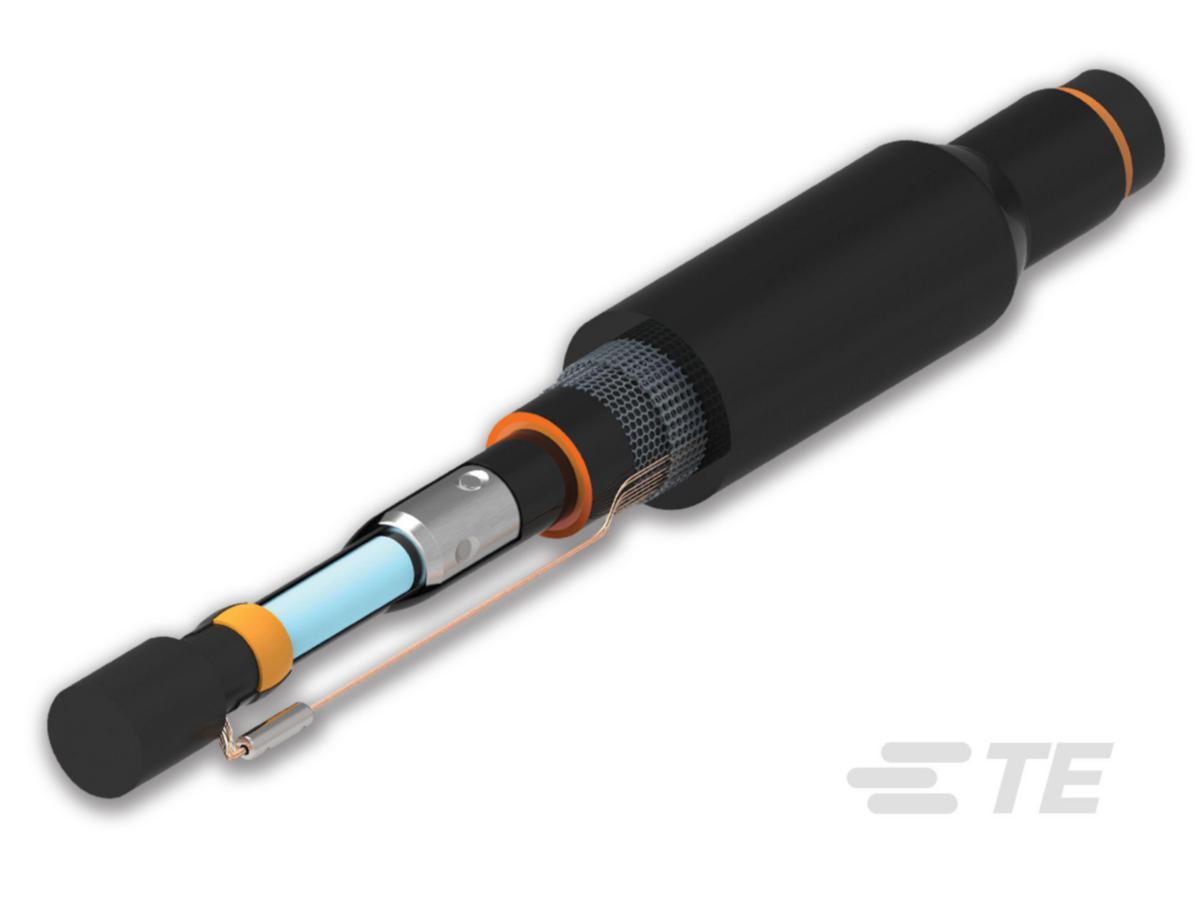

Cable joint 12kV, MXSU 1-wire

Use: For splicing Earth cable, 1-wire 12kV. PLEASE NOTE! The splices allow jacket testing.
Standard: CENELEC HD 629.1.S1, IEC 61238–1 (splice sleeve).
Design: Inner and outer sleeves are expanded so that they can be applied and then heat-shrunk. The lines are spliced with the supplied screw splicing casings, which include an integrated element in the screws, and which detach when the required torque is achieved. After cable preparation, fold a field-control cloth above the splicing sleeve and the tubes are shrunk in order to achieve field control and full insulation. The shield wires are spliced with supplied screw splice sleeves.
Set contents: The set contains equipment for 1 wire.
