Plejd

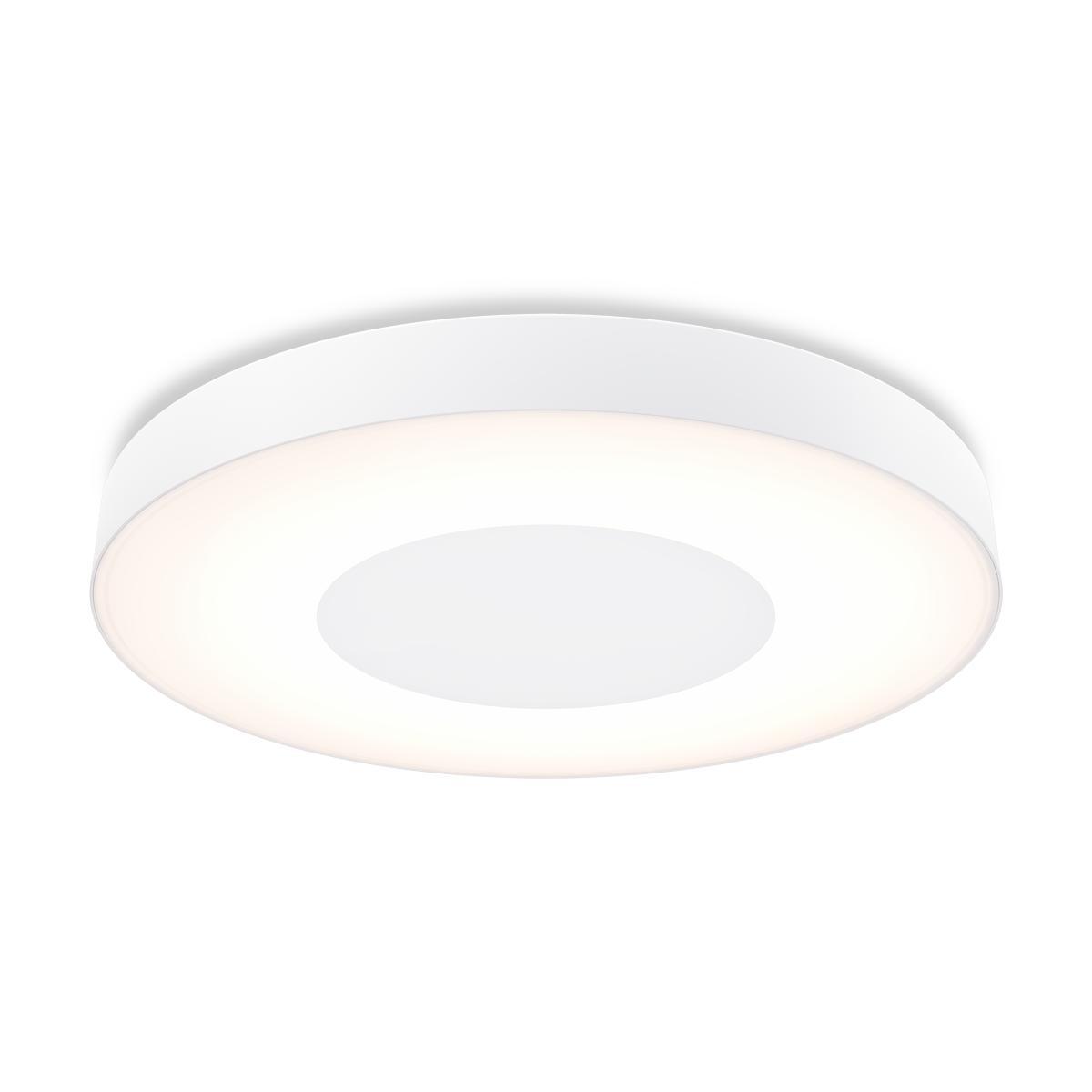

Plafond CCL-01
Ceiling luminaire White
Article number: Suppl. article no:
7577717
CCL-01-W
to see price and stock
CCL-01 is a smart LED ceiling with tunable white and built-in dimmer function. No external dimmer should be used. It can be grouped wirelessly and controlled via the app, other products from Plejd or a wired push button. The CCL-01 has adjustable color temperature and can be set to a fixed temperature or dim to warm.
- Article number: 7577717
- Suppl. article no: CCL-01-W
- Ean no: 7330018013178
- Material class QT7040
Technical data
- Packagin Size: 1 PCS/8 PCS
- Type: CCL-01-W
- Max. system power: 22 W
- Rated luminous flux according to IEC 62722-2- 1: 2000 lm
- Colour temperature: 2200-4000 K
- Housing colour: White
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: Extreme wide beam >80°
- Housing material: Plastic
- Material cover: Plastic matt/satinized
- Lamp type: LED not exchangeable
- Outer diameter: 294 mm
- Width: 294 mm
- Height/depth: 50 mm
- Length: 294 mm
- Colour rendering index CRI: 90-100
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- Type of control gear: Not required
- With control gear: Yes
- Colour of light: White
- With light source: Yes
- Suitable for surface mounting: Yes
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for ceiling mounting: Yes
- Impact strength: IK07
- Number of poles: 2
- Dimming with push-button: Yes
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: Yes
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 90 lm/W
- Suitable for lamp power: 0-22 W
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-35 °C
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: Yes
- Total harmonic distortion: 0.38
- Photobiological safety according to EN 62471: RG1
- Colour consistency (McAdam ellipse): SDCM3
- Luminous intensity: 670 cd
- Surface protection housing: Untreated
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 94 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 86 %
- Flickering value Pst LM: 0.1
- Beam angle adjustable: No
- Colour of light adjustable: Continuously variable
- Compatible with Amazon Alexa: Yes
- Compatible with Apple HomeKit: Yes
- Compatible with Google Assistant: Yes
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 160
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 160
- Stroboscope effect value SVM: 0.4
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Suitable for wall mounting: Yes
- Nominal current: 2-100 mA
- Connection type: Push-in clamp
- REACH Date: 2024-05-23
- REACH Information obligation: No
