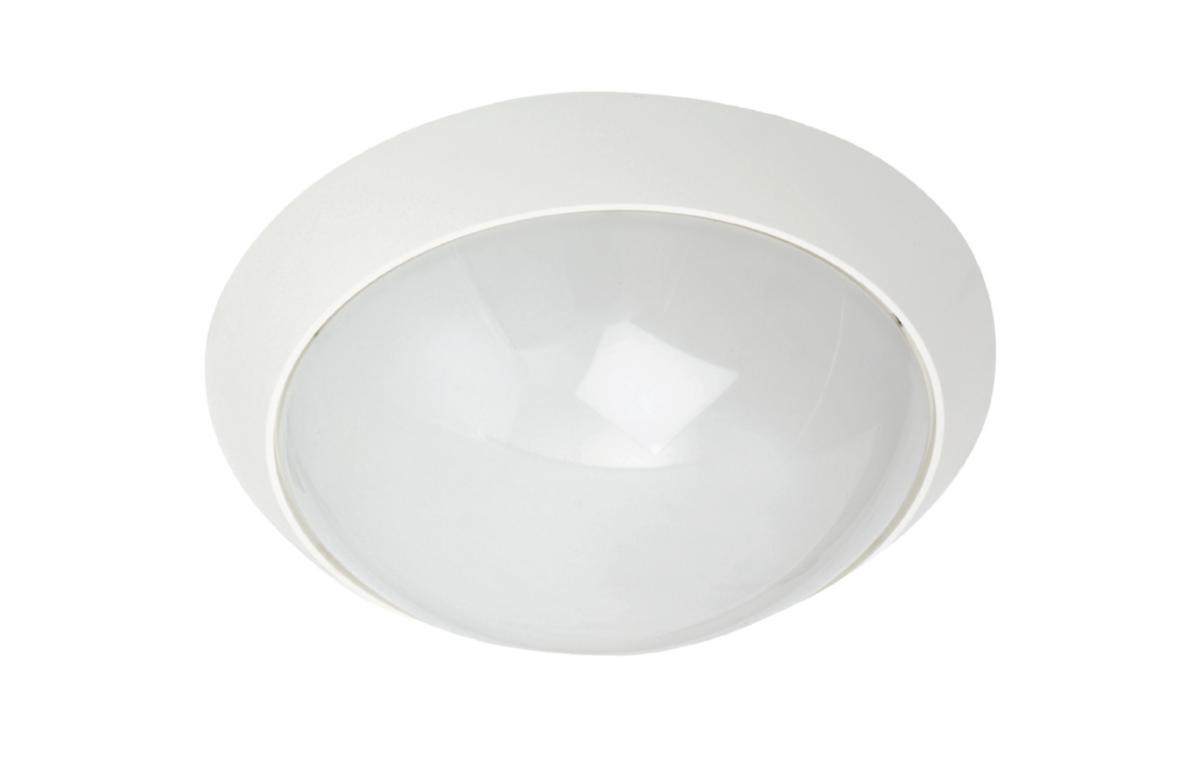

Ceiling and wall fitting Enok LED, SG-Armaturen
CEILING LIGHT ENOK WHT 10W SEN
Article number: Suppl. article no:
7551505
181194
to see price and stock
Universal ceiling/wall fittings in aluminium with integrated LED. Sensor with the potential for connecting wired slave fixtures.
- Article number: 7551505
- Suppl. article no: 181194
- Ean no: 7021981811945
- Material class QT687A
Technical data
- Packagin Size: 1 ST/7 ST/7 ST/63 ST
- Type: Enok LED
- Colour cover: White
- Sensor: Yes
- Colour temperature: 3000 K
- Lamp power: 10 W
- Degree of protection (IP): IP44
- Luminous flux: 550 lm
- Diameter: 300 mm
- Length: 92 mm
- Width: 300 mm
- Height/depth: 92 mm
- Colour display: Ra80
- Colour consistency (McAdam ellipse): SDCM3
- Information: Master
- Max. system power: 10 W
- Colour temperature: 3000 K
- Suitable for lamp power: 10 W
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Built-in width: 0 mm
- Rated life time L90/B10 at 25 °C: 0 h
- Rated life time L90/B50 at 25 °C: 0 h
- Conductor cross section: 2.5 mm²
- Power factor: 0.9
- Built-in length: 0 mm
- Rated life time L80/B10 at 25 °C: 0 h
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Outer diameter: 300 mm
- Suitable for number of light sources: 1
- Built-in diameter: 0 mm
- Built-in height/depth: 0 mm
- Nominal voltage: 230 V
- Luminaire efficacy: 79 lm/W
- Number of poles: 2
- Rated luminous flux according to IEC 62722-2-1: 790 lm
- Covering of the luminaire with thermally insulating material possible: No
- Colour of light: White
- IFTTT support available: No
- With movement sensor: Yes
- Compatible with Google Assistant: No
- Lowest energy efficiency class of the exchangeable lamp: A+
- Suitable for wall mounting: Yes
- Compatible with Apple HomeKit: No
- Beam angle: > 80° - Extreme wide beam
- No dim function: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Type of control gear: Not required
- Suitable for light line configuration: No
- Dimming 1-10 V: No
- Dimming programmable: No
- Dimming 0-10 V: No
- Suitable for suspended mounting: No
- Housing material: Aluminium
- Suitable for emergency lighting: No
- Dimming RF: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming LineSwitch: No
- Dimming phase cut-off (trailing edge): No
- With light source: Yes
- With air slots: No
- Suitable for ceiling mounting: Yes
- Dimming Zigbee: No
- Colour rendering index CRI: 80-89
- Dimming with push-button: No
- Dimming potentiometer (integrated): No
- Dimming Sine Wave Reduction: No
- Light distributor: Other
- Degree of protection (NEMA): Other
- Exchangeable control gear: No
- With control gear: Yes
- Dimming DMX: No
- Type of wiring: Suitable for loop-through wiring
- Dimming DALI: No
- Dimming Touch and Dim: No
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Suitable for wall mounting: Yes
- Operation by Bluetooth: No
- Impact strength: IK10
- Lamp type: LED not exchangeable
- Suitable for workplace according to EN 12464-1: No
- Dimming mains voltage modulation: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Light outlet: Direct
- Suitable for built-in mounting: No
- Beam angle adjustable: No
- Voltage type: AC
- Lamp holder: Other
- Connection type: Other
- Material cover: Plastic, opal
- Light distribution: Symmetric
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Dimming DALI-2: No
- Emergency power supply integrated: No
- Surface protection housing: Other
- Suitable for surface mounting: Yes
- Dimming DSI: No
- Type of grid: None
- Protection class according to IEC 61140: II
- Dimming depending on control gear: No
- Compatible with Amazon Alexa: No
- Dimmable: Yes
- Housing colour: White
- With light sensor: No
