Ceiling luminaire Moon Slim, Hide-a-Lite
PLAFOND MOON SLIM 255 MOON SLIM 255
Artikelnummer: Lev. artikelnr:
7507456
7507456
för att se saldo och pris

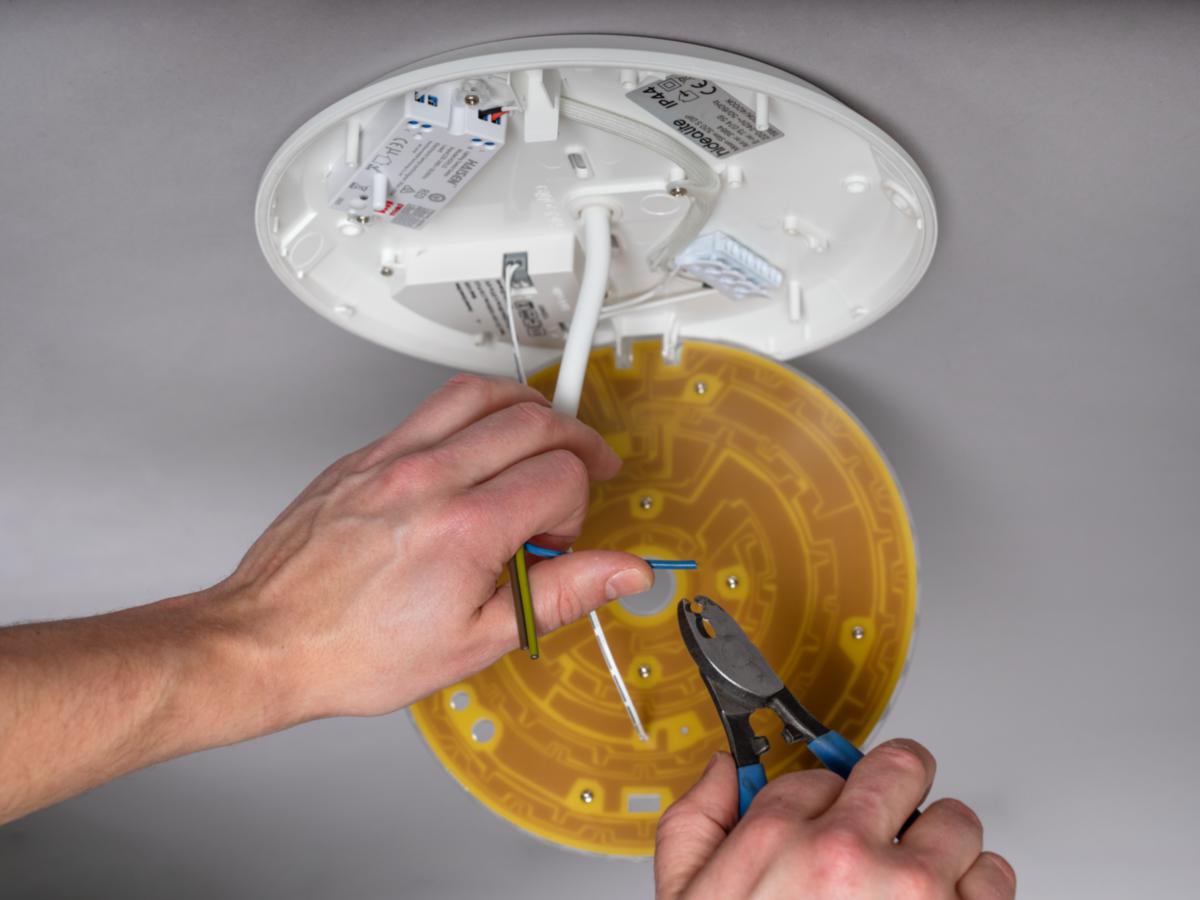

Low-profile LED ceiling in a slim design with a pleasant light that evens out the contrast against the ceiling or wall. Selectable color temperature via DIP switch 3000K or 4000K. Easy-to-install luminaire in IP44 with long service life and high luminous flux, which is delivered complete with built-in phase-dimmable drive device, or control via microwave sensor. Finished screw holes that fit over the ceiling box, two entrances at the bottom, one of which is centered. Cable glands for surface wiring from two sides.
- Article number: 7507456
- Suppl. article no: 7507456
- Ean no: 7392971141244
- Material class QT702A
Teknisk data
- Packagin Size: 1 ST/5 ST/5 ST
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1180 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: Extreme wide beam >80°
- Housing material: Plastic
- Material cover: Plastic, opal
- Lamp holder: Other
- Lamp type: LED exchangeable
- Outer diameter: 255 mm
- Height/depth: 51 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: Multi-coloured
- With movement sensor: No
- With air slots: No
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.8
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 98 lm/W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM3
- Luminous intensity: 295 cd
- Emergency power supply integrated: No
- Surface protection housing: Untreated
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 84 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 77 %
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 157
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 157
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
