Ceiling and wall luminaire AVR70 / 71/72 LED, Ensto
LED LUMINAIRE 8W AVR72.19L/3K
Article number: Suppl. article no:
7506978E
AVR72.19L/3K
to see price and stock

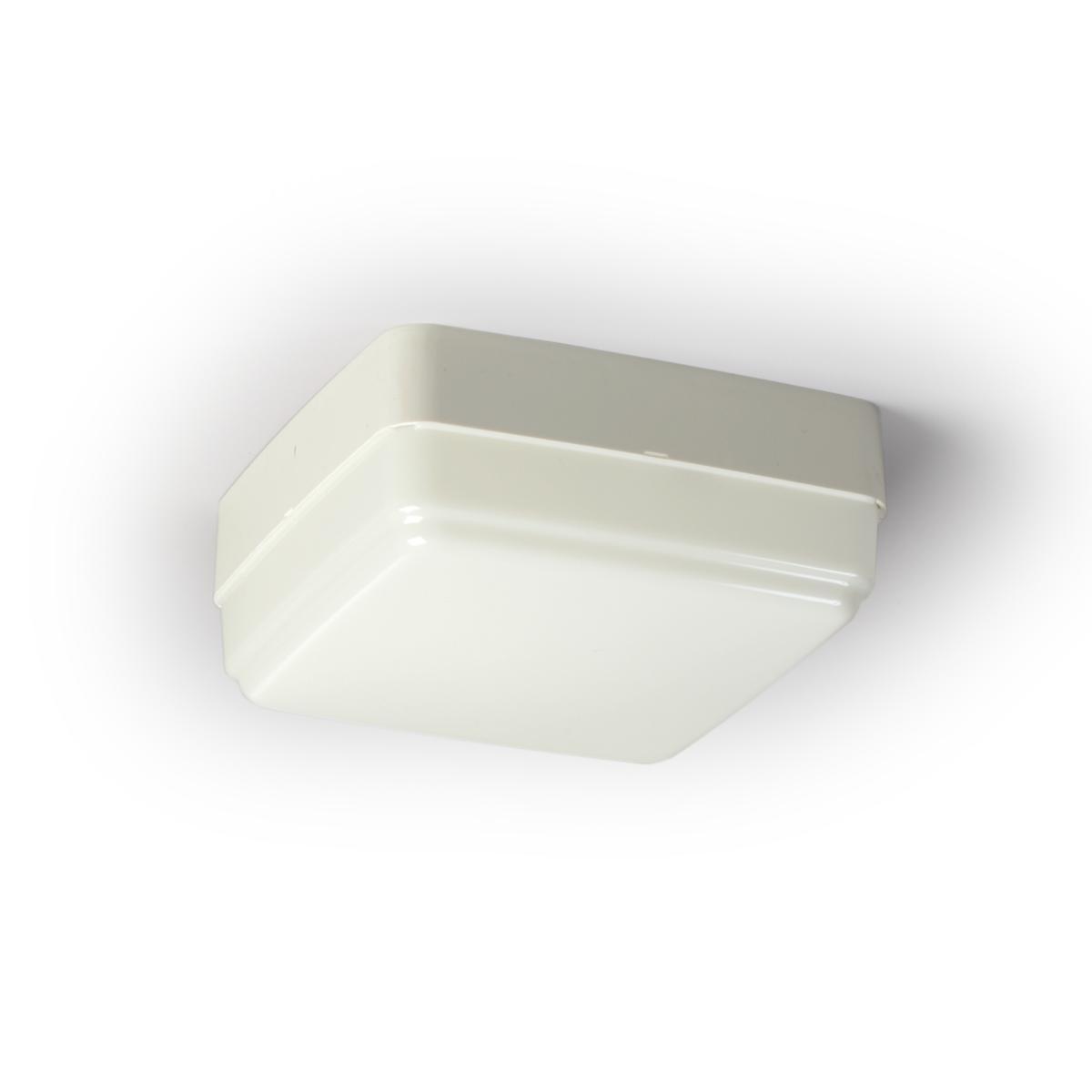

Square solid plastic luminaire in recyclable polycarbonate for indoor and outdoor use. The luminaire has a rotatable transparent base plate that facilitates installation. AVR70 has a square cup, AVR17 triangular cup that is well suited as a house number luminaire and AVR72 has a square lower cup.
- Article number: 7506978E
- Suppl. article no: AVR72.19L/3K
- Ean no: 6438100384333
- Material class QT6820
Technical data
- Type: AVR72.19L/3K
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 550 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Suitable for number of light sources: 1
- Beam angle: Open beam/diffuse
- Degree of protection (IP): IP44
- Length: 225 mm
- Width: 225 mm
- Height/depth: 95 mm
- Type of control gear: LED operating device voltage-controlled
- Material cover: Plastic, opal
- Housing material: Plastic
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: II
- Nominal voltage: 230 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: Yes
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Dimming Touch and Dim: No
- Covering of the luminaire with thermally insulating material possible: Yes
- Suitable for wall mounting: Yes
- REACH Date: 2021-06-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming depending on control gear: No
- Dimming GPRS: No
