Ensto
Plafond AVR1
AVR1 IP44 LED10W/840 PCO AVR1.110L
Article number: Suppl. article no:
7505920
AVR1.110L
to see price and stock

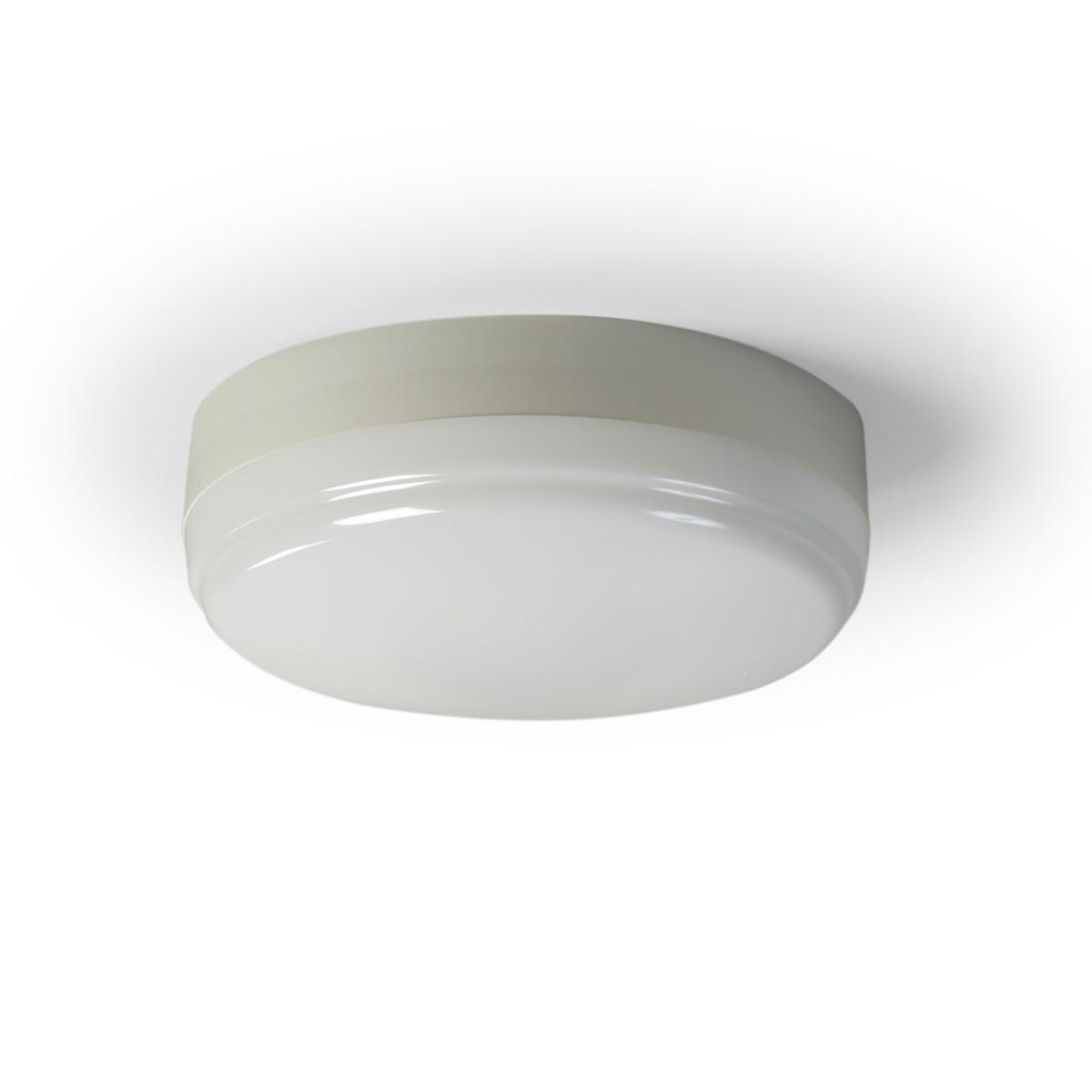

AVR1 is a weather-resistant luminaire in polycarbonate for both indoor and outdoor use. Low profile, easy to maintain and timeless design have made the AVR1 a classic.
- Article number: 7505920
- Suppl. article no: AVR1.110L
- Ean no: 6438100362508
- Material class QT6830
Technical data
- Packagin Size: 1 ST/120 ST/120 ST
- Max. system power: 10 W
- Rated luminous flux according to IEC 62722-2- 1: 800 lm
- Colour temperature: 4000 K
- Housing colour: White
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Beam angle: Open beam/diffuse
- Housing material: Plastic
- Material cover: Plastic, opal
- Lamp type: LED not exchangeable
- Outer diameter: 260 mm
- Height/depth: 88 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: White
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: Yes
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Impact strength: IK07
- Covering of the luminaire with thermally insulating material possible: Yes
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 80 lm/W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Suitable for wall mounting: Yes
- REACH Date: 2021-06-18
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
