SG Armaturen

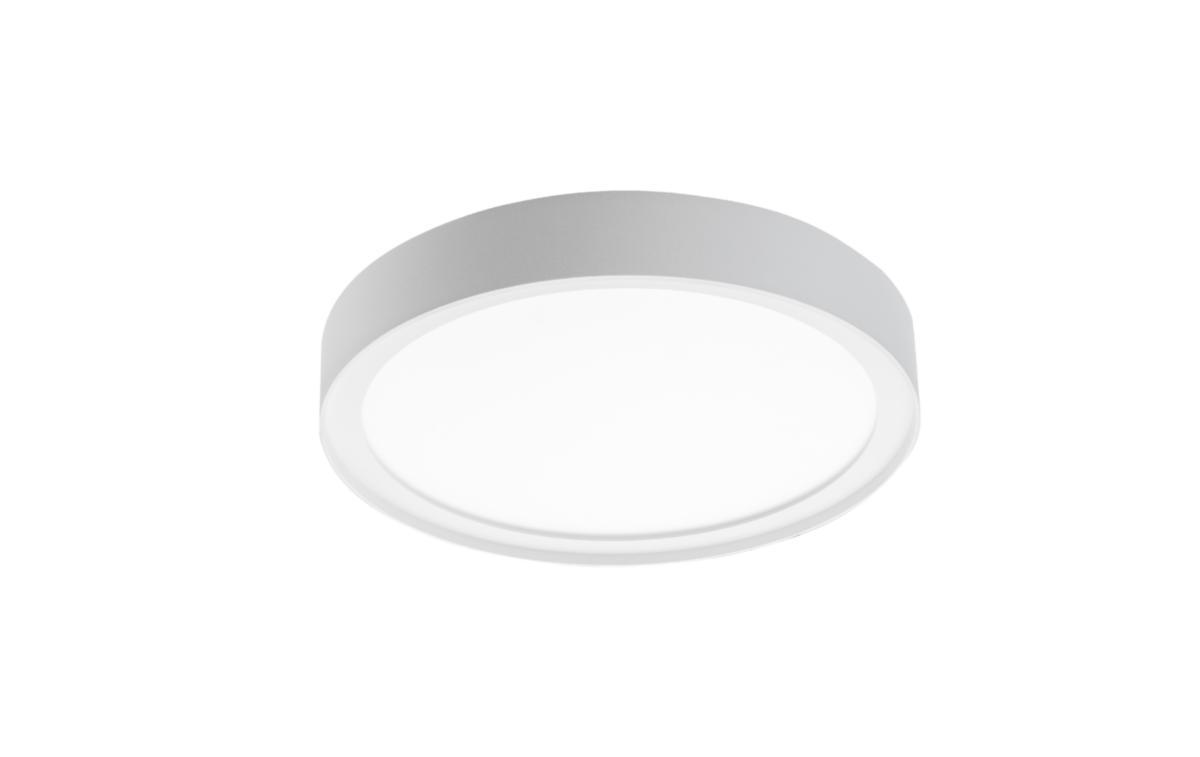

Ceiling luminaire Disc Round 290
DISC 290 WHITE 3000K DISC 290
Article number: Suppl. article no:
7505474
606035
to see price and stock
Energy-efficient surface-mounted LED luminaires with a slim profile that gives a modern look. Round in several sizes and lumen packages. The prism diffuser provides glare-free lighting. Easy installation with quick connection between luminaire and backing plate that can be screwed directly onto the most common ceiling frames.
TW = Tunable White
TW = Tunable White
- Article number: 7505474
- Suppl. article no: 606035
- Ean no: 7021986060355
- Material class QT6870
Technical data
- Packagin Size: 1 ST/6 ST/6 ST/72 ST
- Max. system power: 17 W
- Rated luminous flux according to IEC 62722-2- 1: 1990 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: Wide beam 41-80°
- Housing material: Aluminium
- Material cover: Plastic, opal
- Lamp holder: Other
- Lamp type: LED not exchangeable
- Outer diameter: 288 mm
- Width: 288 mm
- Height/depth: 55 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP20
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: White
- With movement sensor: No
- With air slots: No
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Indirect
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK10
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Built-in length: 0 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Filament test according to IEC 60695-2-11: None
- Built-in width: 0 mm
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 117 lm/W
- Suitable for lamp power: 17 W
- Suitable for light line configuration: Yes
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Emergency power supply integrated: No
- Surface protection housing: Other
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 51
- IFTTT support available: No
- Exchangeable control gear: No
- Rated life time L90/B50 at 25 °C: 0 h
- Built-in diameter: 0 mm
- Suitable for wall mounting: Yes
- Built-in height/depth: 0 mm
- Connection type: Other
- Rated life time L90/B10 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Lowest energy efficiency class of the exchangeable lamp: A+
- Suitable for wall mounting: Yes
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Dimming depending on control gear: Yes
