AhlsellProductsElectricLighting 70-8370 Interior light luminairesPlafond luminaires and accessoriesPlafond luminaires
Steinel

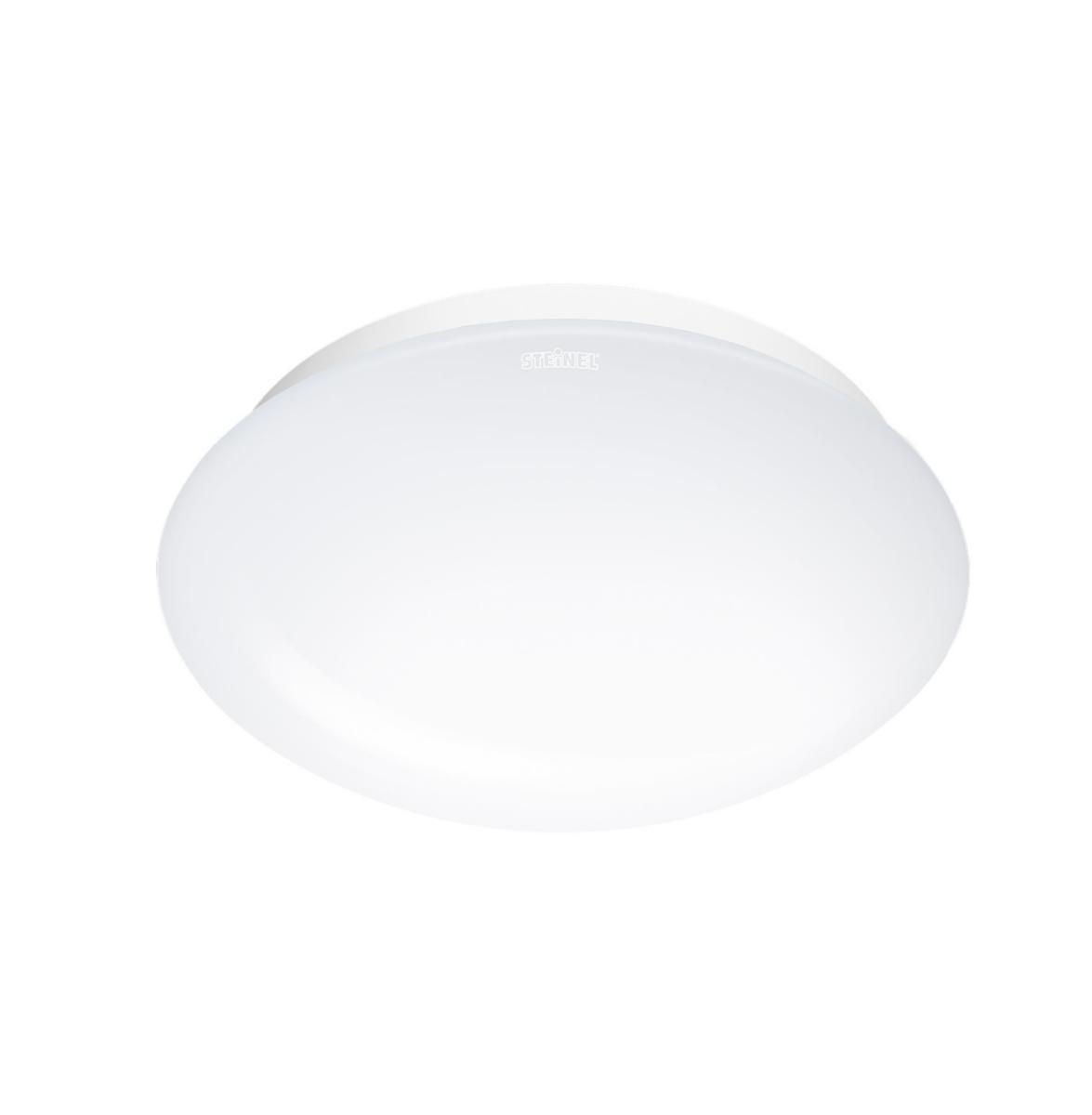

Ceiling luminaire RS PRO Sensor, Steinel Karl H Ström
LUM SENSOR RSLED P1V3 3000K RSPRO P1V3 SENS WW
Article number: Suppl. article no:
7504857
56063
to see price and stock
Sensor luminaire for ceiling or wall mounting. Equipped with HF sensor that responds lightning fast to all movements, the range of the sensor is adjustable 1-8 meters. Equipped with adjustable twilight relay. Possibility of basic light 10%. White body of polycarbonate. Opal acrylic sheath (PMMA). Can be connected to several sensor luminaires or slave luminaires in the RS PRO LED P1-P3 series.
- Article number: 7504857
- Suppl. article no: 56063
- Ean no: 4007841056063
- Material class QT684A
Technical data
- Max. system power: 9.5 W
- Rated luminous flux according to IEC 62722-2- 1: 960 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Beam angle: Extreme wide beam >80°
- Lamp holder: Other
- Degree of protection (IP): IP54
- Height/depth: 110 mm
- Outer diameter: 280 mm
- Material cover: Plastic, opal
- Housing material: Plastic
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: II
- Impact strength: IK03
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.91
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: None
- Luminaire efficacy: 101 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light sensor: Yes
- With air slots: No
- With movement sensor: Yes
- Rated ambient temperature according to IEC 62722-2-1: -10-40 °C
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Suitable for wall mounting: Yes
- Rated life time L80/B10 at 25 °C: 50000 h
- REACH Date: 2022-03-07
- REACH Information obligation: No
- Dimming depending on control gear: Yes
- Dimming GPRS: No
