Airam

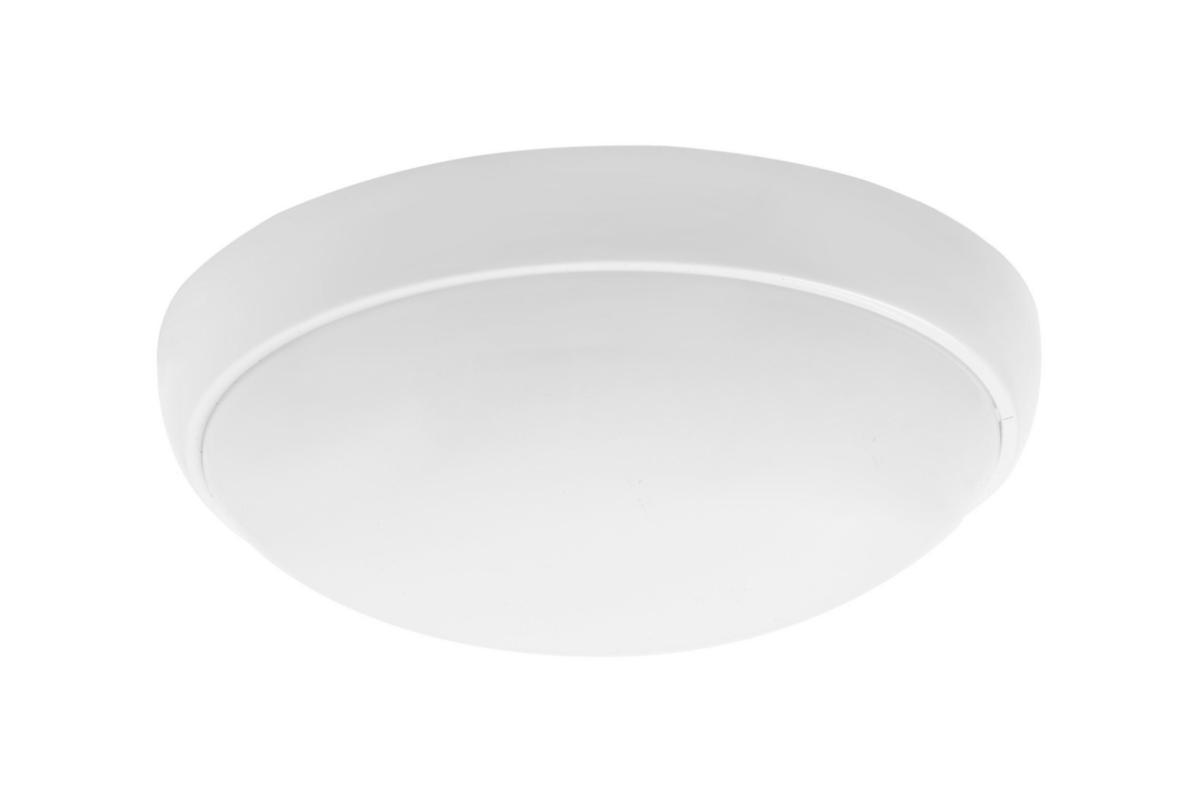

Plafond Orbit
ARM ORBIT IP44 13W/830/840
Article number: Suppl. article no:
7504389
9610175
to see price and stock
Orbit with radar function is a versatile, flexible ceiling light with adjustable light flow In four effects and in two color temperatures, 3 and 4000K, which can be set directly on the drive unit. The impact-resistant luminaire can be ceiling or wall mounted in offices, schools, daycare centers entrance halls, stairwells and toilet and shower areas as well as outdoor areas. The dome has a bayonet attachment that simplifies installation. Can be mounted on the junction box. Mounting height 2-6 meters. Frame and dome made of polycarbonate. Lifespan is L70/50,000 hours.
Luminous fluxes for the various effects are:
7W 600lm
10W 800lm
13W 1000lm
15W 1200lm
Luminous fluxes for the various effects are:
7W 600lm
10W 800lm
13W 1000lm
15W 1200lm
- Article number: 7504389
- Suppl. article no: 9610175
- Ean no: 6435200244512
- Material class QT690A
Technical data
- Packagin Size: 1 ST/6 ST
- Max. system power: 13 W
- Rated luminous flux according to IEC 62722-2- 1: 1000 lm
- Colour temperature: 3000-4000 K
- Dimming DALI: No
- With movement sensor: No
- Outer diameter: 300 mm
- Housing colour: White
- Height/depth: 80 mm
- Width: 300 mm
- Length: 300 mm
- Nominal voltage: 220-240 V
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- Beam angle: Extreme wide beam >80°
- Housing material: Plastic
- Lamp holder: Other
- Lamp type: LED not exchangeable
- Colour rendering index CRI: 80-89
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Material cover: Plastic, opal
- Colour of light: White
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Impact strength: IK10
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimmable: No
- Suitable for lamp power: 13 W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 0-35 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM5
- Emergency power supply integrated: No
- With air slots: No
- Suitable for wall mounting: Yes
- REACH Date: 2021-09-21
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
