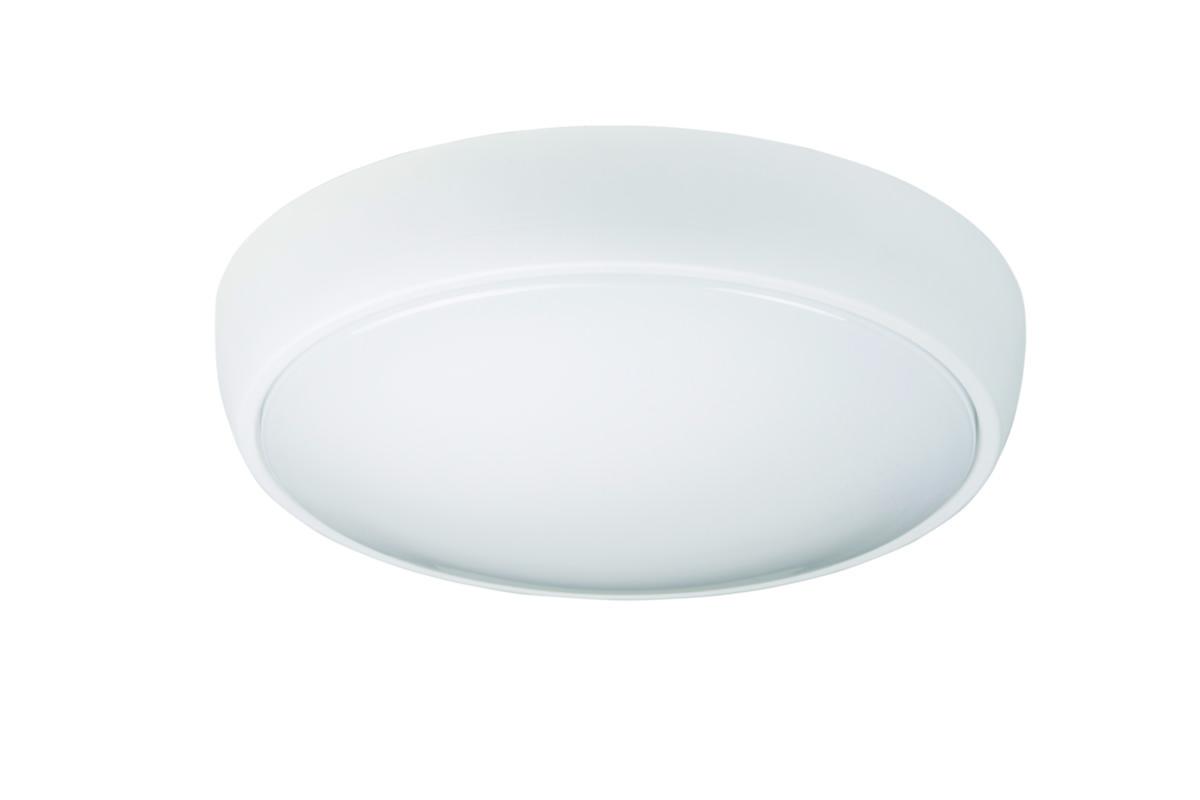

Ceiling and wall fitting LED Lumina On/Off, Alento
LUMINA LED 14W 3K
Article number: Suppl. article no:
7502911
41420
to see price and stock
Plafond with frame of powder-coated sheet steel and opal white acrylic cup. Cable connection via the top of the luminaire and 2 side holes 180 ° for connection. Connects to 1.5 mm² quick-connect terminal block.
- Article number: 7502911
- Suppl. article no: 41420
- Material class QT688A
Technical data
- Packagin Size: 1 ST/6 ST/48 ST
- Max. system power: 14 W
- Rated luminous flux according to IEC 62722-2- 1: 1364 lm
- Colour temperature: 3000 K
- Housing colour: White
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Housing material: Steel
- Material cover: Plastic, opal
- Lamp type: LED not exchangeable
- Outer diameter: 350 mm
- Height/depth: 98 mm
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP44
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- With light source: Yes
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for ceiling mounting: Yes
- Impact strength: IK08
- Number of poles: 3
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Surface protection housing: Powder coating
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 20
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: Yes
- Lamp power: 14 W
- REACH Date: 2024-05-01
- Colour temperature: 3000 K
- Diameter: 350 mm
- Colour cover: White
- REACH Information obligation: No
