AhlsellProductsElectricLighting 70-8370 Interior light luminairesPlafond luminaires and accessoriesPlafond luminaires
SG Armaturen

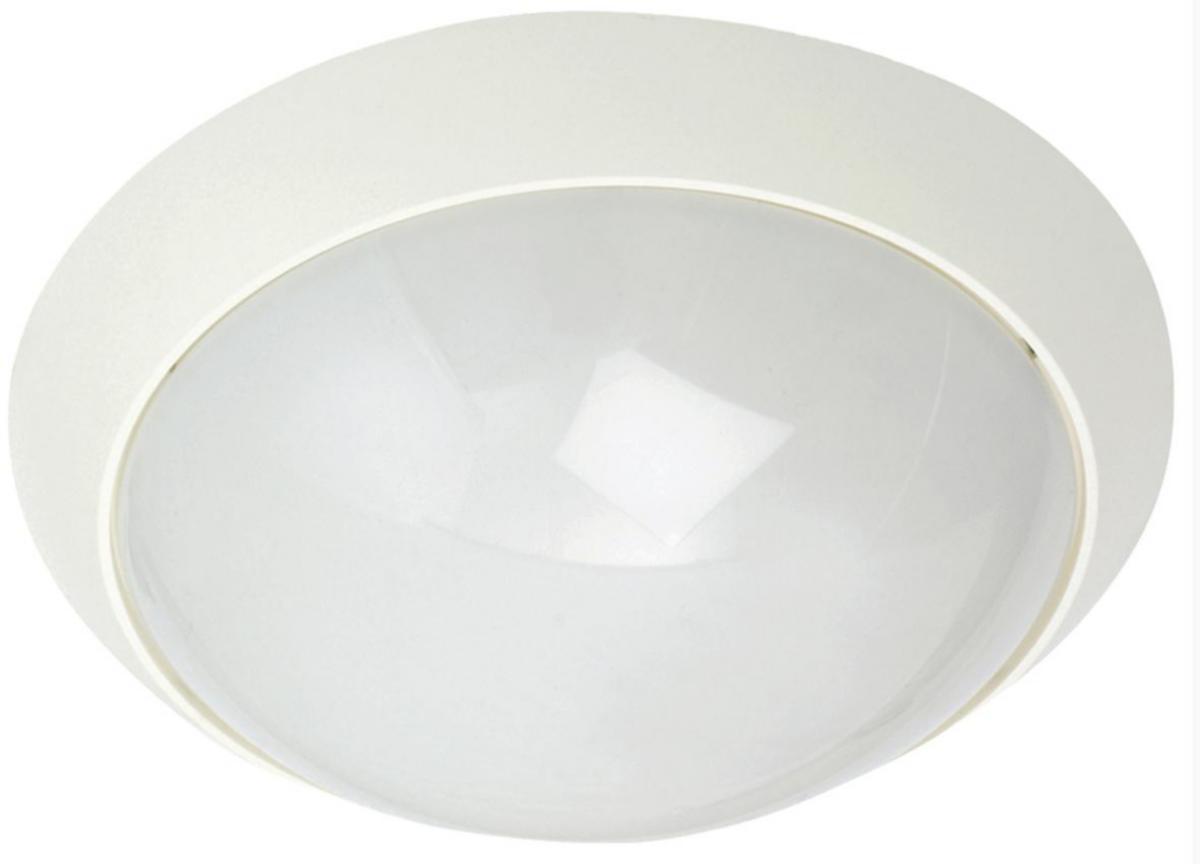

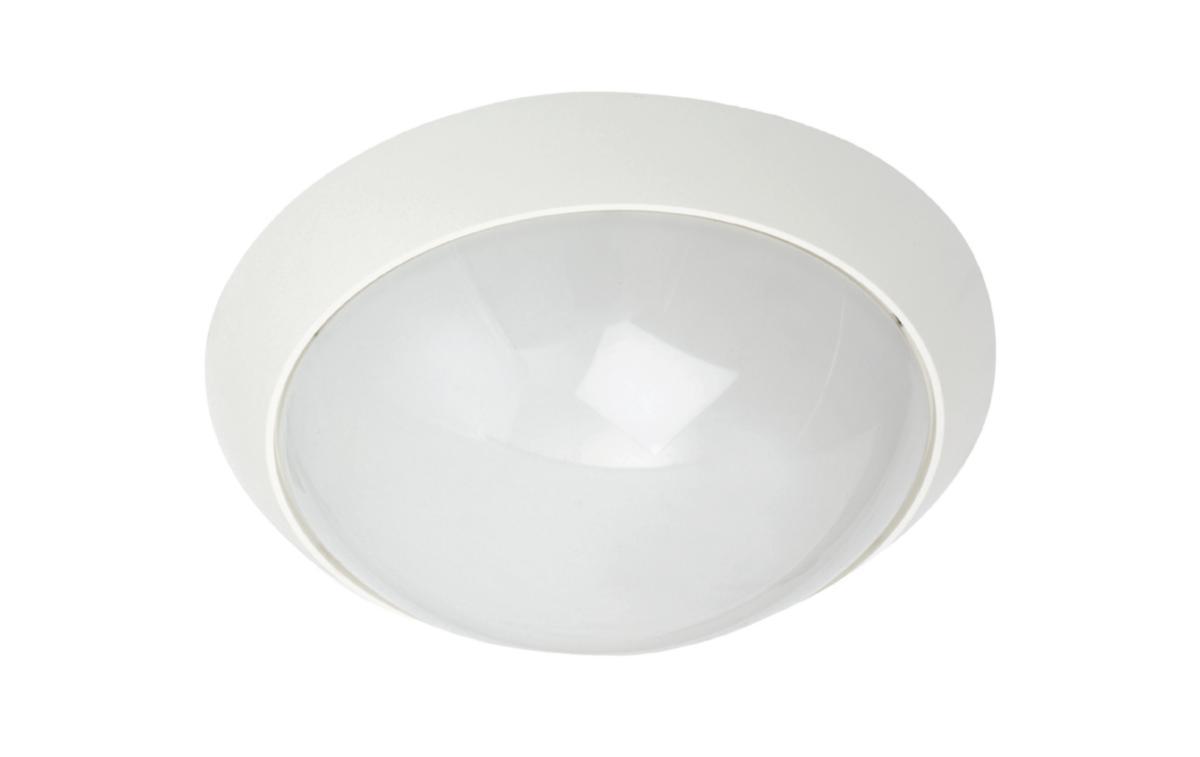

Ceiling and wall luminaire Enok E27, SG-Armaturen
ENOK WHITE 10W LED E27 230V
Article number: Suppl. article no:
7502517
111893
to see price and stock
Universal ceiling / wall fitting in polycarbonate. Quick-connection block, 3x2.5mm2. Supplied including light source.
- Article number: 7502517
- Suppl. article no: 111893
- Ean no: 7021981118938
- Material class QT442A
Technical data
- Packagin Size: 1 ST/8 ST/96 ST/96 ST
- Max. system power: 10 W
- Rated luminous flux according to IEC 62722-2- 1: 500 lm
- Colour temperature: 2700 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Nominal voltage: 230 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Housing material: Plastic
- Material cover: Plastic, opal
- Lamp holder: E27
- Lamp type: LED exchangeable
- Outer diameter: 280 mm
- Width: 280 mm
- Height/depth: 85 mm
- Length: 280 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP21
- Type of control gear: Not required
- With control gear: Yes
- Colour of light: White
- With movement sensor: No
- With air slots: No
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK10
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Built-in length: 0 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Built-in width: 0 mm
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Luminaire efficacy: 50 lm/W
- Suitable for lamp power: 10 W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Emergency power supply integrated: No
- Surface protection housing: Other
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: No
- IFTTT support available: No
- Exchangeable control gear: No
- Rated life time L90/B50 at 25 °C: 0 h
- Built-in diameter: 0 mm
- Suitable for wall mounting: Yes
- Built-in height/depth: 0 mm
- Connection type: Other
- Rated life time L90/B10 at 25 °C: 0 h
- Colour temperature: 2700 K
- Rated life time L80/B10 at 25 °C: 0 h
- Lamp power: 10 W
- Diameter: 350 mm
- Lowest energy efficiency class of the exchangeable lamp: A+
- Suitable for wall mounting: Yes
- Connection: 3x2.5 mm²
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Colour cover: White
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Dimming depending on control gear: No
