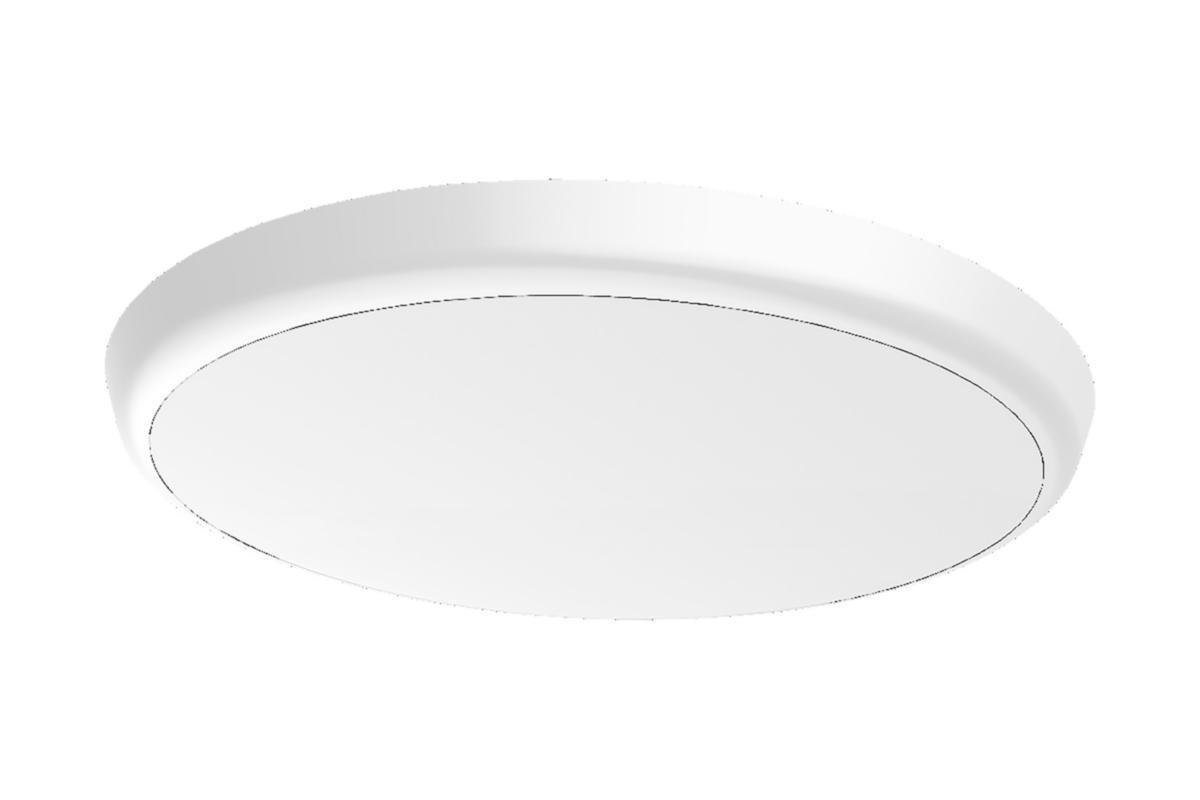

Ceiling and wall plafond Athena LED, Westal
PLAFOND ATHENA LED 18W
Article number: Suppl. article no:
7502065
186-136
to see price and stock
Ceiling and wall plafond manufactured in plastic with opal anti-glare protection.
Equipped with a dimmable LED unit. Origa plafonds are also equipped with sensors that can be adjusted as desired.
Equipped with a dimmable LED unit. Origa plafonds are also equipped with sensors that can be adjusted as desired.
- Article number: 7502065
- Suppl. article no: 186-136
- Ean no: 7393047186367
- Material class QT7001
Technical data
- Packagin Size: 1 ST/10 ST/40 ST/100 ST
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1530 lm
- Colour temperature: 3000-3200 K
- Housing colour: White
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Beam angle: Extreme wide beam >80°
- Housing material: Plastic
- Material cover: Plastic, opal
- Lamp type: LED not exchangeable
- Outer diameter: 300 mm
- Width: 300 mm
- Height/depth: 40 mm
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP54
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- With movement sensor: No
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK10
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Conductor cross section: 2.5 mm²
- Luminaire efficacy: 85 lm/W
- Suitable for light line configuration: No
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Type of wiring: Suitable for loop-through wiring
- Suitable for wall mounting: Yes
- REACH Date: 2021-12-08
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
