Airam

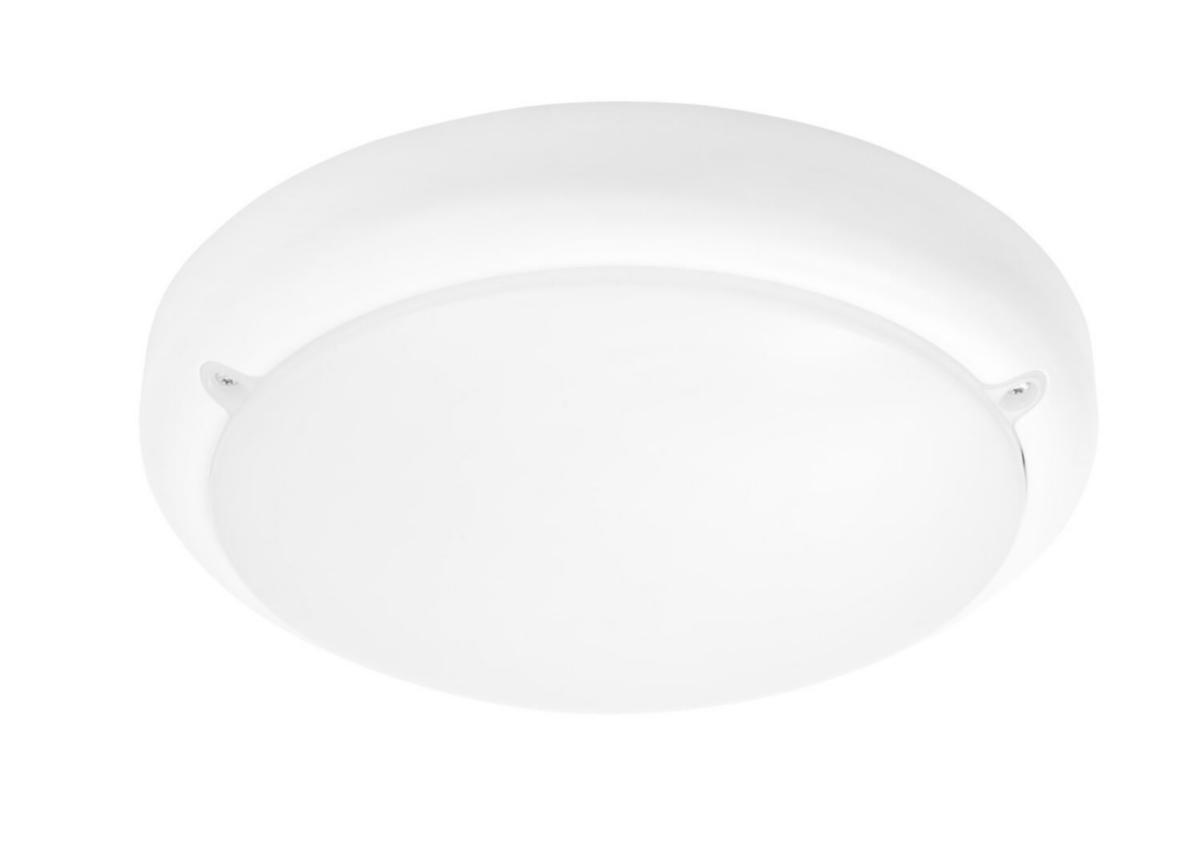

Ceiling and wall luminaire Sono
Plafond Sono 15W 835
Article number: Suppl. article no:
7027184
4146956
to see price and stock
Sono is a high-quality ceiling light designed for demanding conditions where, in addition to a long service life, physical durability is also required. The luminaire is suitable for external walls, carports, stairwells as well as corridors and common areas. The sensor models enable very versatile installations. Sono can withstand low temperatures - its frost resistance is -30 °C The efficiency of the luminaire has been improved with more energy-efficient LEDs and a renewed driver with adjustable power in two positions a fresh look.
MS = Master-slave function where you can connect up to 3 Sono fixtures as slaves to a master fixture.
PIR = Passive infrared sensor
RA = Radar, Motion sensor
RA/10-100 = In Radar 10-100 models, the illumination level decreases to approximately 10% for the specified time after the selected delay when no motion is detected, and it turns on to 100% brightness when motion is detected.
MS = Master-slave function where you can connect up to 3 Sono fixtures as slaves to a master fixture.
PIR = Passive infrared sensor
RA = Radar, Motion sensor
RA/10-100 = In Radar 10-100 models, the illumination level decreases to approximately 10% for the specified time after the selected delay when no motion is detected, and it turns on to 100% brightness when motion is detected.
- Article number: 7027184
- Suppl. article no: 4146956
- Ean no: 6435200309174
- Material class QT6900
Technical data
- Max. system power: 15 W
- Colour temperature: 3500 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: Open beam/diffuse
- Housing material: Plastic
- Material cover: Plastic, opal
- Lamp holder: Other
- Lamp type: LED not exchangeable
- Outer diameter: 295 mm
- Width: 295 mm
- Height/depth: 78 mm
- Length: 295 mm
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP54
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour of light: White
- With movement sensor: No
- With air slots: No
- With light sensor: No
- With light source: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: Matt
- Impact strength: IK10
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Suitable for lamp power: 13-15 W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-25 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Total harmonic distortion: 20
- Photobiological safety according to EN 62471: RG0
- Colour consistency (McAdam ellipse): SDCM3
- Emergency power supply integrated: No
- Surface protection housing: Plastic-coated
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Failure rate at median useful life of 75,000 h at 25 °C ambient (tq): 10 %
- Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 5 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 5 %
- Flickering value Pst LM: 1
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 35
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 60
- IFTTT support available: No
- Stroboscope effect value SVM: 0.4
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Nominal current: 160-200 mA
- Connection type: Push-in clamp
- REACH Date: 2024-07-01
- REACH Information obligation: No
