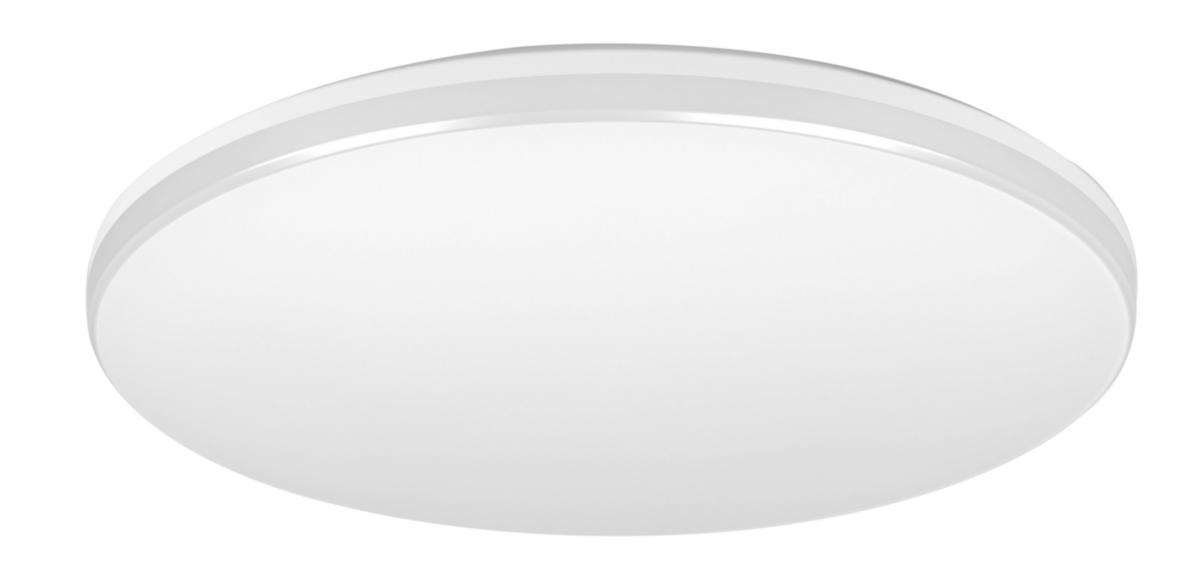

Ceiling luminaire Athena II HF flex
Ceiling Athena II HF Flex 12W
Article number: Suppl. article no:
7026954
04-3-04
to see price and stock
Thin ceiling and wall ceiling made of polycarbonate with opal anti-glare protection, equipped with LED unit with DIP switch for setting color temperature. The luminaire is controlled with a built-in microwave sensor that can be set as needed using DIP switches on the drive. There, functions such as sensitivity, time for background light and whether the luminaire should light up when there is movement when it is bright outside can be regulated. At maximum detection, the distance is about 5m. Comes with quick connection terminal block and double knockouts for external cable and forwarding.
- Article number: 7026954
- Suppl. article no: 04-3-04
- Ean no: 07393047043042
- Material class QT7000
Technical data
- Packagin Size: 1 PCS/10 PCS
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1444 lm
- Colour temperature: 2700-4000 K
- Housing colour: White
- Dimmable: No
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Height/depth: 42 mm
- With movement sensor: Yes
- Degree of protection (IP): IP44
- Impact strength: IK10
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Plastic
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-50 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Material cover: Plastic, opal
- Luminous flux adjustable: Positions
- Lamp type: LED exchangeable
- Suitable for built-in mounting: No
- Suitable for suspended mounting: No
- Outer diameter: 250 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: Yes
- Suitable for ceiling mounting: Yes
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: Yes
- Light distribution: Symmetric
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Light outlet: Direct
- REACH Date: 2024-01-26
- REACH Information obligation: No
