Schneider Electric

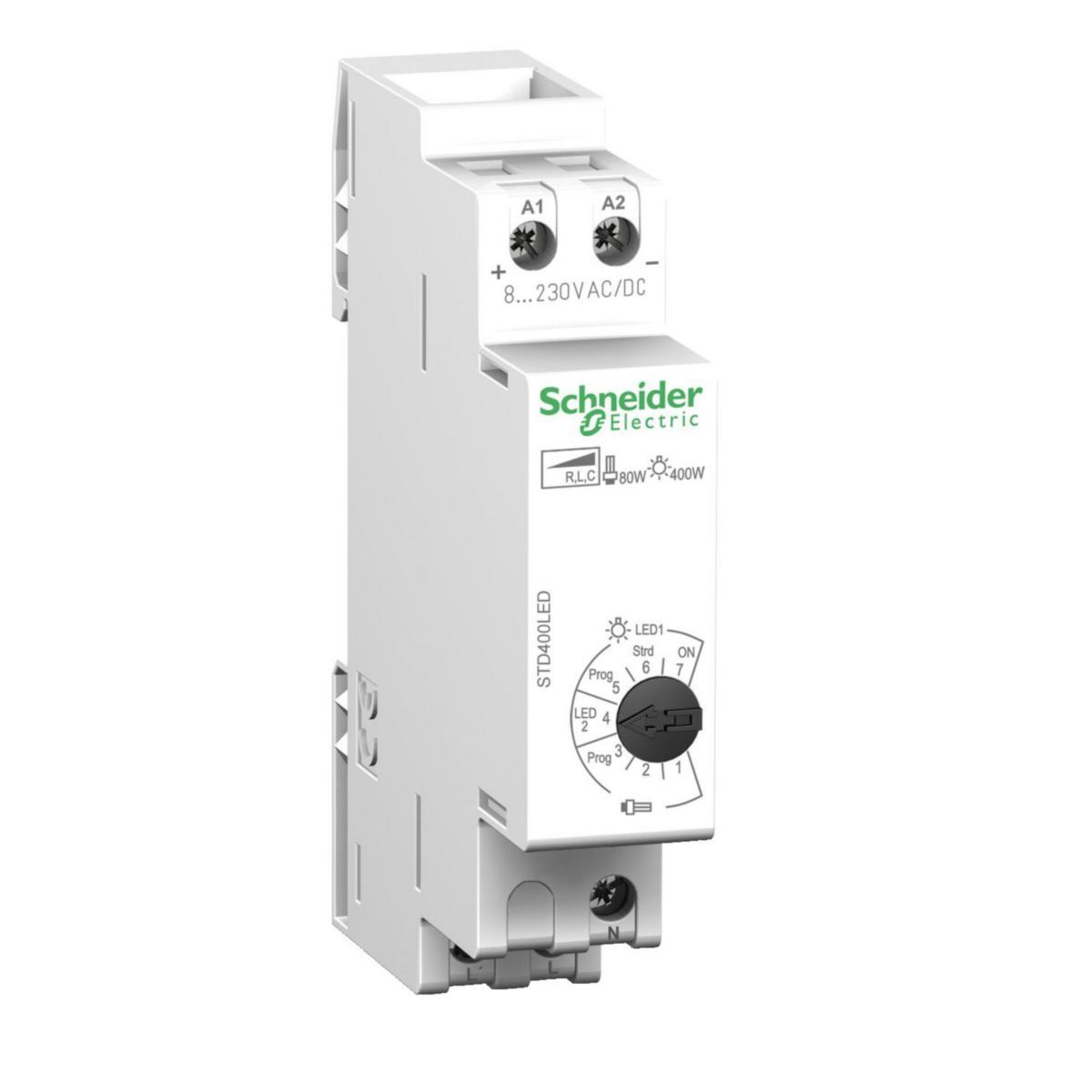

Dimmer DIN STD 400 LED
UNIVERSAL DIN DIMMER STD 400 CCTDD20016
Article number: Suppl. article no:
1360220
CCTDD20016
to see price and stock
DIN dimmer with memory and soft start function. The dimmer is specially adapted for LED lamps. "The many useful functions, including a smooth memory function and a soft start function, give you and your customers practical benefits. No minimum load is required, which means that the dimmers are particularly well suited for controlling LED lights. Other light sources can also be dimmed without problems. In addition, the advanced version STD400LED + (CCTDD20017) has additional practical features, including a wake-up and snooze function, various lighting modes and a stair switching function "
- Article number: 1360220
- Suppl. article no: CCTDD20016
- Ean no: 3606480769245
- Material class QH220A
Technical data
- Packagin Size: 1 ST/86 ST/86 ST
- Width in number of modular spacings: 1
- Number of dimmer functions: 1
- Dim capacity per channel: 400 W
- Module expansion up to max. number of channels: 0
- Number of channels: 1
- Number of universal dim channels: 1
- Control voltage 1: 230 V
- Type of control voltage 1: AC
- Control voltage 2: 0 V
- Rated voltage: 230 V
- Rated current: 2 A
- Astro program: No
- Central function OUT: Yes
- Width: 18 mm
- Height: 85 mm
- Depth: 60 mm
- Function: Dimmer
- Castor function, number of channels: 0
- Group switch: No
- Brightness sensor: 0 lx
- Max. switching current (cos phi = 0.6): 0 A
- Presence simulation: No
- Panic function: No
- Rain sensor: No
- Roller shutter-/sun protection control, number of channels: 0
- Degree of protection (IP): IP20
- Twilight sensor: 0 lx
- Current surge function, number of channels: 0
- Temperature sensor: 0 °C
- Time range: 0 min
- Stair light and forewarn: No
- Weekly program: No
- Wind sensor: 0 m/s
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- Rated frequency: 50 Hz
- REACH Information obligation: Yes
