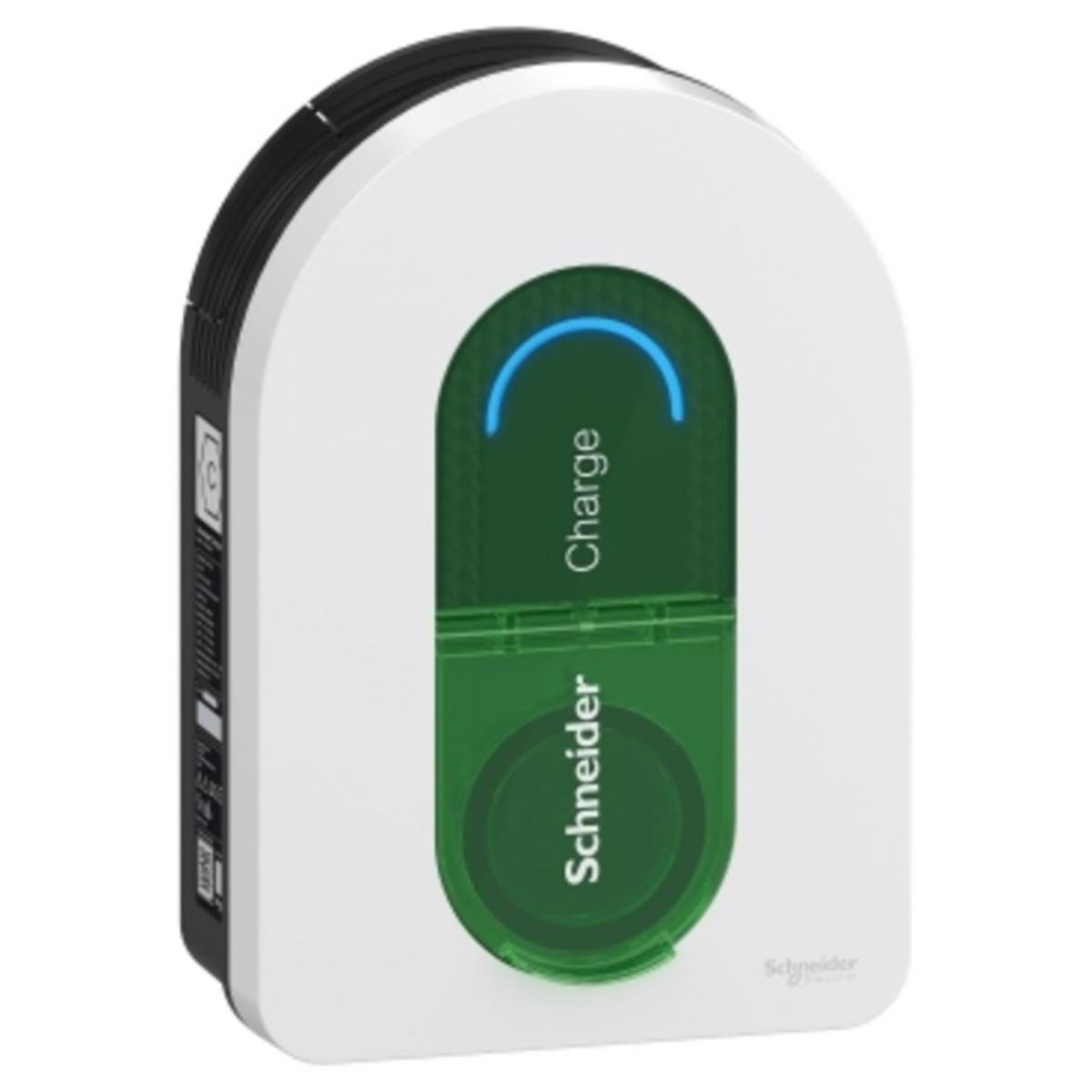

Charging station 7.4-22 kW, 1P/3PN, T2S

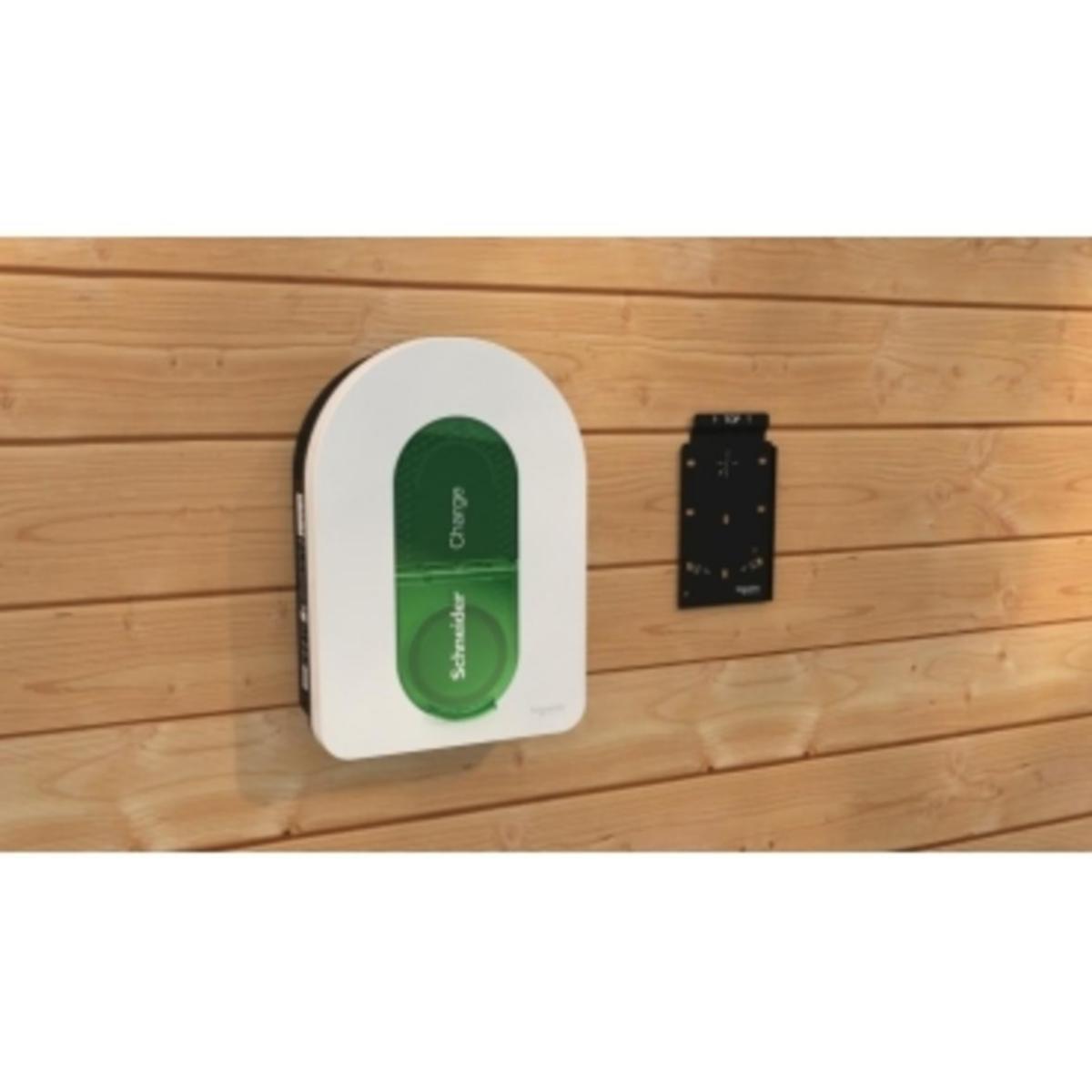

Schneider Charge is a wall-mounted charging station for electric vehicles that meets the IEC61851-1 standard.::The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -35°C to 55°C.::The output type is a T2S socket on the front of the charging station.::Nominal charging power is 22 kW.::The charging station is installed either single-phase (1P+N) three-phase (3P+N). The rated charging current is 16 A/32 A at 230 VAC/400 VAC and 50 Hz/60 Hz mains frequency.::It can be connected with a TN-S, TT or IT earth system.::The charging station is easy to install (no special tools required). It is recommended for private use in the home, installed in the garage or on the wall outside.:: Dimensions are (W) 244mm x (H) 352mm x (D) 117mm. Product weight is 3.2 kg. Color is white (RAL 9003) and green.::An LED indicator on the charging station changes color between red, green and blue to indicate the status directly on the charging station.::Together with the Schneider Charge Load Balancing Unit, it is possible to adjust in real time the maximum the power allocated to the charging vehicle, taking into account the other electricity consumption in the house and the size of the main fuses.::The communication protocol OCPP 1.6 can be used to connect the charging station to third-party cloud services and mobile applications.::For connection to the Internet either WiFi or RJ45 Ethernet cable is used . The IP degree of protection is IP55. The IK degree of protection is IK10. Operating temperature is -30°C to 55°C. Outlet type is 7 m fixed charging cable with T2 connector at the end. The cable starts from the underside in the middle of the charging station. Nominal output power is 11 kW. It is installed 3-phase (3P+N) with 16 A at 400 VAC and 50 Hz/60 Hz. It can be connected with a TN-S, TT or IT earth system. The charging station is easy to install (no special tools required). It is recommended for private use in the home, installed in the garage or on the wall outside The dimensions of the charging station are (W) 244 mm x (H) 352 mm x (D) 107 mm. The weight is 4.4 kg (without cable).
