Garo

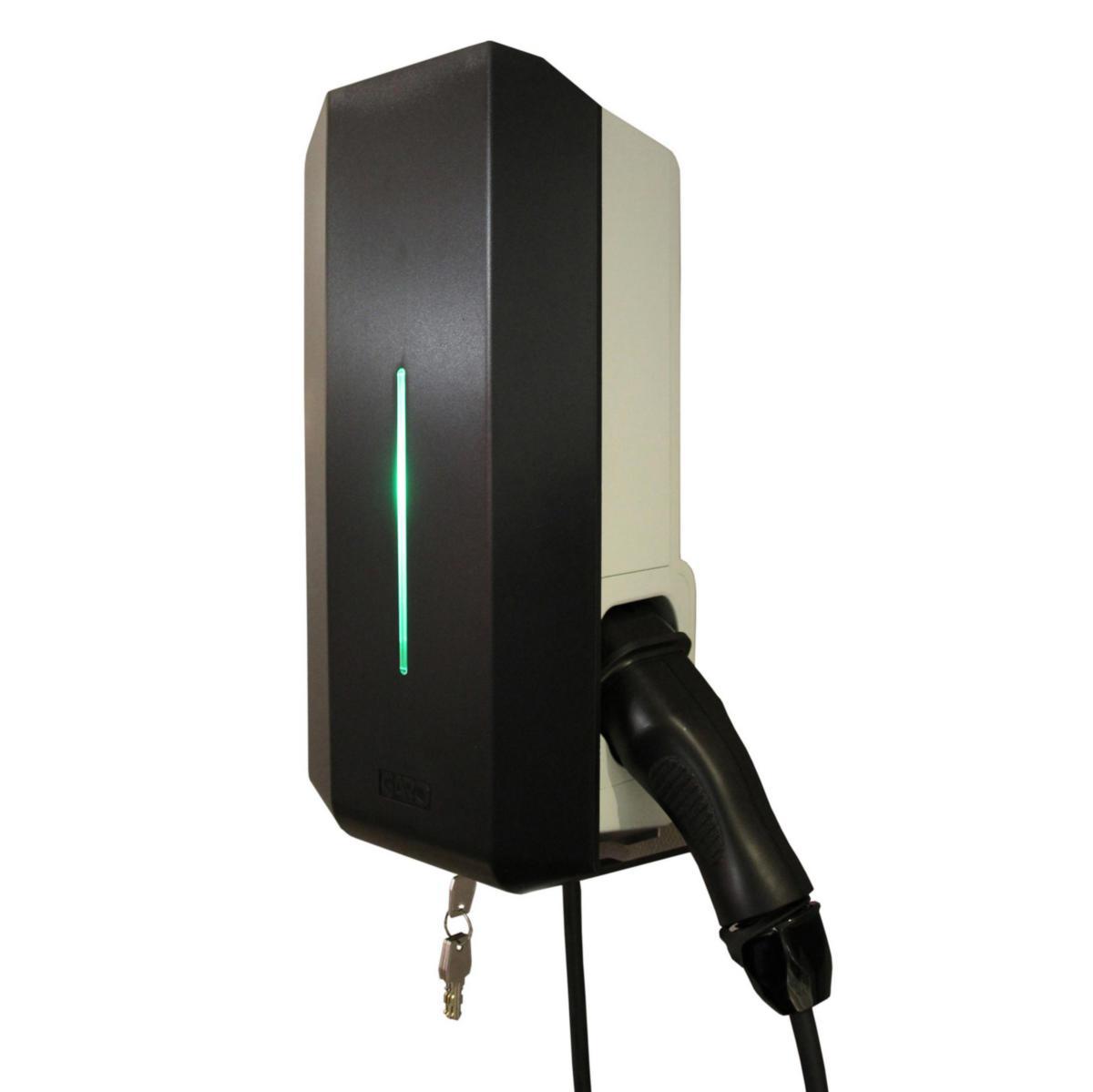

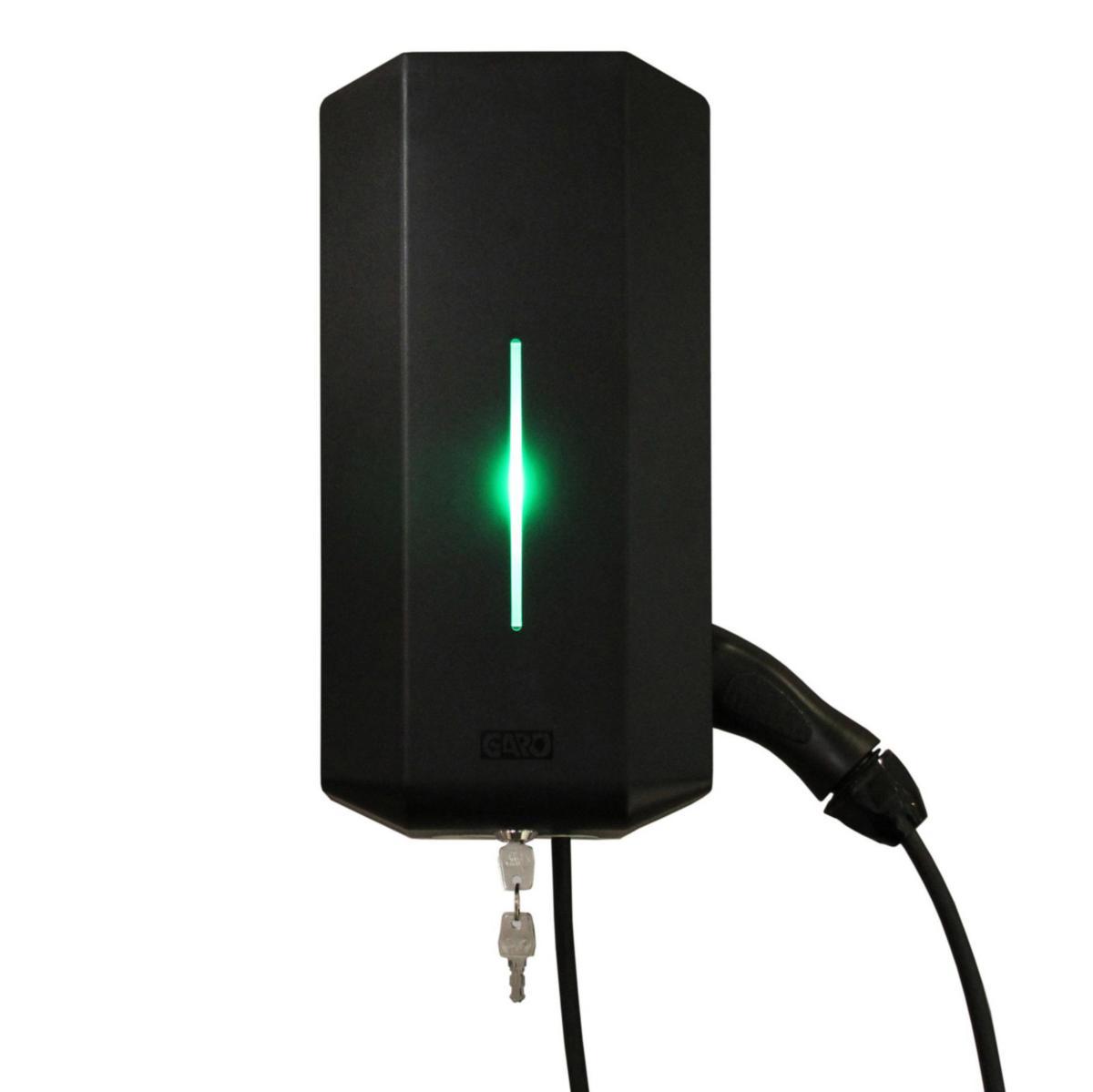

Charging box 3-phase, fixed cable type-2 connector, DC fault protection, meter and Wifi
WALLBOX GLB T2FC7,5M 22KW M W GLB-DCM-W-T222FCL
Article number: Suppl. article no:
2480343
353797
to see price and stock
Charging box GLB type 2 fixed cable 7.5 meters 22kW with DC fault protection, meter and WiFi, for three-phase charging. The charging box has a communication card to activate many smart extra functions. New functions are made available via regular software upgrades.
Can be supplemented with RFID reader. They are always protected against DC fault currents according to international standards. The charging box is prepared for dynamic load balancing in several levels, it automatically reduces the vehicle's charging current and thus protects the main fuse. Complete with GARO Modbus 1-phase / 3-phase energy meter in the control panel for activation.
Can be supplemented with RFID reader. They are always protected against DC fault currents according to international standards. The charging box is prepared for dynamic load balancing in several levels, it automatically reduces the vehicle's charging current and thus protects the main fuse. Complete with GARO Modbus 1-phase / 3-phase energy meter in the control panel for activation.
- Article number: 2480343
- Suppl. article no: 353797
- Ean no: 7331185209593
- Material class QJ700B
Technical data
- Packagin Size: 1 ST/8 ST/8 ST
- Max. power per charging point: 22 kW
- Number of socket outlets Type 2: 0
- Number of vehicle connectors Type 1: 0
- Number of vehicle connectors Type 2: 1
- Number of vehicle connectors Type 1 CCS: 0
- Number of vehicle connectors Type 2 CCS: 0
- Number of vehicle connectors CHAdeMO: 0
- Length of charging cable: 7.5 m
- With energy meter: Yes
- With communication interface: No
- Number of charging units: 1
- Number of earth leakage circuit breakers type A: 0
- Number of earth leakage circuit breakers type B: 0
- Nominal connection power: 22 kW
- Number of socket outlets Type 3: 0
- Width: 205 mm
- Depth: 124 mm
- Height: 422 mm
- Housing material: Plastic
- Degree of protection (IP): IP44
- Impact strength: IK08
- Mounting method: Wall mounting
- With house connection box: No
- With miniature circuit breaker (MCB): No
- With display: No
- Number of CEE socket outlets (IEC 60309): 0
- Number of vehicle connectors GB AC: 0
- Number of vehicle connectors GB DC: 0
- Number of household socket outlets: 0
- Number of socket outlets GB: 0
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Installation side connection model: 3-phase
- REACH Date: 2021-06-15
- REACH Information obligation: No
- With load management: Yes
- Function access control: Yes
