Garo

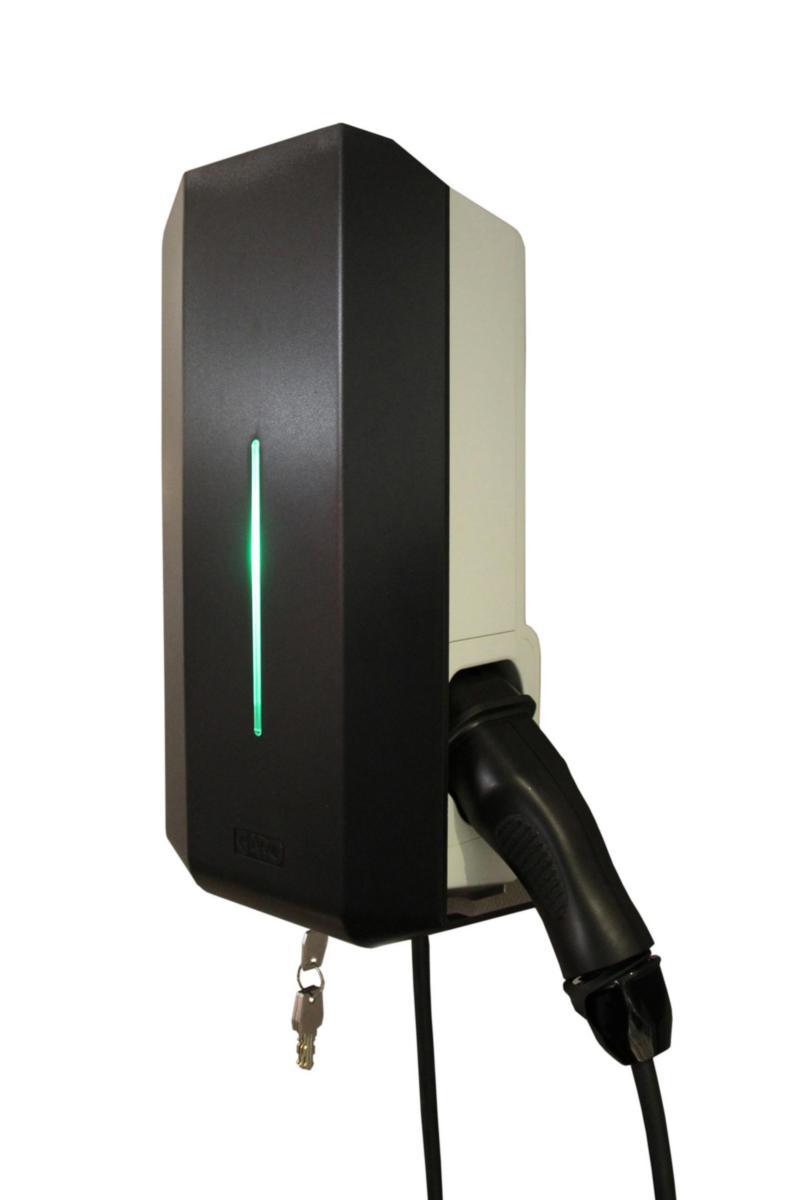

Charging box 3-phase, fixed cable type-2 connector, with meter
WALLBOX T2FC 22KW DC WM GLBDCM-T222FC
Article number: Suppl. article no:
2449137
353409
Normally in stock
to view the store status of the store
to see price and stock
GARO's charging box is protected against DC fault currents and prepared with dynamic load balancing. DC fault monitoring is a safety feature required when charging EV. Load balancing automatically reduces the vehicle's charging current and minimizes the risk of the main fuse tripping. Complete with GARO Modbus 1-phase / 3-phase energy meter in the power station for activating load balancing. The charging box can be supplemented with RFID readers and / or communication cards etc. to activate many smart extra functions.
- Article number: 2449137
- Suppl. article no: 353409
- Ean no: 7331185183817
- Material class QJ7001
Technical data
- Type: GLBDCM-T222FC
- Product series: GLB
- Max. power per charging point: 22 kW
- Number of socket outlets Type 2: 0
- Number of vehicle connectors Type 1: 0
- Number of vehicle connectors Type 2: 1
- Number of vehicle connectors Type 1 CCS: 0
- Number of vehicle connectors Type 2 CCS: 0
- Number of vehicle connectors CHAdeMO: 0
- Length of charging cable: 5 m
- With energy meter: Yes
- With communication interface: No
- Number of charging units: 1
- Number of earth leakage circuit breakers type A: 0
- Number of earth leakage circuit breakers type B: 0
- Nominal connection power: 22 kW
- Number of socket outlets Type 3: 0
- Width: 205 mm
- Depth: 124 mm
- Height: 422 mm
- Housing material: Plastic
- Degree of protection (IP): IP44
- Impact strength: IK08
- Mounting method: Wall mounting
- With house connection box: No
- With miniature circuit breaker (MCB): No
- With display: No
- Number of CEE socket outlets (IEC 60309): 0
- Number of vehicle connectors GB AC: 0
- Number of vehicle connectors GB DC: 0
- Number of household socket outlets: 0
- Number of socket outlets GB: 0
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Installation side connection model: 3-phase
- REACH Date: 2021-06-15
- REACH Information obligation: No
- With load management: Yes
- Function access control: Yes
