Pretec
Charging Pole Ø60 Matt black
Charging Pole Ø60 Matt black
Artikelnummer: Lev. artikelnr:
2700862
7076011004
för att se saldo och pris

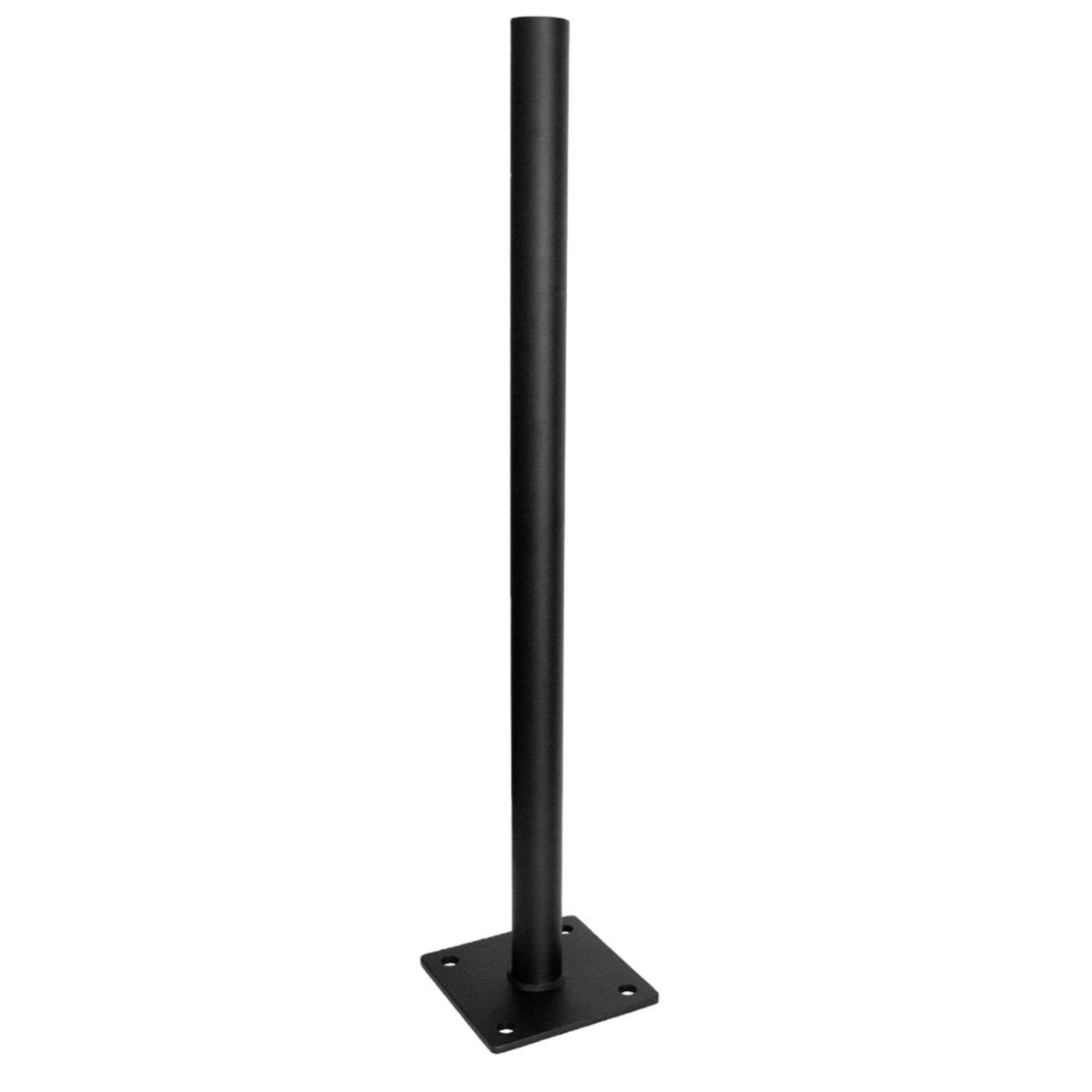

Pretec's Charging Pole has been developed to be easily mounted on a buried Pretec steel foundation.
The charging post is made of a Ø60mm steel tube and has a welded-on foot plate with a hole pattern Ø24mm cc 160mm. Height 1100mm.
The surface treatment in matte black has three stages for optimal rust protection.
Step 1:
High-alloy zinc that provides good corrosion protection. Excellent protection under paint as it prevents paint from leaking if the posts are damaged.
Step 2:
Phosphating + ED painting. A rust protection varnish with very good corrosion protection and is used as a primer before powder coating. Exceptional penetration ability in tight spaces, which means that even the inside of the pipe is rust-resistant.
Step 3:
Powder coating, done for visual reasons and as extra wear protection.
The charging post is made of a Ø60mm steel tube and has a welded-on foot plate with a hole pattern Ø24mm cc 160mm. Height 1100mm.
The surface treatment in matte black has three stages for optimal rust protection.
Step 1:
High-alloy zinc that provides good corrosion protection. Excellent protection under paint as it prevents paint from leaking if the posts are damaged.
Step 2:
Phosphating + ED painting. A rust protection varnish with very good corrosion protection and is used as a primer before powder coating. Exceptional penetration ability in tight spaces, which means that even the inside of the pipe is rust-resistant.
Step 3:
Powder coating, done for visual reasons and as extra wear protection.
- Article number: 2700862
- Suppl. article no: 7076011004
- Replaces art.nbr: 69442695
- Material class QJ729B
Teknisk data
- Packagin Size: 1 PCS/24 PCS
- Height: 1100 mm
- Width: 220 mm
- Depth: 220 mm
- Diameter: 60 mm
- Colour: Black
- RAL-number: 9005
- Mounting method: Screwing
- Material: Steel
- Surface protection: Powder coating
- Shape: Round
- Pre-wired: No
- With connection clamps: No
- With lighting: No
- With integrated C-rail: No
- With integrated DIN rail (top hat rail): No
- With integrated connection point for potential equalization: No
- With lockable access door: No
- With twilight switch: No
- REACH Date: 2024-05-03
- REACH Information obligation: No
