Charging box holder 270 D

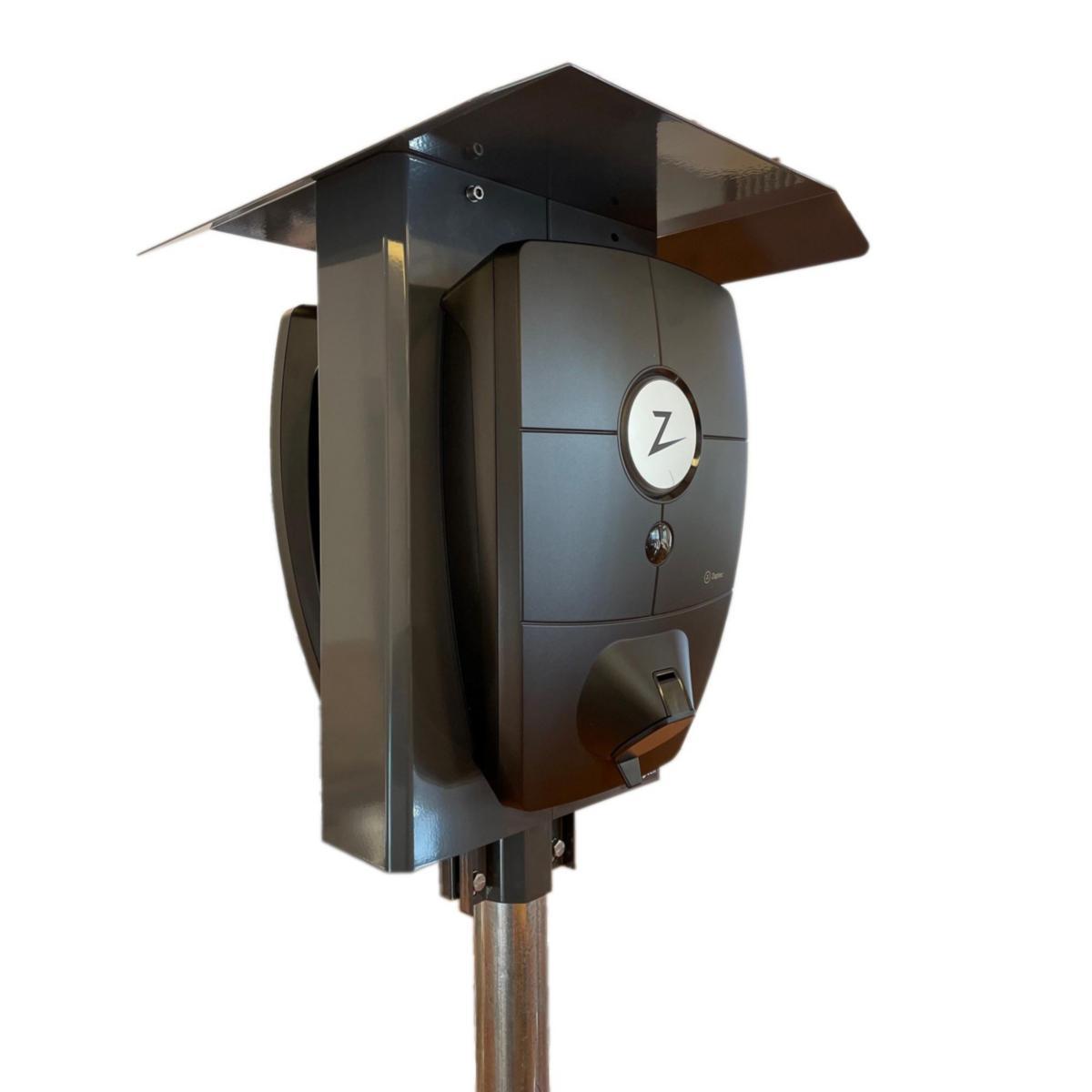

Next Green Polebox is a post bracket for charging boxes, intended for mounting on a 60 mm pipe post. Polebox facilitates, for example, when changing from engine heater location to charging location and can thus be used to replace an engine heater hood. a built-in distribution terminal for up to 2 x 5G25 electrical cable for further connection to the next charging post.From the distribution terminal in Polebox, the respective charging box is then connected with 5G2.5 rubber cable.Polebox can be optionally equipped with DIN rails for mounting an earth fault circuit breaker, Wifi router or 3G / 4G modem and power supply. Everything fits in the box. Polebox is made of Swedish steel and powder coated for the highest quality. Polebox is very easy to install. It can be prepared indoors by mounting charging boxes and pulling the wiring from the spreading terminal. the existing pipe and the hood with the chargers are lifted and hooked up, then it is easy to access to screw the phase t the supply lines in the terminal.

Fits charging boxes with maximum hole pattern 270mm wide and 430mm high. Polebox 270 D fits the following chargers, among others: Elinta Homebox, DEFA UNO, Zaptec PRO
