nVent HOFFMAN

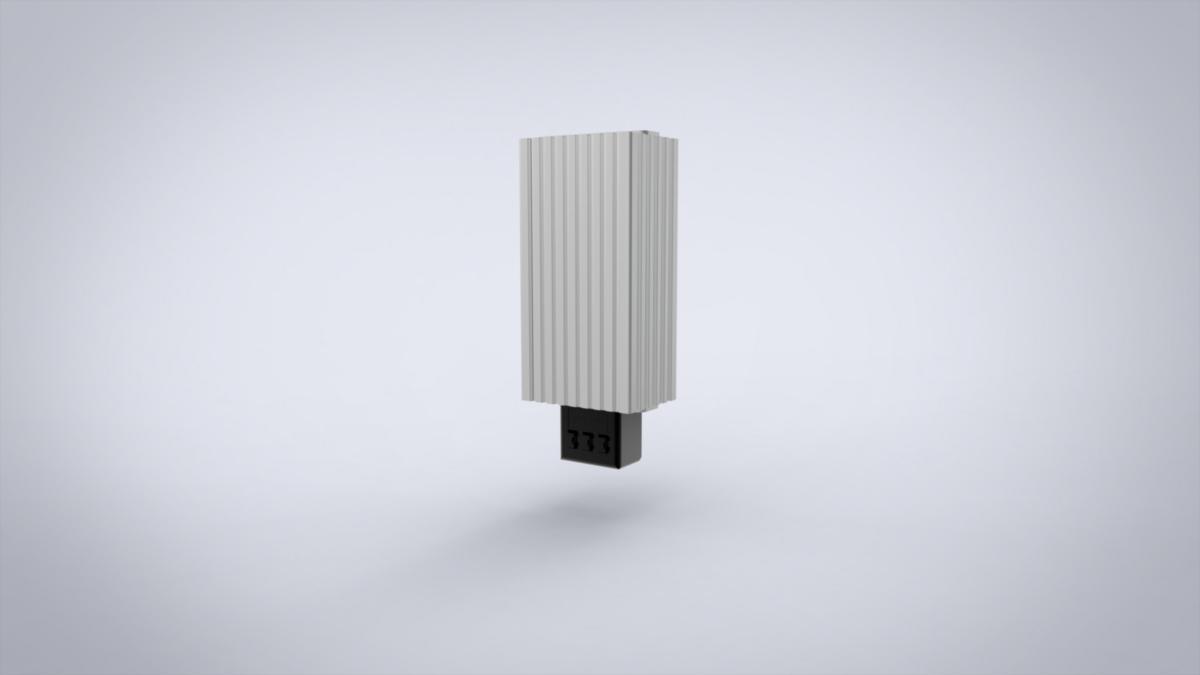

Heating element EHG
HEATER 45W 110-250V AC/DC EHG045
Article number: Suppl. article no:
2519058
EHG045
to see price and stock
The element prevents condensation and prevents corrosion and creep feeds. Profile casing is made of anodised aluminium and is the channel format for optimal heat dissipation. Power consumption and heat emission is controlled by built-in PTC resistor. To achieve the full regulation function within the predetermined temperature values the element must be connected via a thermostat (ETR). Is mounted vertically with the connection facing down on 35mm DIN rail. Is accompanied by safety barrier against vibration as standard. Interference filter is not needed.
- Article number: 2519058
- Suppl. article no: EHG045
- Ean no: 8713574005433
- Material class QM464B
Technical data
- Type: EHG 045
- Rated power: 45 W
- Operating voltage AC 50 Hz: 110-250 V
- Width: 70 mm
- Height: 100 mm
- With room temperature controller: No
- Degree of protection (IP): IP44
- Voltage type: AC
- With fan: No
- Depth: 50 mm
- Operating voltage AC 60 Hz: 110-250 V
- Weight: 0.3 kg
- REACH Date: 2022-01-04
- REACH Information obligation: No
