ABB

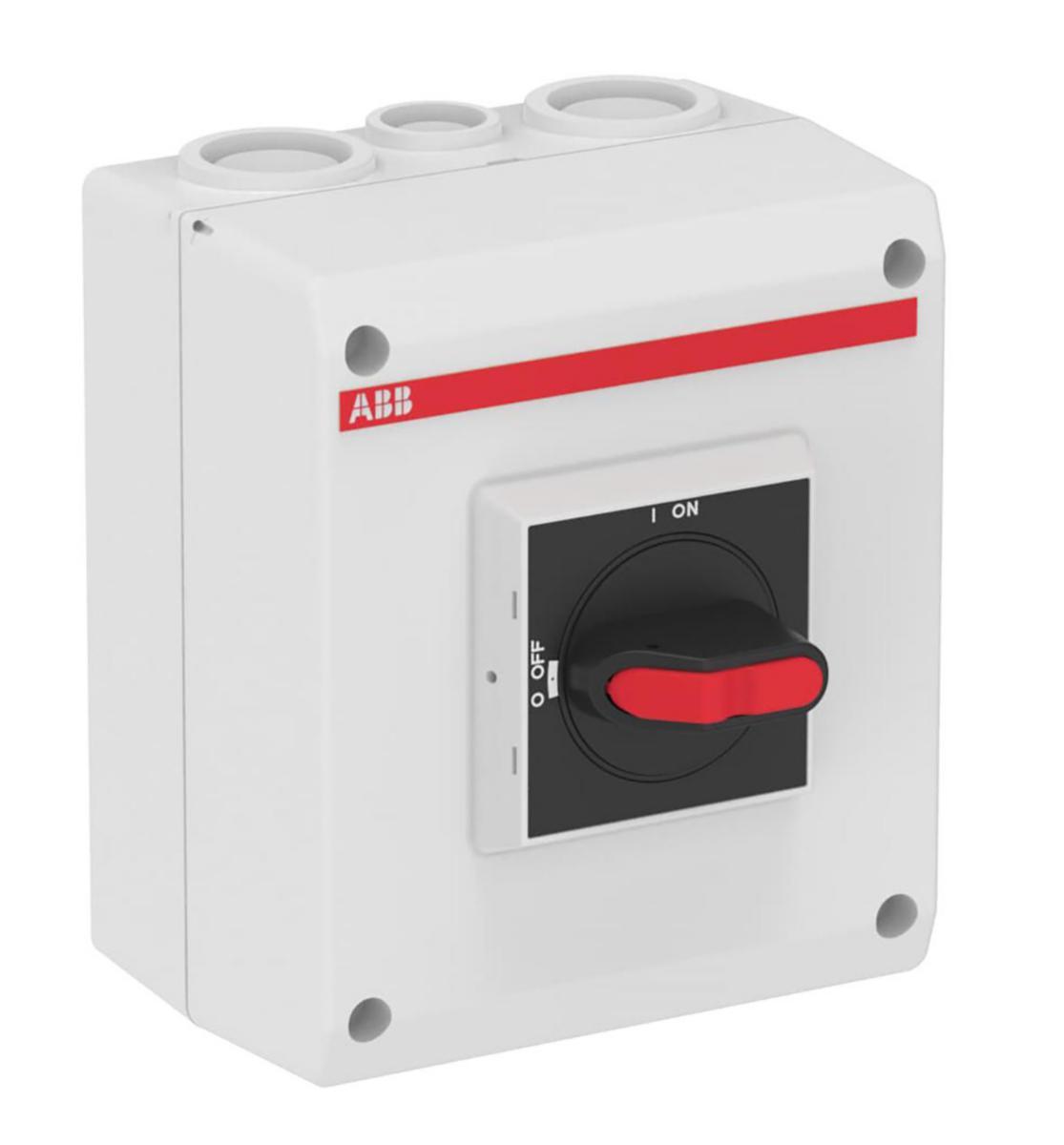

Safety switch EMC plastic 6-pole OTE 16 A
SAFETY SWITCH OTE16T6M
Article number: Suppl. article no:
3140400
1SCA022613R8980
to see price and stock
Plastic-encased safety switch. EMC, 6-pole, 7.5 kW, with black knob and grey assembly. 1 closing auxiliary contact. IP65
- Article number: 3140400
- Suppl. article no: 1SCA022613R8980
- Ean no: 6417019199986
- Material class QO1300
Technical data
- Type: OTE 16T6M
- Design: EMC
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 40 A
- Number of poles: 6
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Rated permanent current at AC-21, 400 V: 32 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Rated operation power at AC-3, 400 V: 7.5 kW
- Number of auxiliary contacts as change-over contact: 0
- Colour control element: Black
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long turning handle
- Version as reversing switch: No
- Rated short-time withstand current lcw: 0.5 kA
- Switching power at 400 V: 7.5 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
