ABB

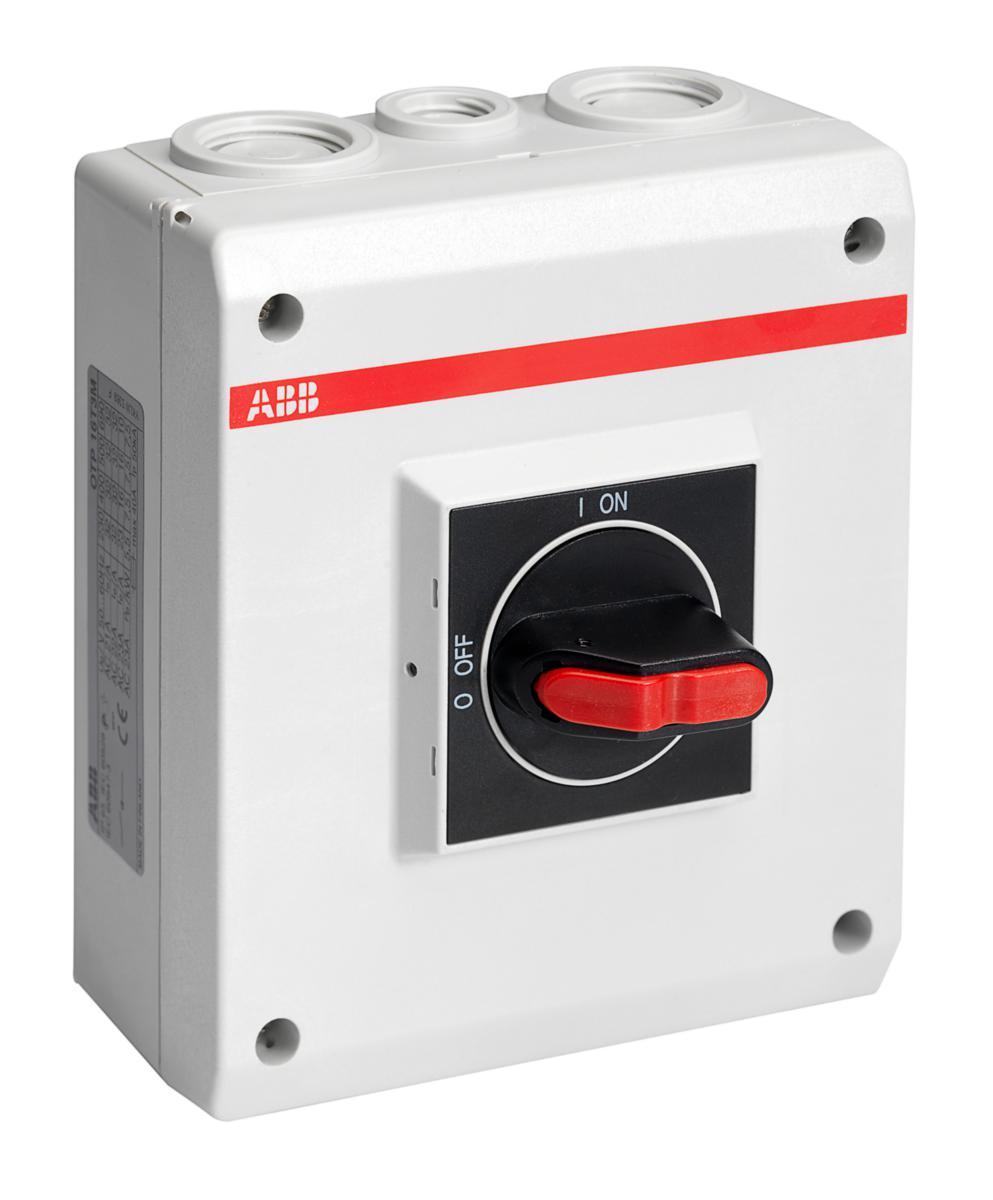

Safety switch OT 3-pole light-grey 16-90 A
SAFETY SWITCH OTP 16T3M OTP16T3M
Article number: Suppl. article no:
3140150
1SCA022400R9910
to see price and stock

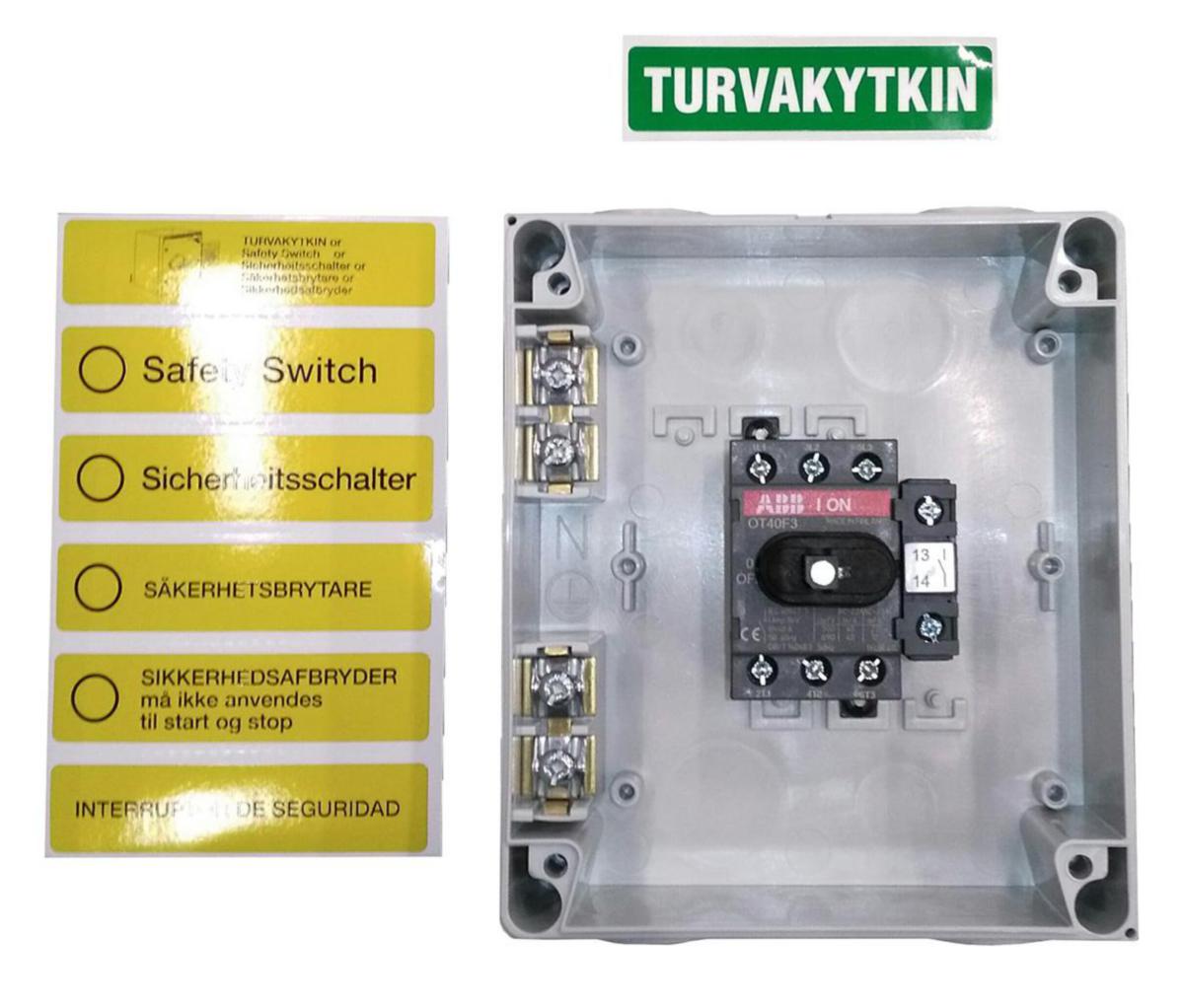

Safety switch with plastic housing 16-1000A, 3-pin
- Article number: 3140150
- Suppl. article no: 1SCA022400R9910
- Ean no: 6417019130842
- Material class QO1300
Technical data
- Type: OTP 16T3M
- Design: 2xM25+M16/2xM25+M16
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 40 A
- Colour: Grey
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Rated permanent current at AC-21, 400 V: 32 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Rated operation power at AC-3, 400 V: 7.5 kW
- Number of auxiliary contacts as change-over contact: 0
- Colour control element: Black
- Width: 130 mm
- Height: 150 mm
- Depth: 60 mm
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long turning handle
- Version as reversing switch: No
- Rated short-time withstand current lcw: 0.5 kA
- Switching power at 400 V: 7.5 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
