ABB

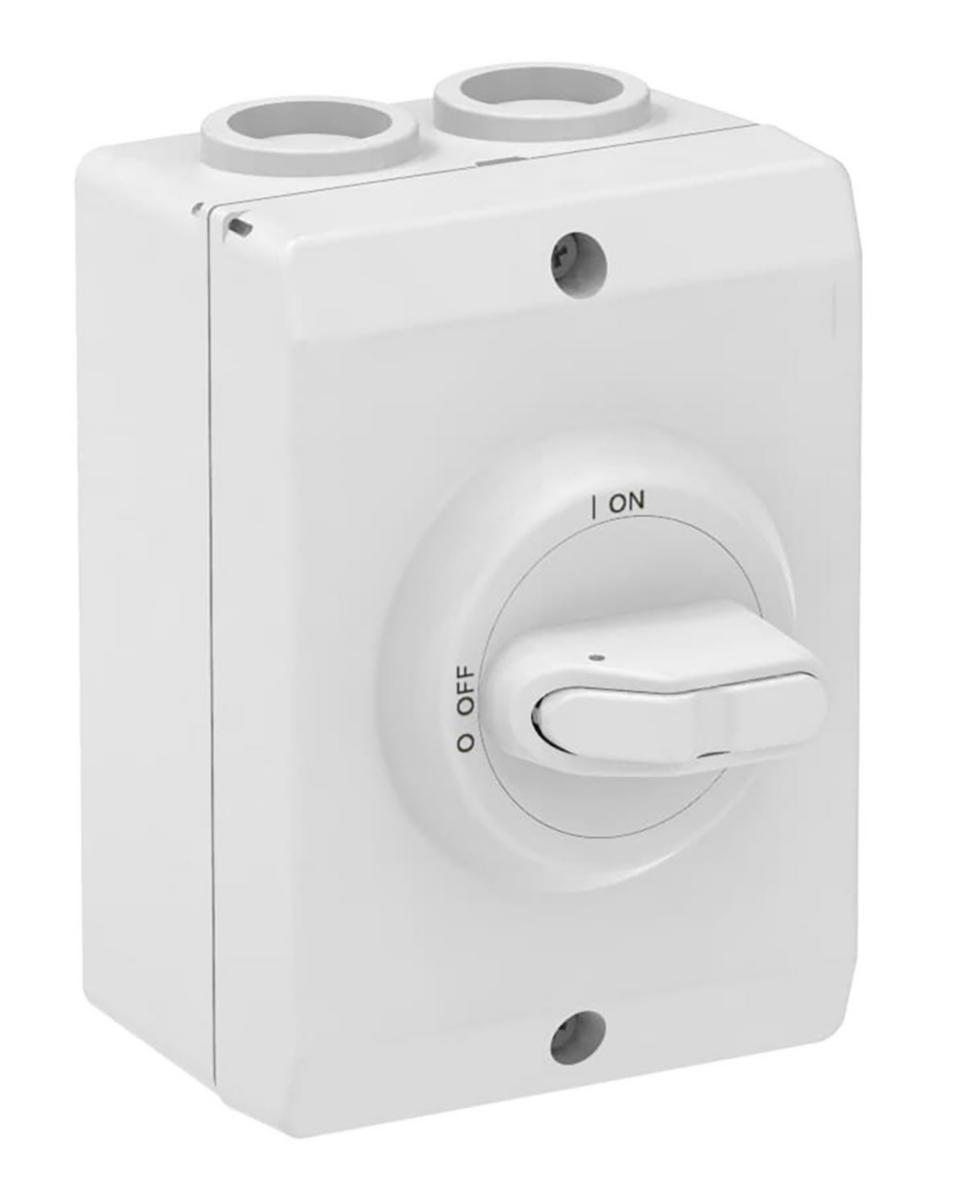

Safety switch OT 3-pole polar white 16 A
SAFETY SWITCH OTP 16H3M1 OTP16H3M1
Article number: Suppl. article no:
3140140
1SCA022432R1090
to see price and stock
Installation model
- Article number: 3140140
- Suppl. article no: 1SCA022432R1090
- Ean no: 6417019136523
- Material class QO1300
Technical data
- Packagin Size: 1 ST/10 ST
- Type: OTP 16H3M1
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 40 A
- Colour: White
- Number of poles: 3
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Rated permanent current at AC-21, 400 V: 32 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Colour control element: White
- Width: 85 mm
- Height: 120 mm
- Depth: 60 mm
- Device construction: Complete device in housing
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long turning handle
- Version as reversing switch: No
- Rated short-time withstand current lcw: 0.5 kA
- Switching power at 400 V: 7.5 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
