Safety switch SAQ
SWITCH DISCONNECTOR SAQ 216 309001
Article number: Suppl. article no:
3134796
309001
to see price and stock

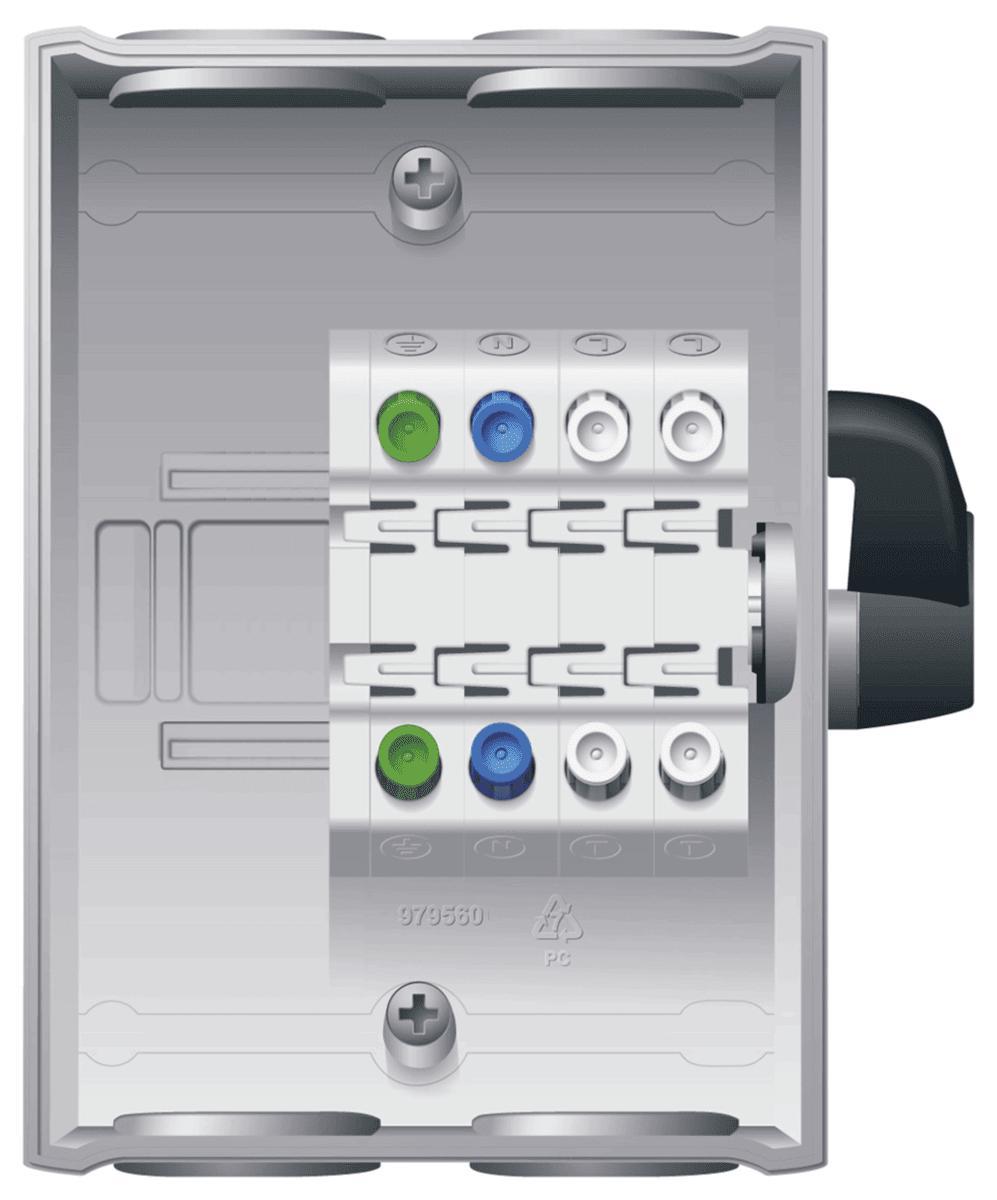

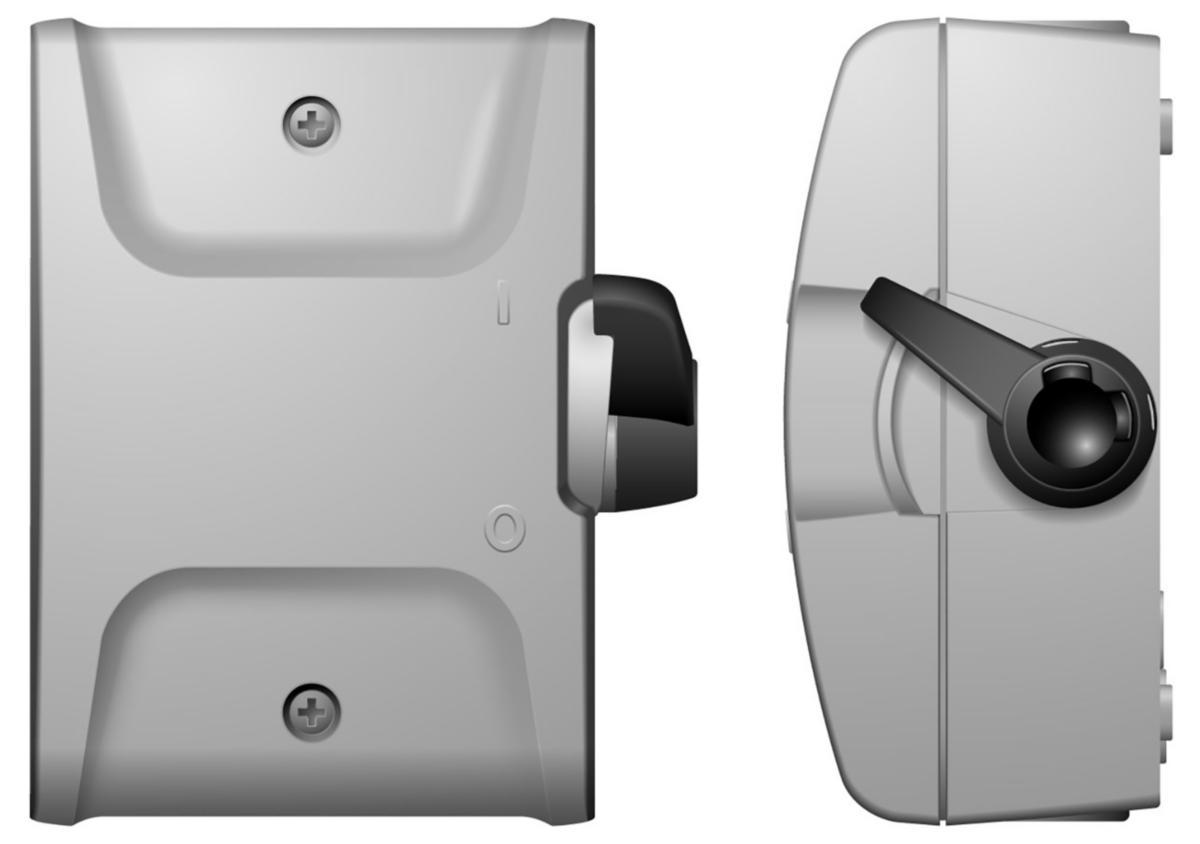

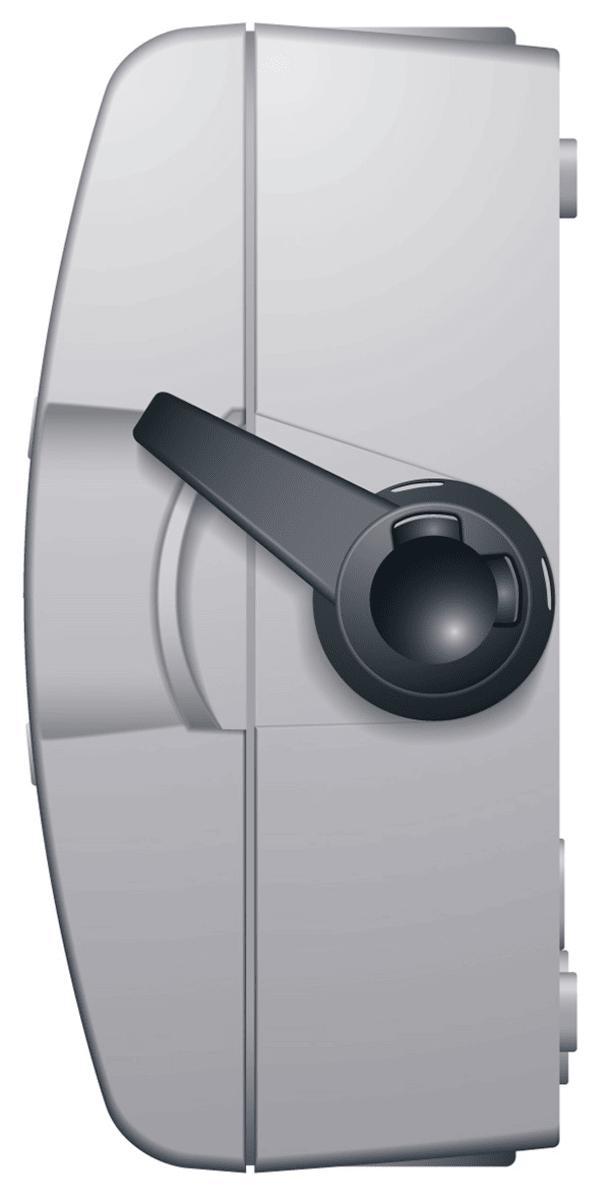

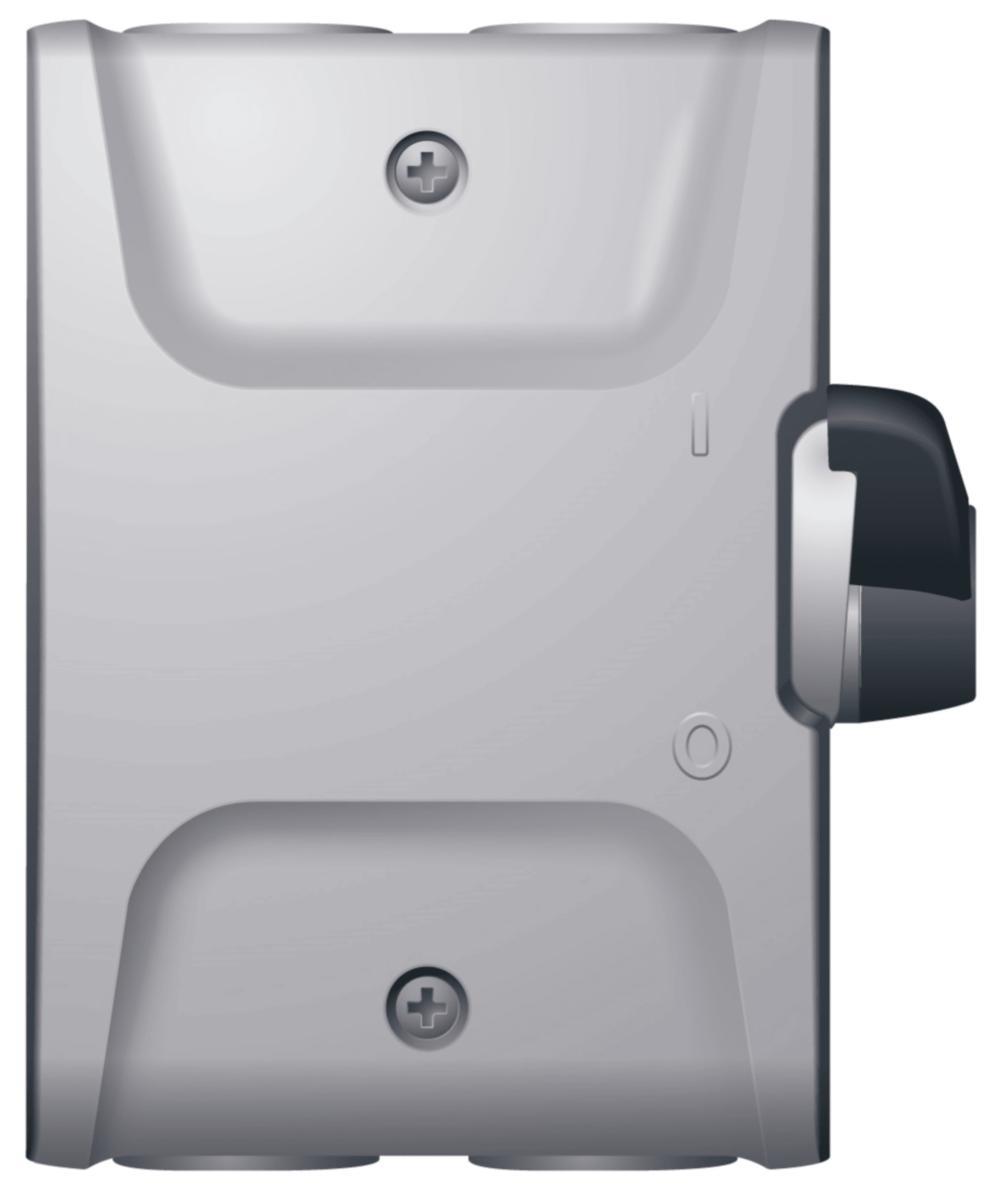

Plastic encapsulated circuit breaker / disconnector IP65. Equipped with side-mounted lockable knob and position indication. Made of polycarbonate with knockout for 4 x cable entry thread M25, input via back piece in soft TPE facilitates tight cable passage.
For the SAQ switches, we recommend throttle nipples / fitting M25.
For the SAQ switches, we recommend throttle nipples / fitting M25.
- Article number: 3134796
- Suppl. article no: 309001
- Ean no: 7394438090010
- Material class QO180B
Technical data
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 16 A
- Number of poles: 2
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 500 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Rated operating voltage: 400-500 V
- Rated operation power at AC-3, 400 V: 7.5 kW
- Number of auxiliary contacts as change-over contact: 0
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Other
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Rocker lever
- Conditioned rated short-circuit current Iq: 10 kA
- REACH Date: 2022-04-12
- REACH Information obligation: No
