Norwesco

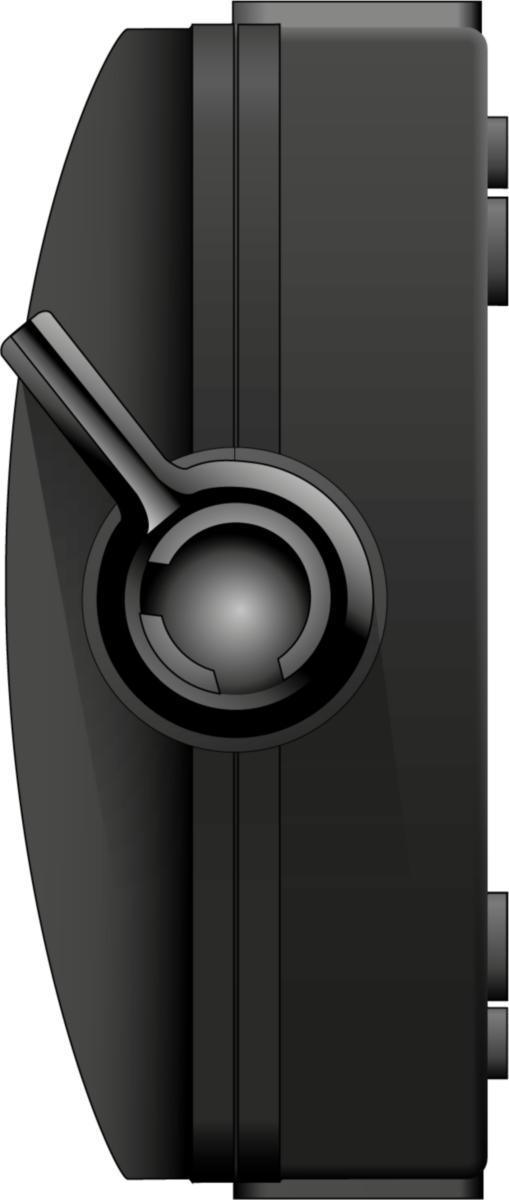

Safety switch SA with built-in tension relief
SWITCH DISCONNECTOR 301026
Article number: Suppl. article no:
3134548
301026
to see price and stock
Safety switch for surface mounting.
Equipped with built-in strain relief for one or two outgoing connection lines and 3 cable entries in the upper and lower edge.
•Ground and neutral rail as standard, only ground rail on 4-pole switches
•Normal signs are supplied as standard
•16A AC23A, 500V
•7.5 kW motor power at 400V
•IP54
•Connection area 6 mm2
• Cable entry membrane 6x16 mm and knockout in the back
Housing colour: White = DV, Gray = DG, Black = DS or Falur red = DR, H=Auxiliary contact, Side operated lockable knob.
E-numbers 3134548-3134551 and 3134599: Self-extinguishing material according to UL 94-5V for agriculture
Equipped with built-in strain relief for one or two outgoing connection lines and 3 cable entries in the upper and lower edge.
•Ground and neutral rail as standard, only ground rail on 4-pole switches
•Normal signs are supplied as standard
•16A AC23A, 500V
•7.5 kW motor power at 400V
•IP54
•Connection area 6 mm2
• Cable entry membrane 6x16 mm and knockout in the back
Housing colour: White = DV, Gray = DG, Black = DS or Falur red = DR, H=Auxiliary contact, Side operated lockable knob.
E-numbers 3134548-3134551 and 3134599: Self-extinguishing material according to UL 94-5V for agriculture
- Article number: 3134548
- Suppl. article no: 301026
- Ean no: 7394438010261
- Material class QO180B
Technical data
- Type: SA 216 DS
- Design: With built-in strain relief
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 16 A
- Colour: Black
- Number of poles: 2
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 500 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP54
- Number of auxiliary contacts as change-over contact: 0
- Colour control element: Black
- Width: 86 mm
- Height: 128 mm
- Depth: 54 mm
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Rocker lever
- Conditioned rated short-circuit current Iq: 10 kA
- REACH Date: 2023-02-07
- REACH Information obligation: No
- Housing material: Plastic
- Housing colour: Black
