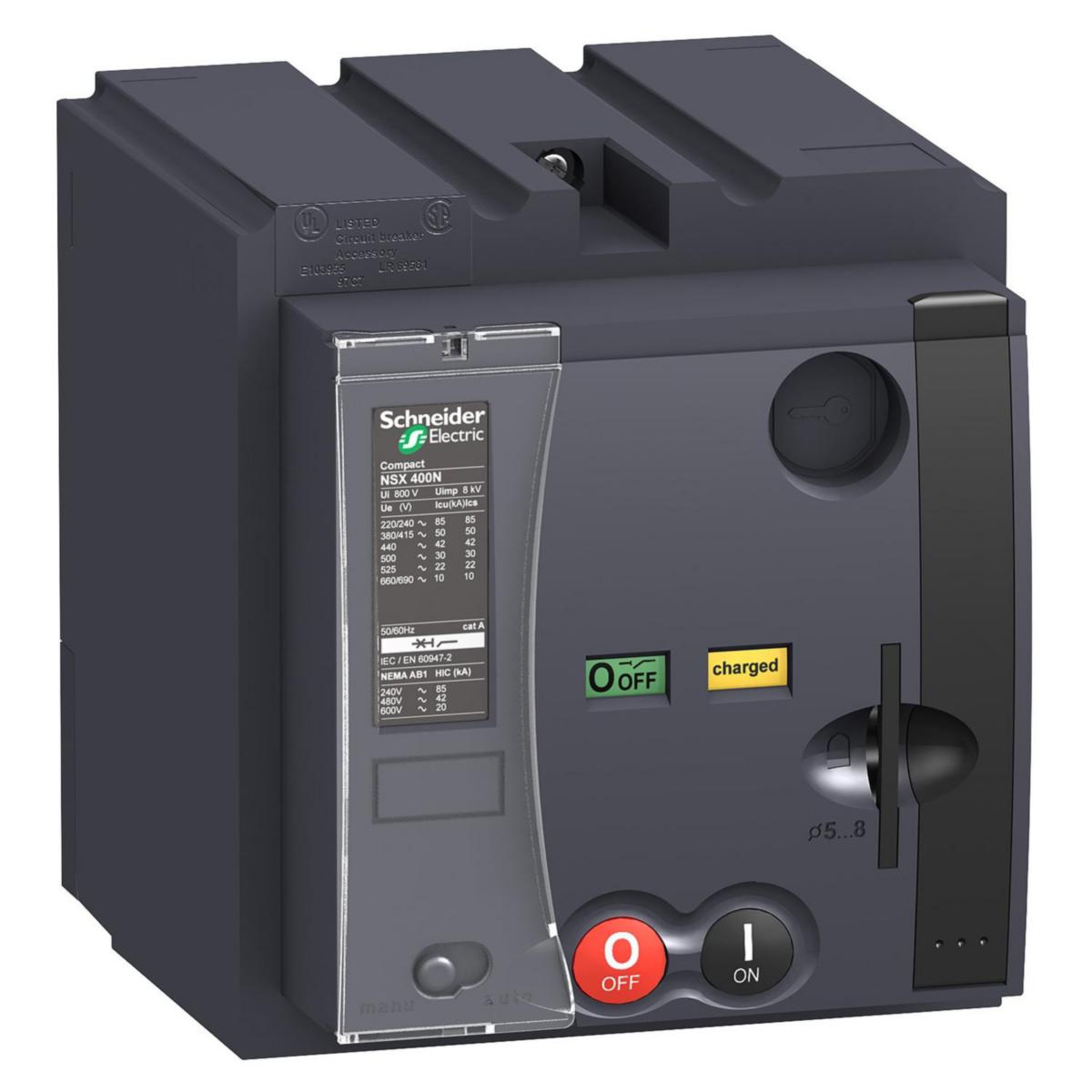

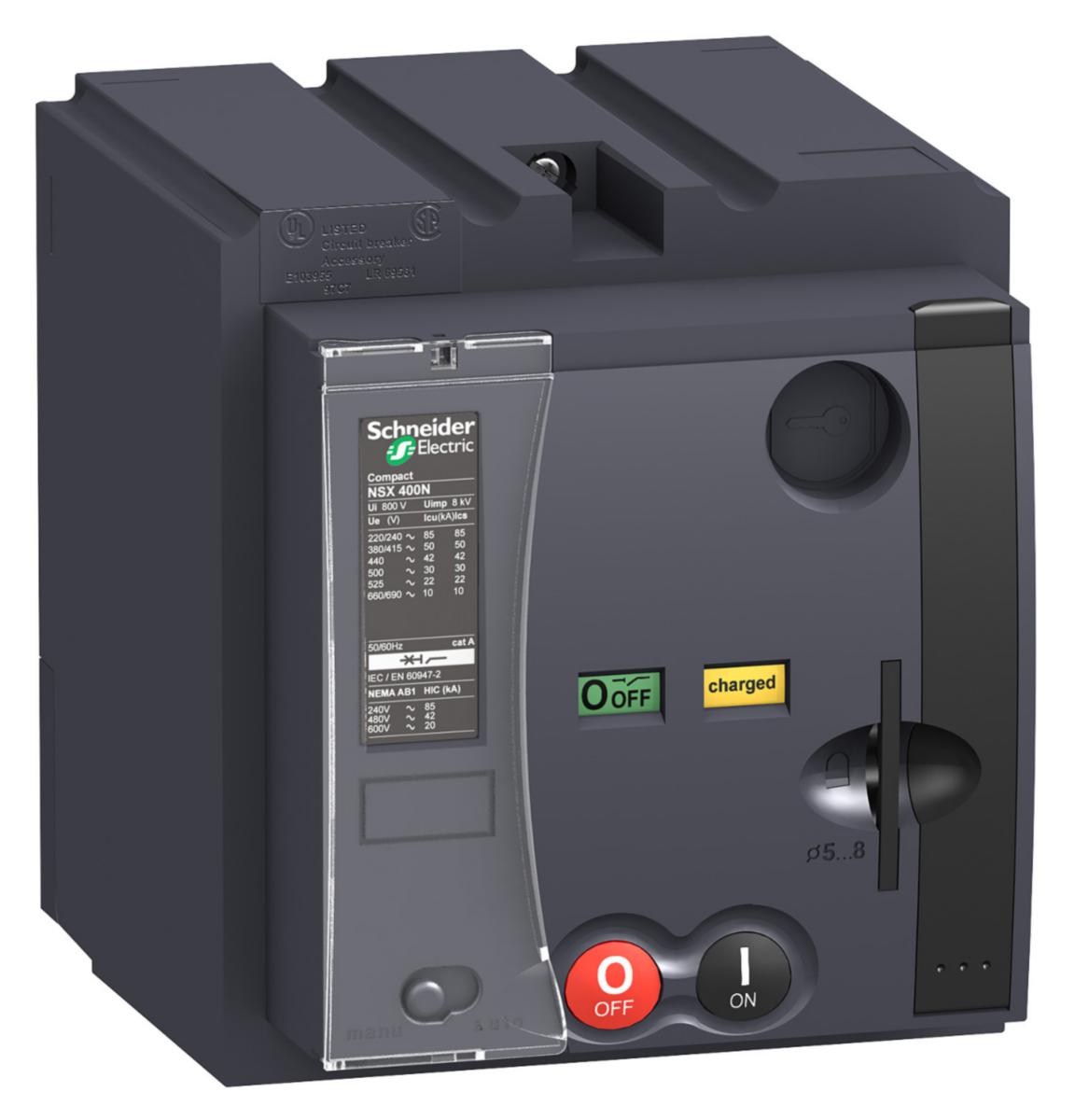

Motor mechanism NS

When Compact NSX is equipped with motor mechanism they exhibit a very high mechanical service life and easy and safe control:
- all of the power switch indications, including the settings in and the indications from the trigger block, are still visible and available
- Reliable position indication is maintained and the power switch can still be locked with padlock
- double-insulated front.
Application areas:
- local motor driven control, centralised control, automatic distribution control
- normal / backup power switch or switching to a spare source to optimize energy costs
- load disconnection and re-connection to optimize energy costs
- synchronization.
Automatic operation:
- connection and disconnection with two pulse signals or continuous signals
- Automatic reset after commanded trip (with MN or MX) with standard connection
- mandatory manual reset after tripping due to electrical failure.
Manual operation:
- manual switching with a front switch, with remote indication option
- connection and disconnection with two push buttons
- Recharge the operating spring by pumping nine times with the manual charging handle
- locking with padlock in off position.
Mounting and connection:
All means of mounting (fixed, plug-in/pull-out) and means of connection are maintained.
The motor mechanism is connected with integral terminals behind the front, with cables up to 2.5 mm².
Technical data, motor mechanism MT100 for MT630
Response time (ms): switch-off < 600, switch-on < 80
Operating frequency (cycles/minute) max. 4
Control voltage (V)
DC: 24/30 - 48/60 - 110/130 - 250
AC 50/60 Hz: 48 (50 Hz) - 110/130 - 220/240 - 380/440
Own consumption
DC (W): switch-off 500, switch-on 500
AC (VA): switch-off 500, switch-on 500
