Smoke Gas Fan ZRS, Systemair
SMOKE EXTRACT FAN ZRS 170 SYSTEMAIR
Article number: Suppl. article no:
6511301
1665
to see price and stock

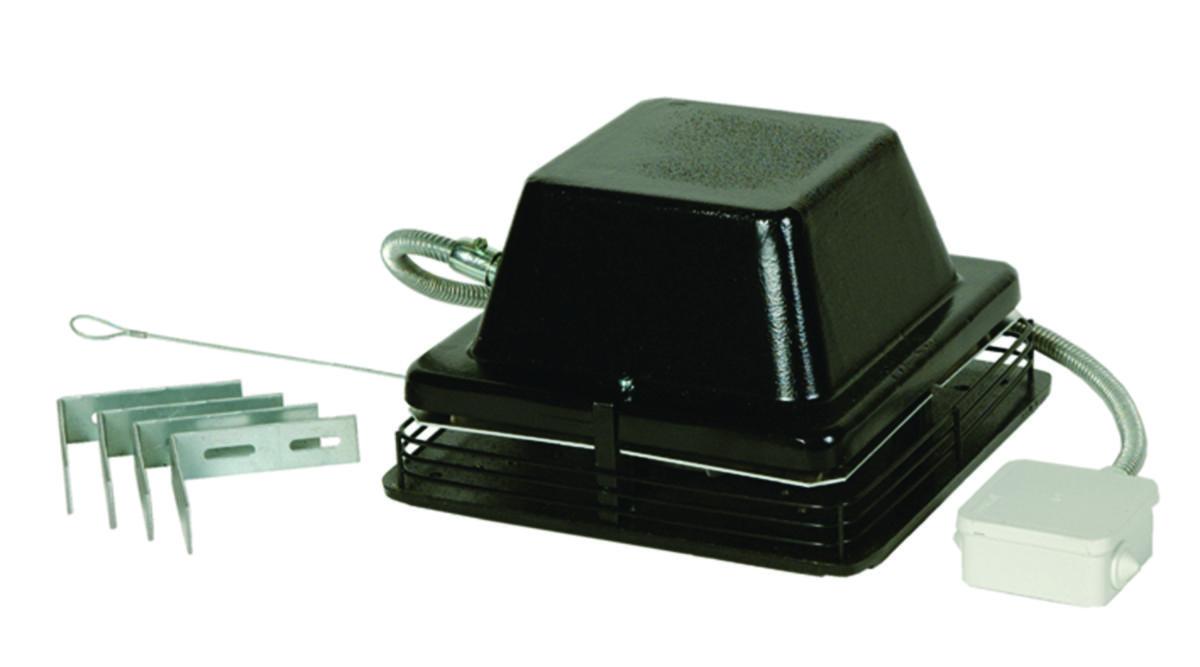

The fan is supplied with 1 m reinforced cable with the junction box. Steel wires are supplied as extra anchoring for fan when sweeping, etc.
The flue gas fans have covers made of cast aluminium alloy, stainless steel fan wheel.
ZRS 170 is suitable for smaller fireplaces with an opening of 0.35 m2, ZRS 180 for fireplaces with an opening of 0.35-0.80 m2.
Improves draught in stoves, ovens and open fireplaces. The flue gas fan is placed on top of the chimney and secured with 4 adjustable pins which are threaded down into the chimney pipe.
NB! min. 100 mm, max 230 mm. No intervention is necessary for the actual chimney.
The fan's low profile makes it a discreetly compact unit.
ZRS170
ZRS180
The flue gas fans have covers made of cast aluminium alloy, stainless steel fan wheel.
ZRS 170 is suitable for smaller fireplaces with an opening of 0.35 m2, ZRS 180 for fireplaces with an opening of 0.35-0.80 m2.
Improves draught in stoves, ovens and open fireplaces. The flue gas fan is placed on top of the chimney and secured with 4 adjustable pins which are threaded down into the chimney pipe.
NB! min. 100 mm, max 230 mm. No intervention is necessary for the actual chimney.
The fan's low profile makes it a discreetly compact unit.
ZRS170
ZRS180
- Article number: 6511301
- Suppl. article no: 1665
- Material class PNL43A
Technical data
- Max air flow: 86.1 l/s
- Nominal current: 0.19 A
- Max. electric power input: 0.0429 kW
- Nominal voltage: 230 V
- Voltage feed: 230 V
