Cejn

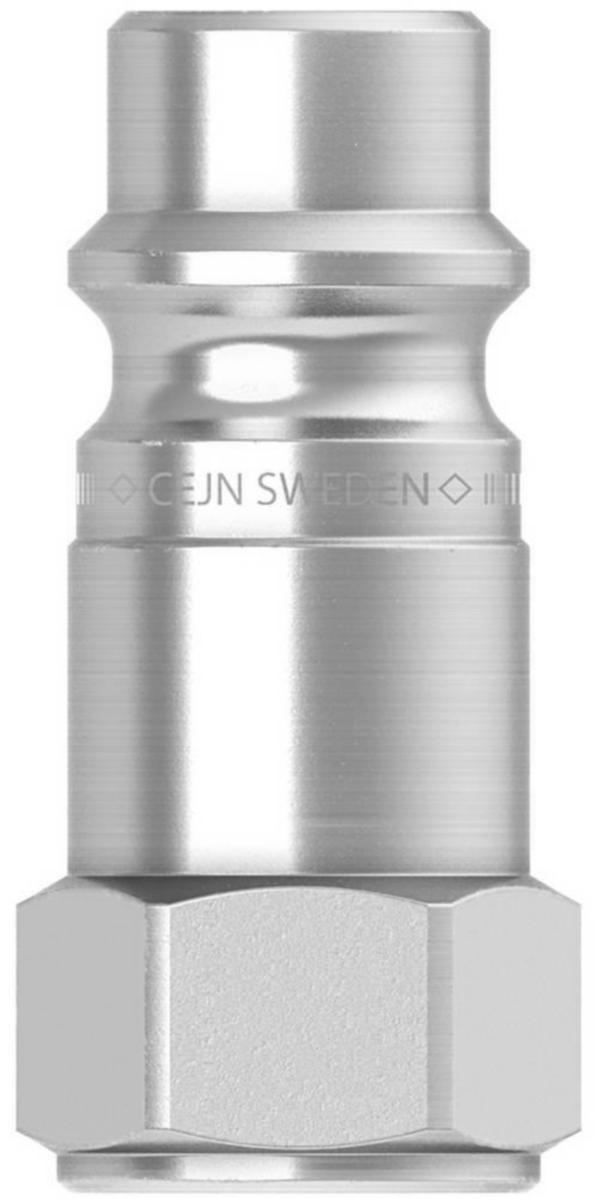

Nipple cejn 320 inside threade
NIPPLE CEJN INSIDE GG1/8 803205201
Article number: Suppl. article no:
378627
803205201
to see price and stock
The couplings in the 320 series include the unique CEJN valve for high flow, upon which all other CEJN air pressure series are based.
- Article number: 378627
- Suppl. article no: 803205201
- Ean no: 7391390288783
- Material class TN218B
Technical data
- Packagin Size: 1 ST/10 ST
- Temperature: -20-+100 °C
- Thread size inner thread (inch): 1/8 inch
- Nominal flow diameter: 7.6 mm
- Max. operating pressure: 16 bar
- Air flow at 6 bar: 950 l/min
- Material nipple: Hardened zinc-plated steel
- Interchangeable: Hansen Auto-Flo 24, Oetiker SC C, Parker Rectus 25/26, Parker Tema 1600/1625, Prevost ESC07/ERC07/ESI07/ISC08
- Standard: CEJN Original, Eurostandard 7.6 mm
