Cejn
Nipple cejn hoseconnect
NIPPLE CEJN HOSECONNECT 3/16 803205001
Article number: Suppl. article no:
378614
803205001
to see price and stock

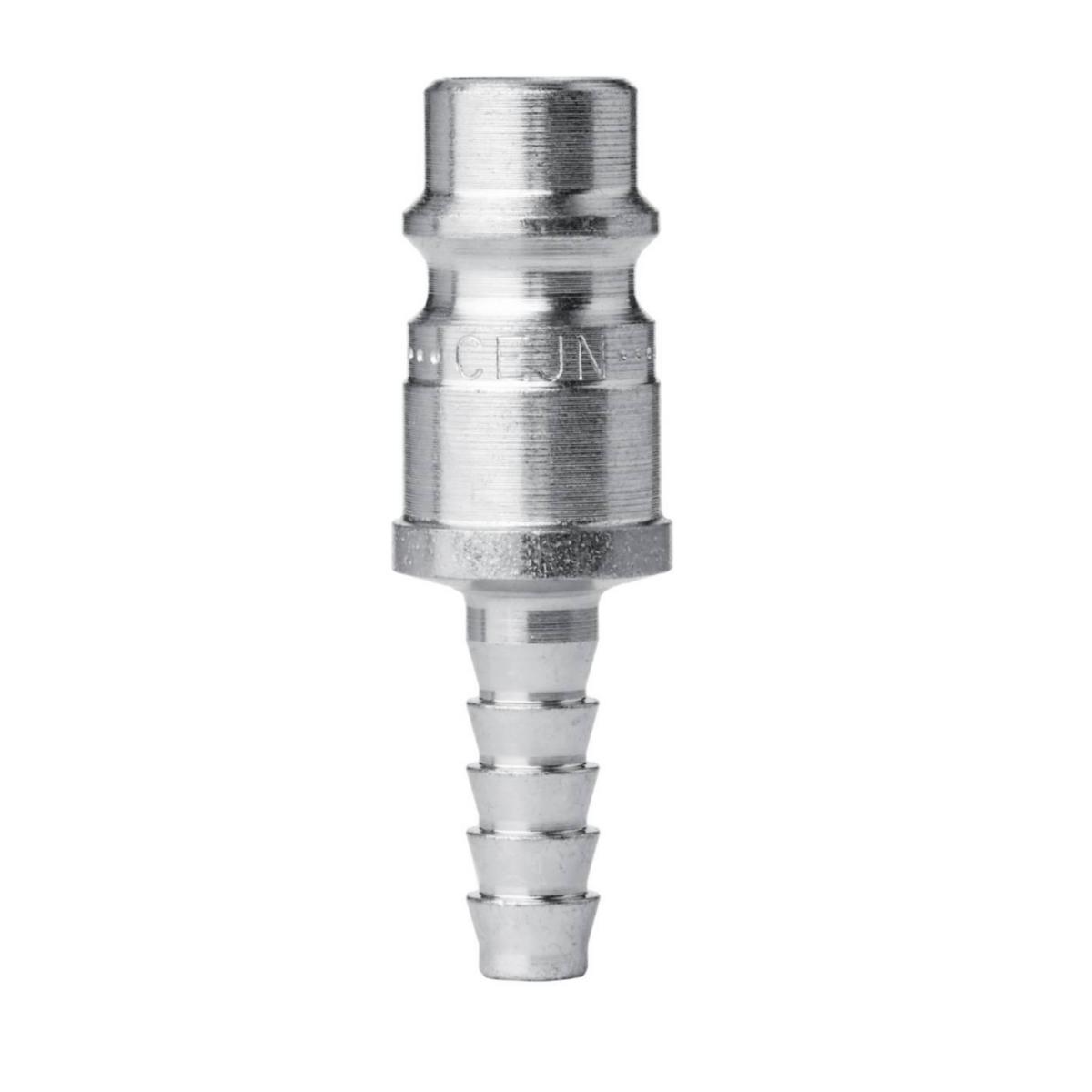

Nipple Cejn 320 with hose connection. For all couplings in the Cejn 320 series.
- Article number: 378614
- Suppl. article no: 803205001
- Ean no: 7391390288646
- Material class TN218B
Technical data
- Packagin Size: 1 ST/10 ST
- Temperature: -20-+100 °C
- Hose connection: 3/16"
- Nominal flow diameter: 7.6 mm
- Max. operating pressure: 16 bar
- Air flow at 6 bar: 950 l/min
- Material nipple: Hardened zinc-plated steel
- Interchangeable: Hansen Auto-Flo 24, Oetiker SC C, Parker Rectus 25/26, Parker Tema 1600/1625, Prevost ESC07/ERC07/ESI07/ISC08
- Standard: CEJN Original, Eurostandard 7.6 mm
