PRK

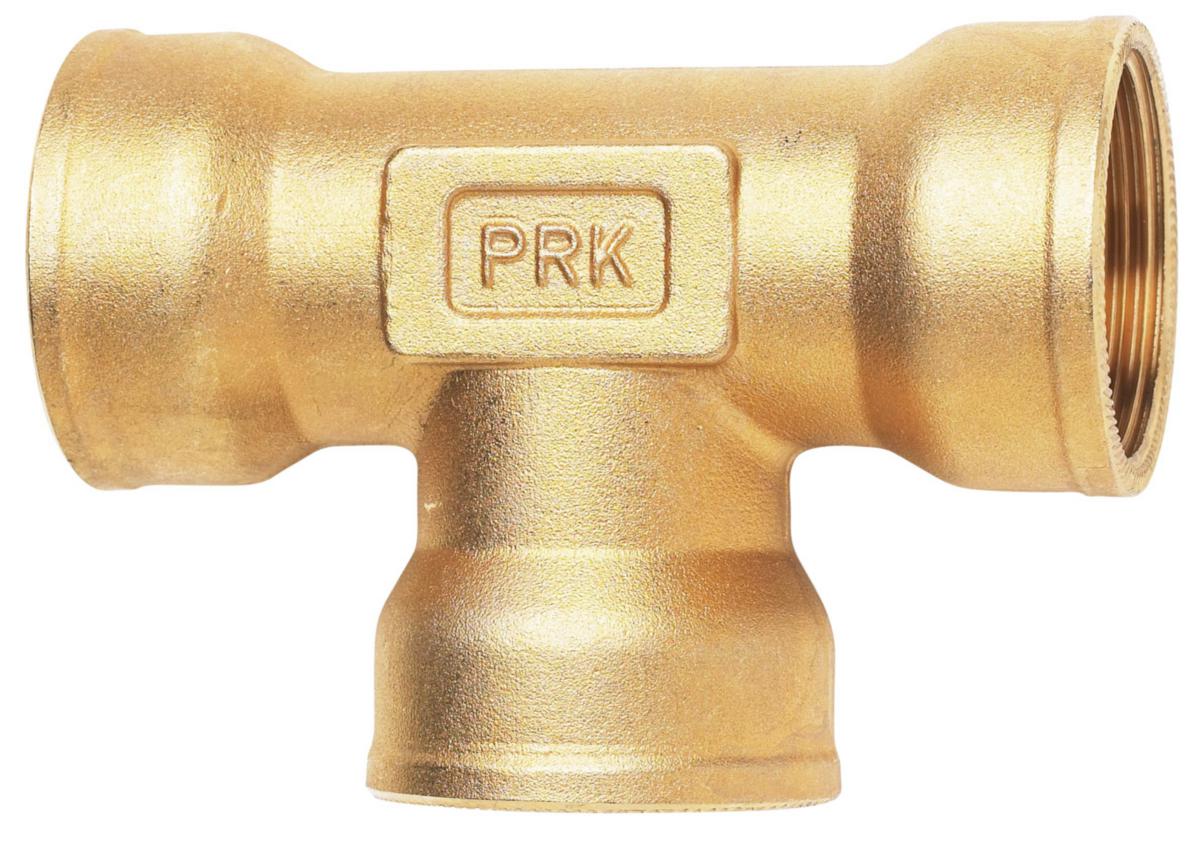

PRK 452, T-coupling 90° int thread, without thrust screws
R25 TA PRK T-COUPLING INT THREAD, 53452-125
Article number: Suppl. article no:
2437937
53452125
to see price and stock
TA 454. Internal thread
- Article number: 2437937
- Suppl. article no: 53452125
- Ean no: 7318792909900
- Material class PMN140
Technical data
- Packagin Size: 1 ST/10 ST/480 ST/1920 ST
- Dimension: R25xR25
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1 inch (25)
- Nominal diameter connection 3: 1 inch (25)
- Max. operating pressure at 20 °C: 16 bar
- Angle: 90 °
- Reducing: No
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: Internal thread cylindrical BSPP-G (ISO 228-1)
- Length: 94 mm
- Model: T-piece
- Design: Without pressure screws, internal thread
