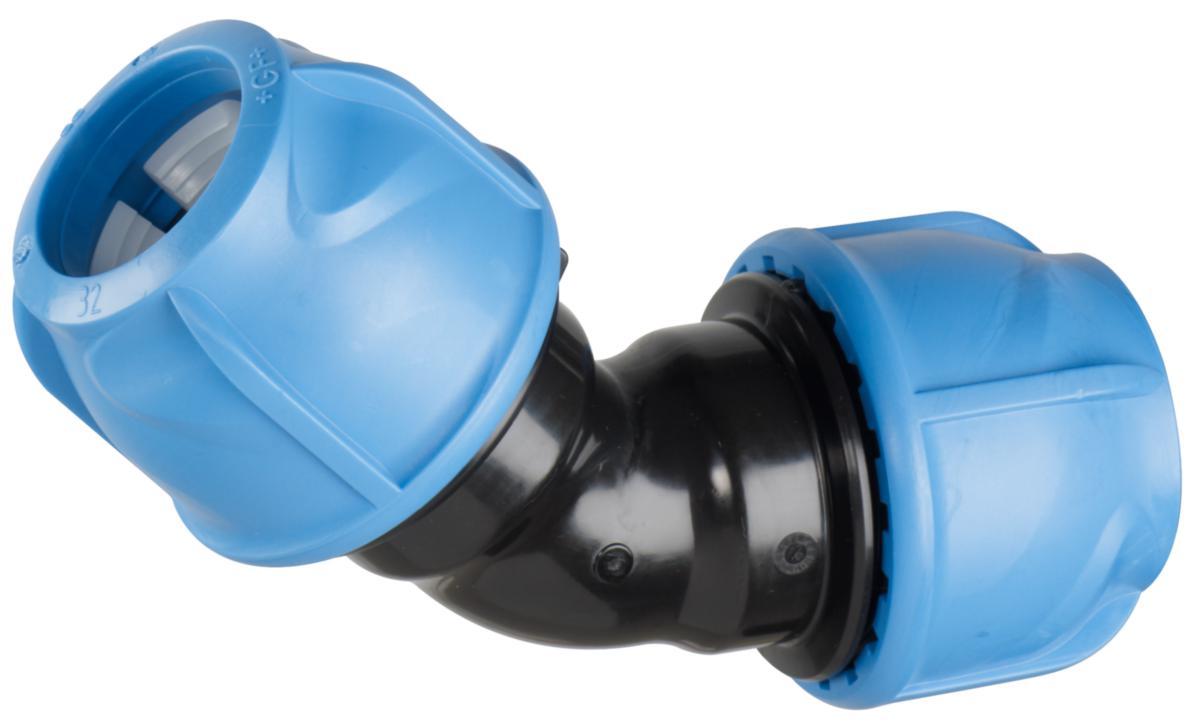

AHL elbow coupling 45°
63 AHL ELBOW COUPLING 45°
Article number: Suppl. article no:
2440716
158400021
to see price and stock
Compression coupling for PE pipes made of PP, compression ring of POM, sealing ring of EPDM and external brass thread. Max pressure PN16 at 20˚C.
- Article number: 2440716
- Suppl. article no: 158400021
- Ean no: 8025351006299
- Material class PMN010
Technical data
- Packagin Size: 1 ST/10 ST/10 ST/120 ST
- Outer pipe diameter connection 1: 63 mm
- Outer pipe diameter connection 2: 63 mm
- Connection 1: Compression ring
- Connection 2: Compression ring
- Bend angle: 45 °
- Length: 272 mm
- Material: Polypropylene (PP)
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16
- With buffer stud: Yes
- With sealing rings/gaskets: Yes
- Norm: SITACnr 0262-11
