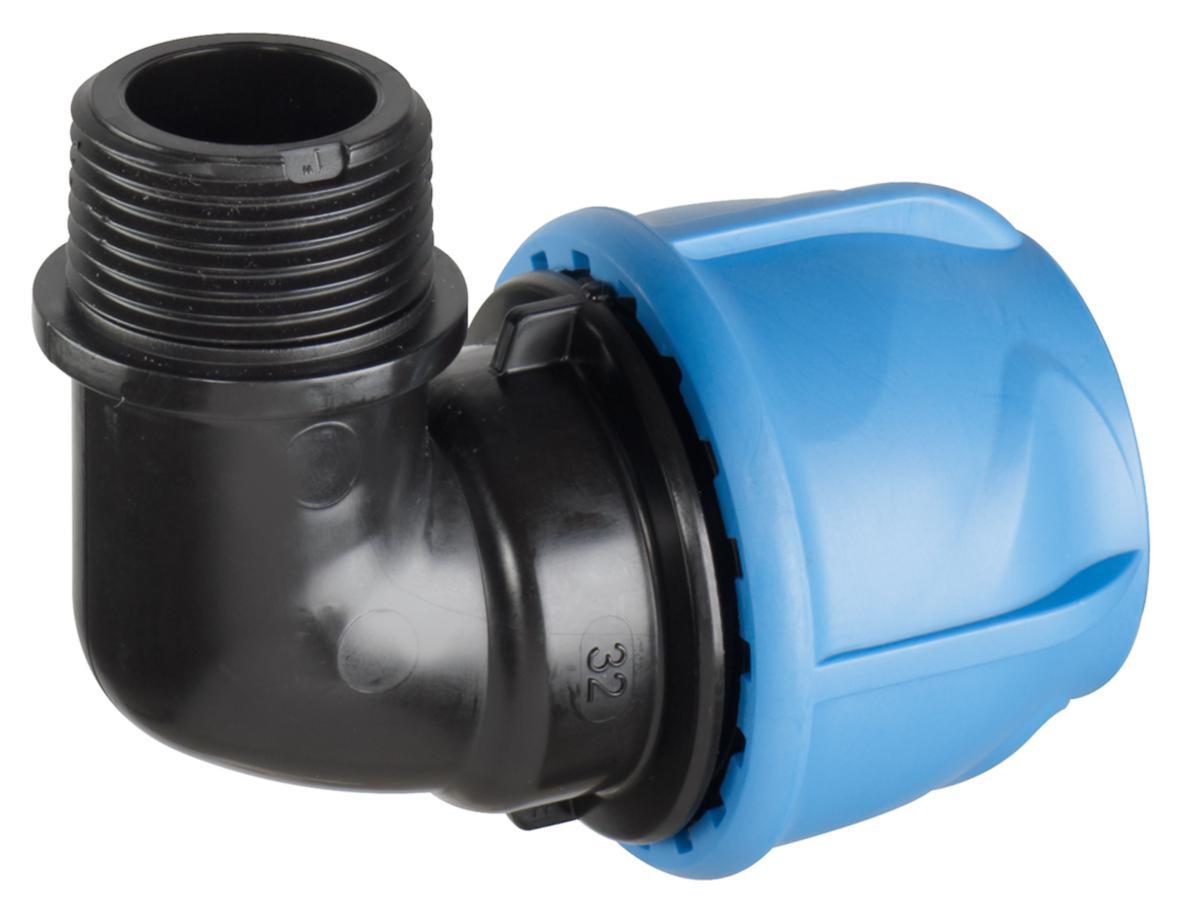

AHL elbow coupling 90° external thread plastic
20xR15 AHL ELBOW COUPLING EXT THREAD OF PLASTIC
Article number: Suppl. article no:
2440700
158400047
to see price and stock
Compression coupling for PE pipes made of PP, compression ring of POM, sealing ring of EPDM and external brass thread. Max pressure PN16 at 20˚C.
- Article number: 2440700
- Suppl. article no: 158400047
- Ean no: 8025351008286
- Material class PMN010
Technical data
- Packagin Size: 1 ST/10 ST/200 ST/2400 ST
- Dimension: 20xR15
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Compression ring
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Bend angle: 90 °
- Material: Polypropylene (PP)
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16
- With buffer stud: Yes
- With sealing rings/gaskets: Yes
- Norm: SITACnr 0262-11
