Beulco
Mounting Bracket Beulco for Water Meter
WATER METER CONSOLE 190-220MM FOR WATERMETERS
Article number: Suppl. article no:
5208020
0250010000
to see price and stock

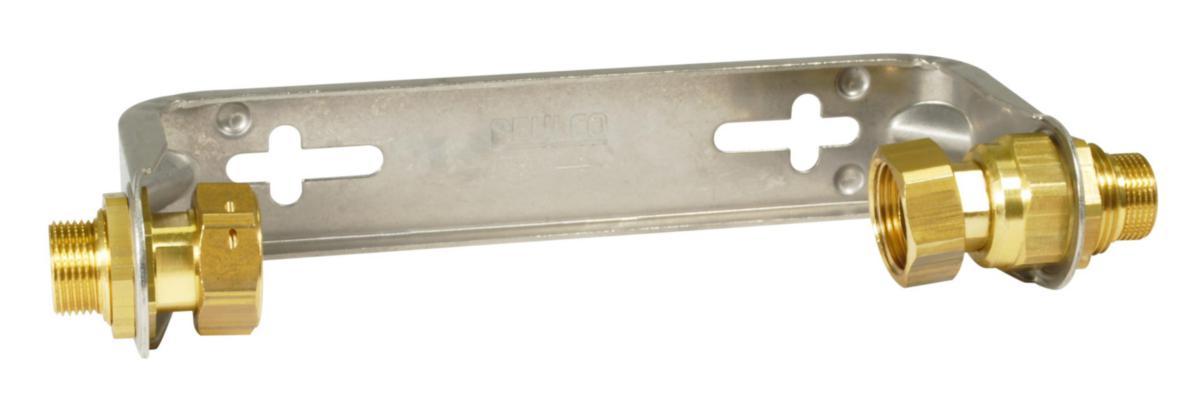

Stainless water meter bracket. One permanent coupling and one with adjustable sleeve. Sealing hole in nut and strap.
- Article number: 5208020
- Suppl. article no: 0250010000
- Ean no: 7331807017988
- Material class PIU130
Technical data
- Connection 1: External thread
- Connection 2: External thread
- Nominal diameter connection 1: DN 20
- Mounting direction: Horizontal and vertical
- Nominal diameter connection 2: DN 20
- Suitable for number of water meters: 1
- Height: 0-50 mm
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 340 mm
- With shut-off valve: No
- Surface protection bracket: Untreated
- Lockable: No
- REACH contains candidate substances: Bly
- REACH Date: 2025-03-27
- Material: AZH-brass Stainless steel
- REACH Information obligation: Yes
