Gustavsberg

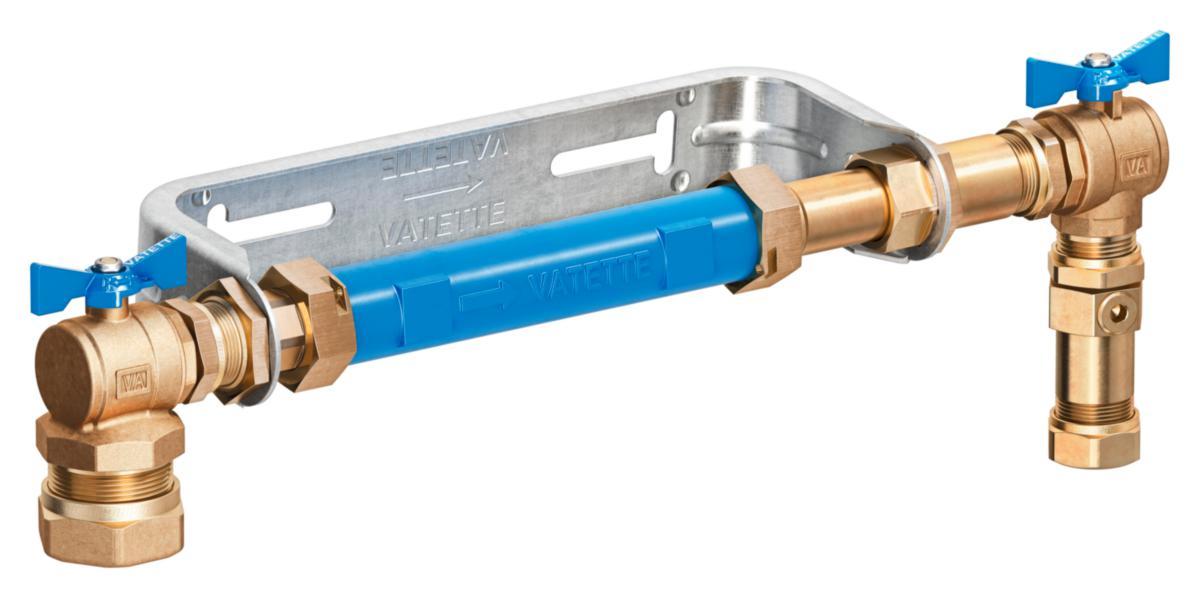

Water meter bracket 190-220mm with check valve, Vatette
WATER METER CONSOLE 190-220MM G25X22.CHECKVALVE. VALV. PIPE
Article number: Suppl. article no:
4647872
FG0986001
to see price and stock
- Article number: 4647872
- Suppl. article no: FG0986001
- Ean no: 7393792105200
- Material class PIU130
Technical data
- Packagin Size: 1 ST/260 ST
- Connection 1: External thread
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 32
- Mounting direction: Horizontal
- Nominal diameter connection 2: DN 20
- Suitable for water meter length: 190-220 mm
- Model water meter: Qn 2.5
- Lockable: Yes
- Outer pipe diameter connection 2: 22 mm
- REACH contains candidate substances: Bly
- REACH Date: 2022-05-20
- REACH Information obligation: Yes
