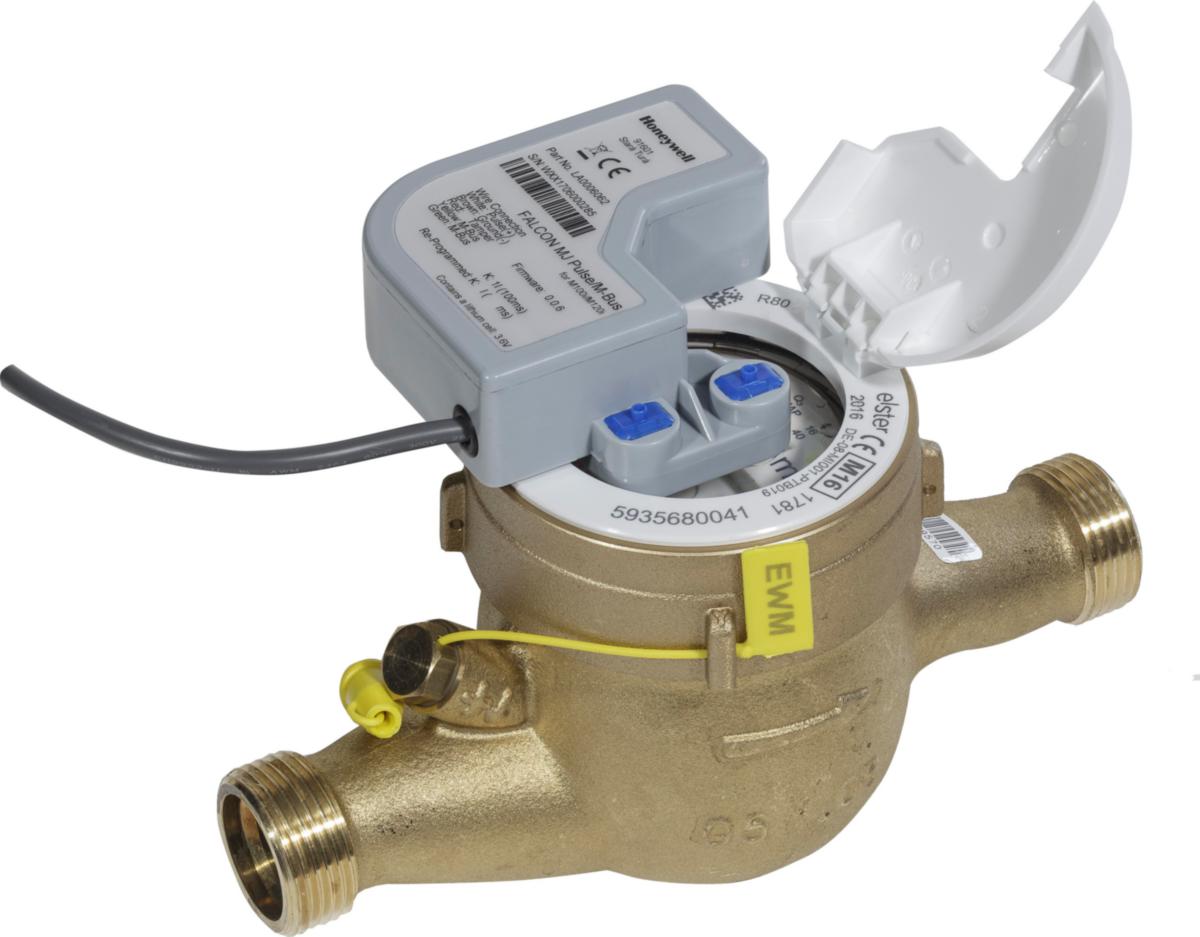

Impeller meter M100i wet-running multi-jet, prepared for pulse-M-bus
MULTI-JET METER Q3=4 DN20/G25 L=190MM PREP M-BUS/PULS
Article number: Suppl. article no:
5143669
LAM10020190M100i
to see price and stock
- Article number: 5143669
- Suppl. article no: LAM10020190M100i
- Ean no: 7340080799573
- Replaces art.nbr: 5191599
- Material class PIU011
Technical data
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1 inch (25)
- Working length: 190 mm
- Continuous volume flow (Q3): 4 m³/h
- Medium temperature (continuous): 0-45 °C
- Article compression class: PN 16
- Suitable for oil: No
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Flange compression class: PN 16
- Housing material: Brass
- Material quality: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 kPa
- With shut-off valve: No
