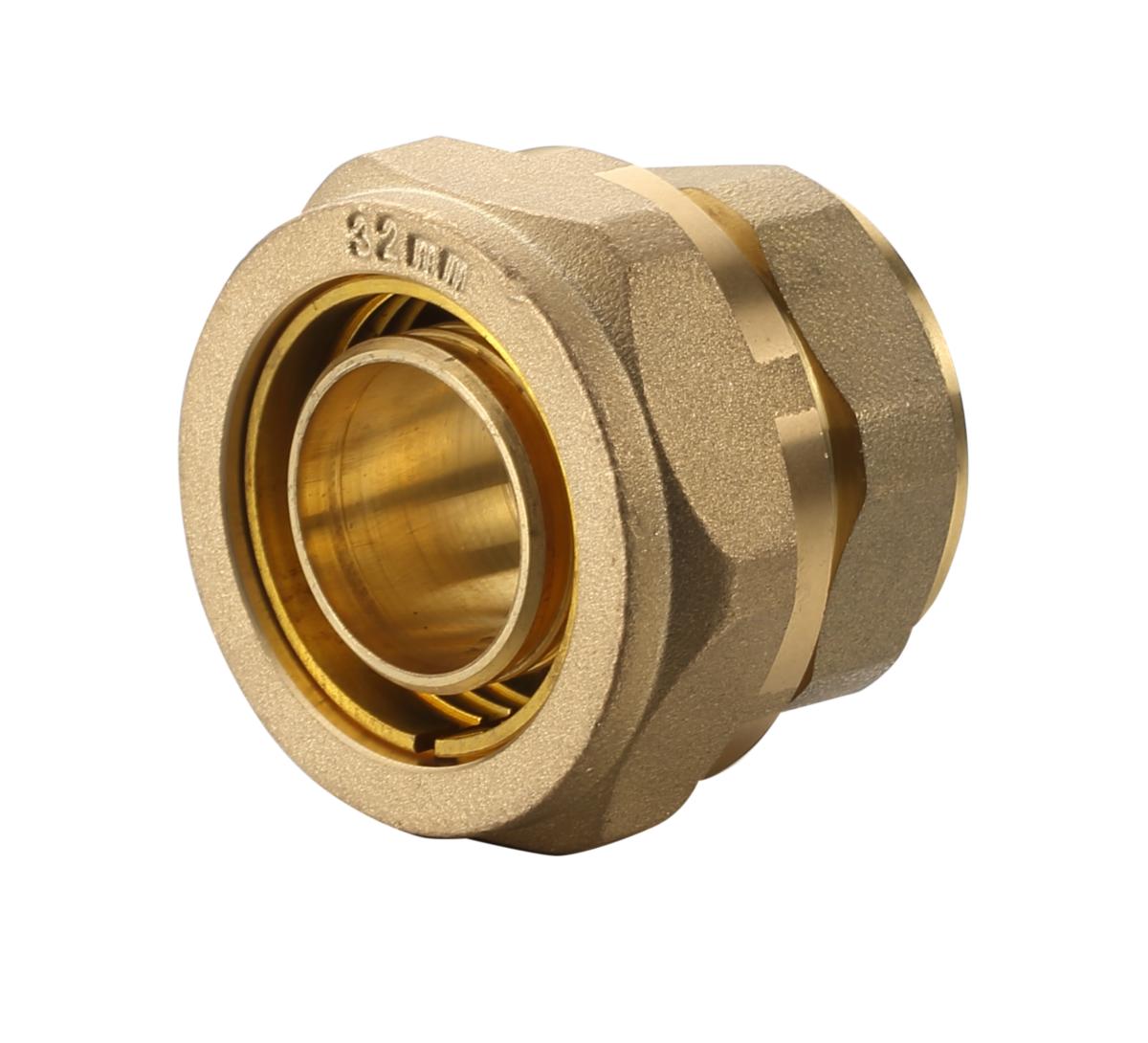

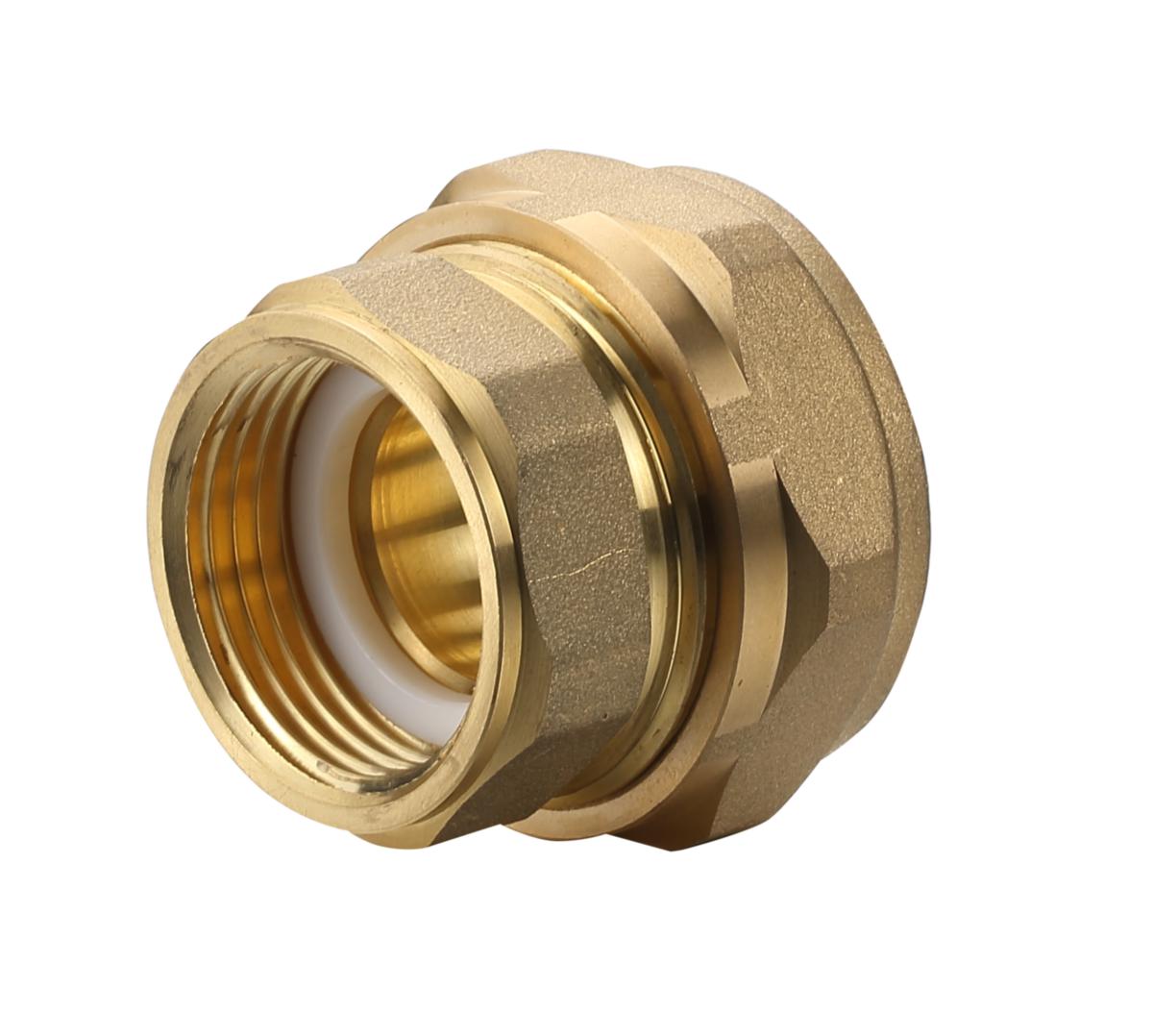

Coupling for Lead-Free PE Pipes, a-collection
FITTING FOR WATER METER CONSOL G25XG32 FOR PE LEAD FREE
Article number: Suppl. article no:
4648120
4648120
to see price and stock
Plastic pipe coupling for PE pipes in lead-free design
- Article number: 4648120
- Suppl. article no: 4648120
- Ean no: 7333123052322
- Material class PIU042
Technical data
- Packagin Size: 1 PCS/10 PCS
- Connection 1: Compression ring
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1 inch (25)
- Shape: Straight
- Material connection 2: Brass
- Material connection 1: Brass
- Eccentric: No
- Bend angle: 0 °
- Reducing: Yes
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 10 bar
- With drain valve: No
- With de-aerator: No
- Capped: No
- System specific: No
- Outer pipe diameter connection 1: 32 mm
- Outer pipe diameter connection 2: 32 mm
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- With thermal insulation: No
