Siemens

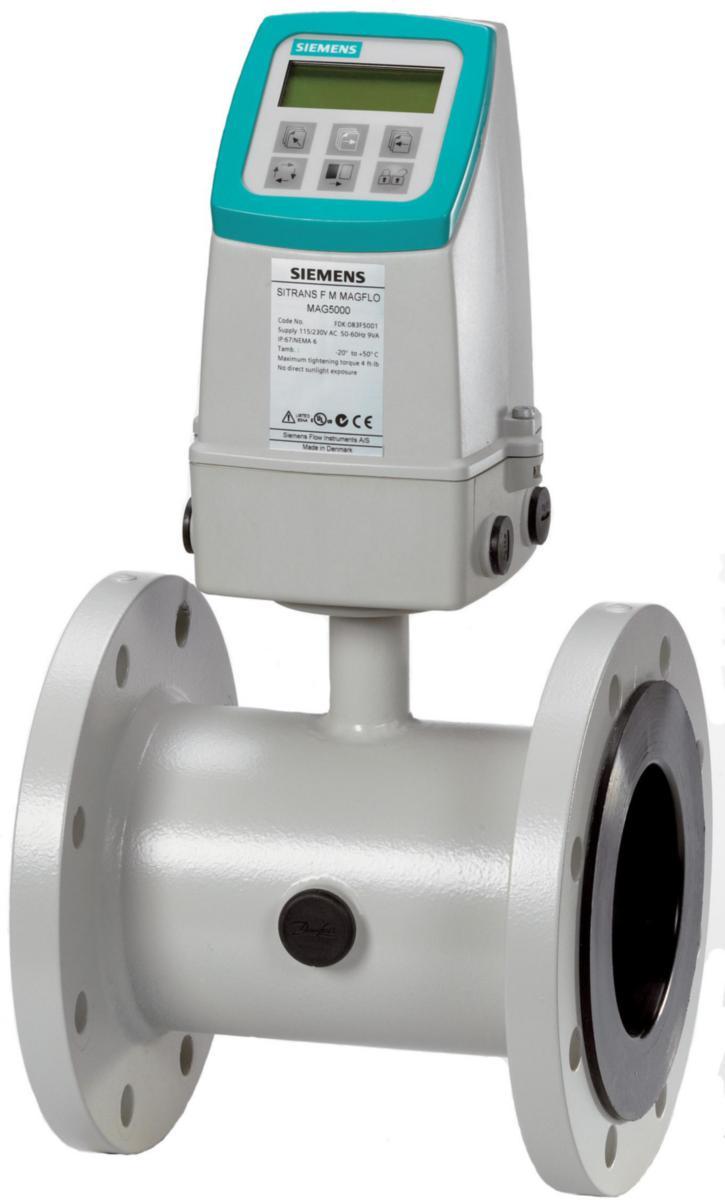

Sitrans FM MAG5000/5100W complete flow meter NBR, Siemens
SITRANS F M MAG 5100 W KOMPL FLÖDESM DN300.PN10.NBR
Article number: Suppl. article no:
5182154
7ME6520-5DB13-2LA1
to see price and stock
SITRANS FM flow meter consisting of measuring tube MAG5100W EN 1092-1 flange in carbon steel ASTM A105. Liner material: NBR hard rubber. Electrode material: Hastelloy C-276. Transmitter MAG5000 IP67 compact in polyamide with display 115-230V AC 50/60 Hz and 2 pcs M20 cable glands. Media temperature -10...+70ºC. Measurement accuracy 0.4% +/- 1mm/s.
- Article number: 5182154
- Suppl. article no: 7ME6520-5DB13-2LA1
- Material class PIU150
Technical data
- Connection: Flange
- Nominal diameter: DN 300
- Flange compression class: PN 10
- Width: 500 mm
- REACH Date: 2022-03-21
- REACH Information obligation: No
