Nipple Threaded x Internal Thread Galvanized

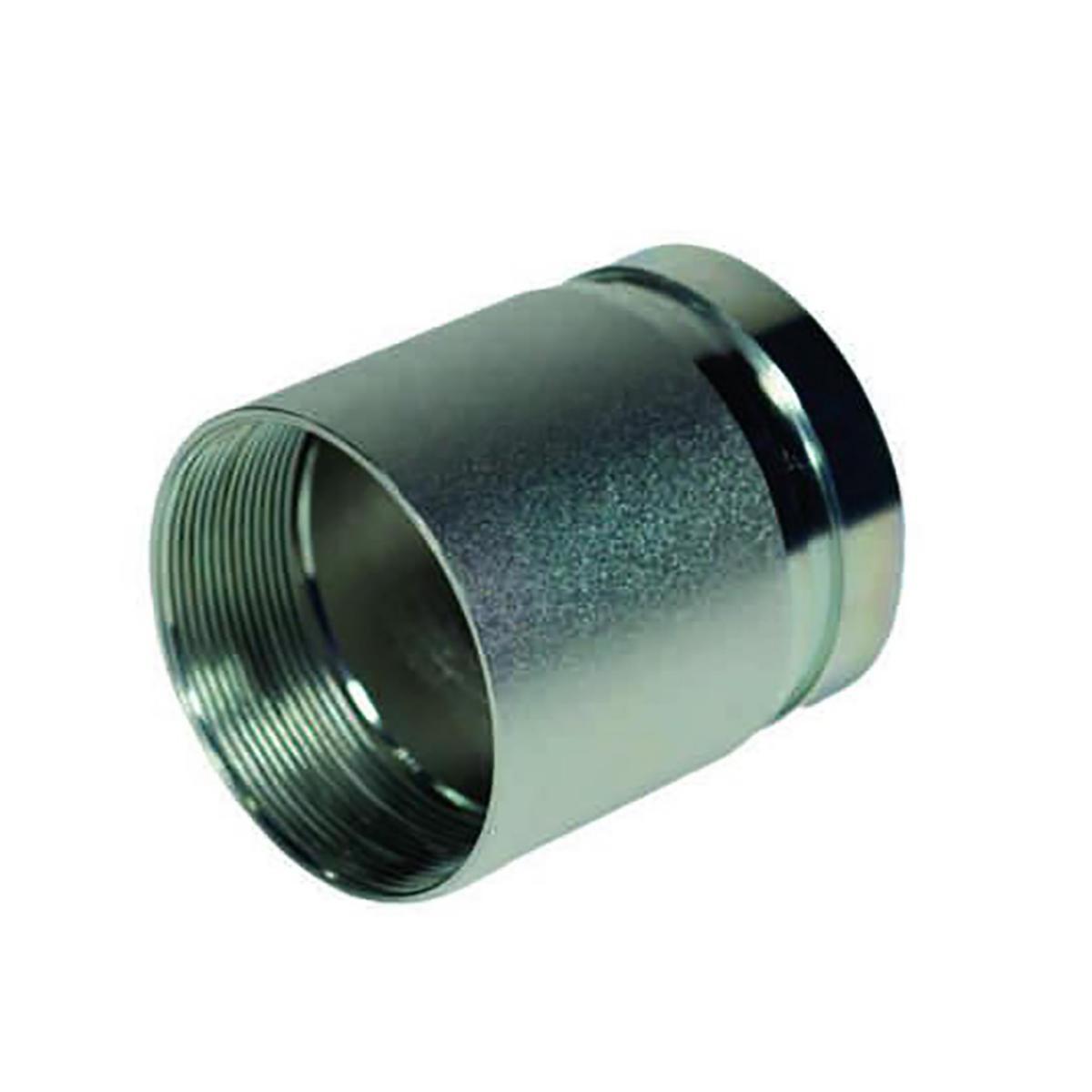

Grooved galv female thread adp DN25-33.7 MM- L=75 MM
Article number: Suppl. article no:
1650670
SGA1-GALVA
to see price and stock
Transition adapter in steel, internal thread x grooved pipe end.
- Article number: 1650670
- Suppl. article no: SGA1-GALVA
- Replaces art.nbr: 19051081
- Material class PJB650
Technical data
- Packagin Size: 1 PCS/72 PCS
- Nominal diameter connection 1: DN 25
- Nominal diameter connection 2: DN 25
- Outer pipe diameter connection 1: 33.7 mm
- Outer pipe diameter connection 2: 33.7 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.21 kg
- Connection 1: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Connection 2: Groove
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Length: 75 mm
