Distributor cabinet UNI, LK

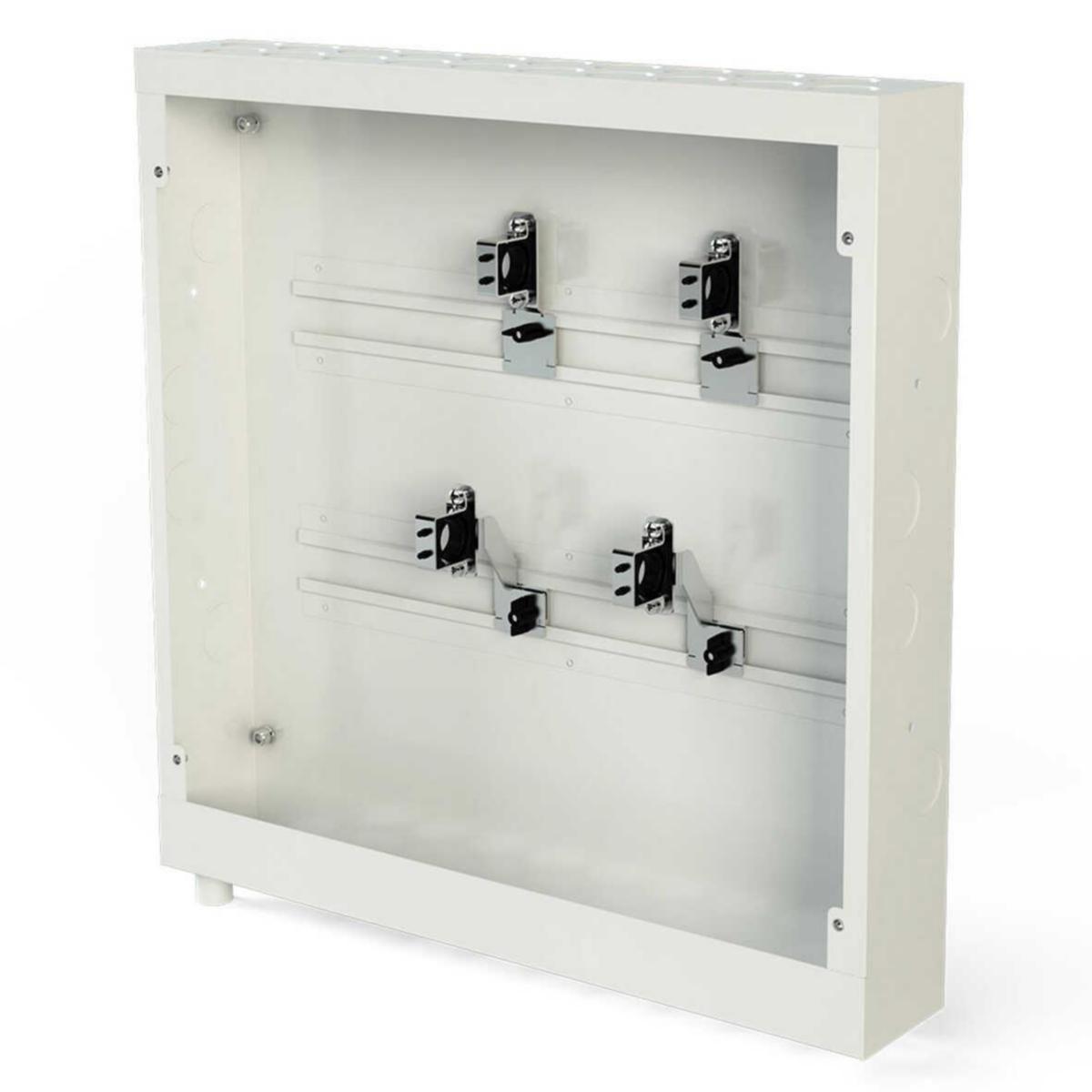

MANIFOLD CABINET UNI 550 550 X 550 X 95, LK SYSTEMS
Article number: Suppl. article no:
1881313
1881313
to see price and stock
LK UNI distributor box can also be mounted built into wall, for which LK frame/cover UNI INB is used. LK UNI distributor box can also be mounted externally on wall, for which UNI UTV frame/cover shall be used together with LK UNI base. When LK UNI 550 distributor box is mounted in ceiling, LK UNI 550 TAK frame/door shall be used. NB! distributor box, frame/door and base are separate articles and must each be ordered separately.
The box is intended for 2 pcs LK distribution pipes with max. number of outlets as per the table. The consoles to the distribution pipes are packed in the box. The consoles can easily change position to connect pipes from below or above. LK Drainage bend complete is supplied for outlet from wall with leakage indication for the distributor box. A wooden protection bag is included for protection during the construction period.
The box is intended for 2 pcs LK distribution pipes with max. number of outlets as per the table. The consoles to the distribution pipes are packed in the box. The consoles can easily change position to connect pipes from below or above. LK Drainage bend complete is supplied for outlet from wall with leakage indication for the distributor box. A wooden protection bag is included for protection during the construction period.
- Article number: 1881313
- Suppl. article no: 1881313
- Ean no: 7331590040323
- Replaces art.nbr: 1874478
- Material class PAM120
Technical data
- Packagin Size: 1 ST/14 ST
- Width: 550 mm
- Depth: 95 mm
- Height: 550 mm
- Housing colour: White
- Number of holes in bottom: 20
- Number of holes on top: 20
- Number of holes/slots per side: 4
- Suitable for built-in mounting: Yes
- Suitable for surface mounting: Yes
- Housing material: Steel
- With built-in distributor: No
- With brackets for distributor: Yes
- With door: No
- With pipe feed-through sealing: No
- With splash guard: Yes
- With outlet for leakage indication: Yes
- With waterproof bottom: Yes
- RAL-number housing: 9016
- Surface protection housing: Lacquered
- With open holes on sides: No
- With open holes on top: No
- With holes in bottom: Yes
- Colour door: White
- Surface protection door: Lacquered
- Material door: Steel
- REACH Date: 2021-09-01
- GWP-tot (A1-A3): 16,1040 kgCO2e/ST
- REACH Information obligation: No
