LK

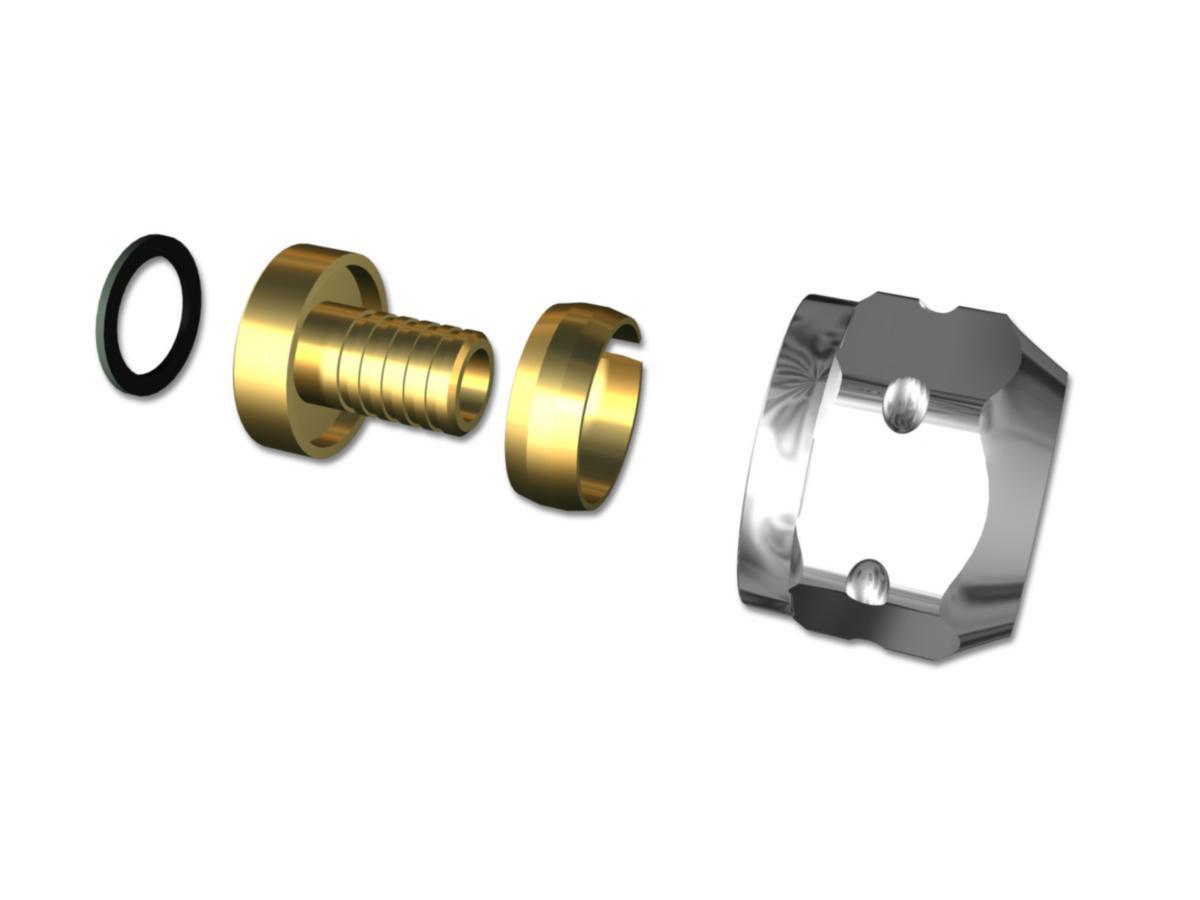

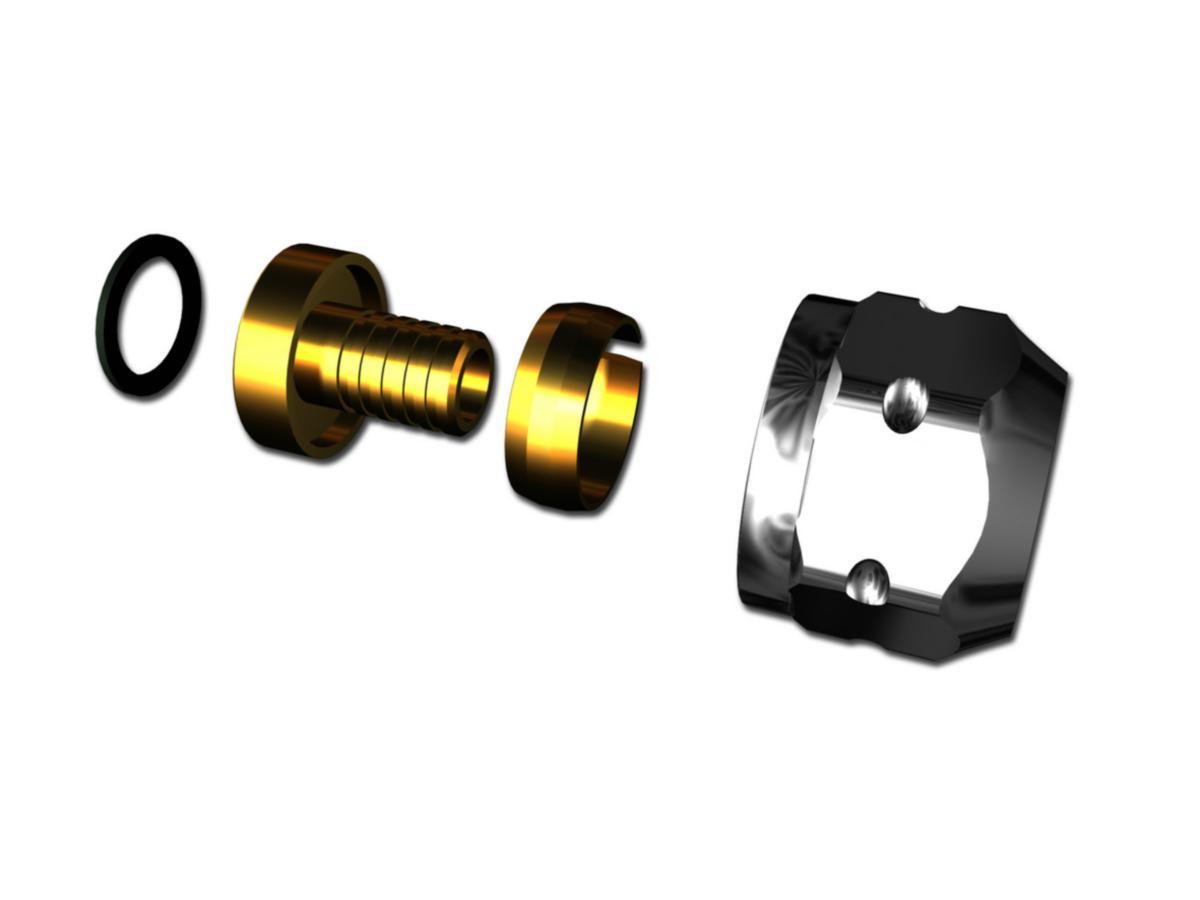

Half coupling, LK
HALF-CONNECTION X16X½" PLATED LK SYSTEMS
Article number: Suppl. article no:
1878145
1878145
to see price and stock
Supplied with fibre seal.
- Article number: 1878145
- Suppl. article no: 1878145
- Ean no: 7331590024347
- Replaces art.nbr: 1870774
- Material class PAM12A
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 16 mm
- Connection 1: Compression ring
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- KIWA certified: Yes
- Medium temperature (continuous): 0-70 °C
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Nickel-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 3-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: Yes
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- REACH Date: 2021-11-15
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
