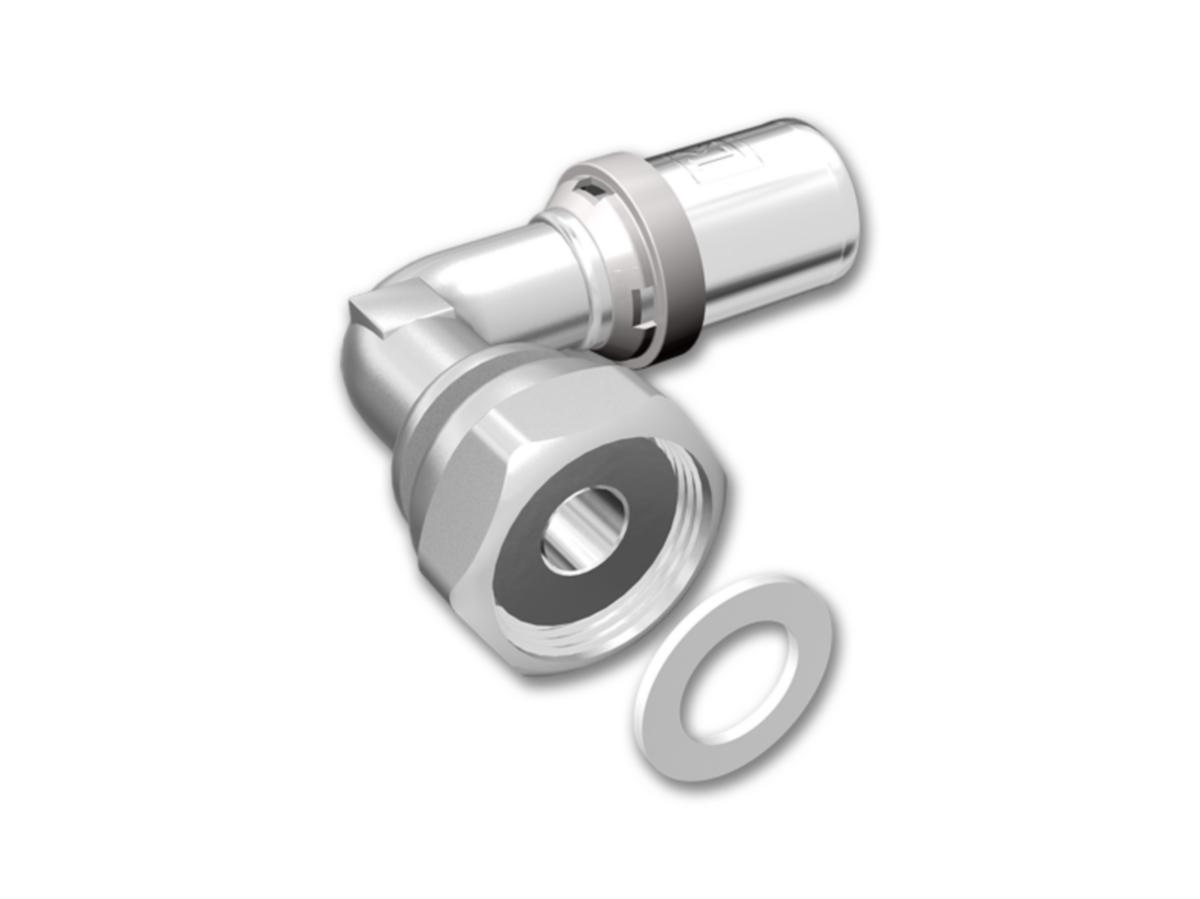

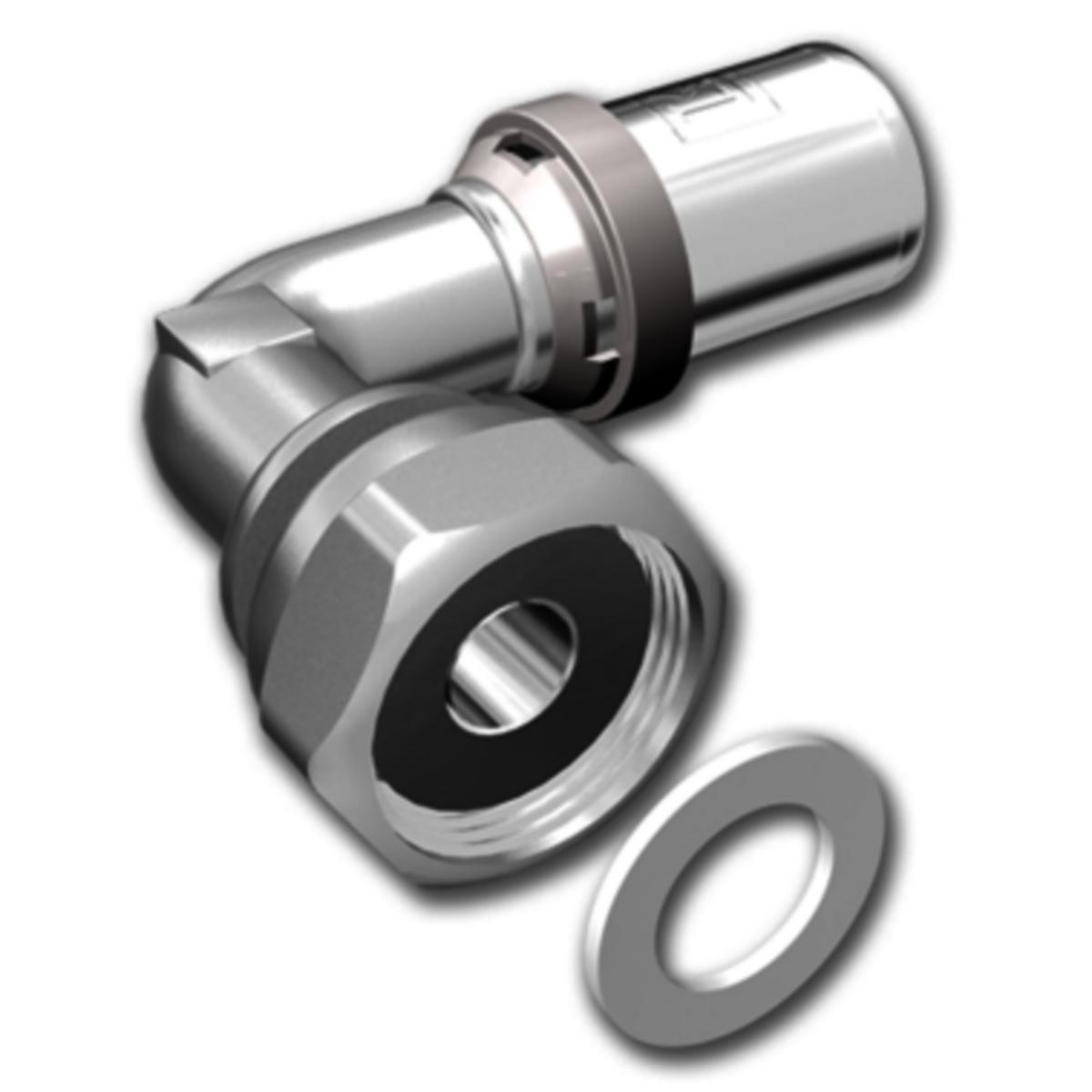

Angle coupling with swivel nut, PressPex, LK
ANGLE FITTING AX20X¾" LK SYSTEMS
Article number: Suppl. article no:
1876546
1876546
to see price and stock
Press coupling for joining LK PAL and LK PE-X Universal pipe.
For flat seals. Fibre seal included. Chrome-plated.
For flat seals. Fibre seal included. Chrome-plated.
- Article number: 1876546
- Suppl. article no: 1876546
- Ean no: 7331590015192
- Material class PAM12A
Technical data
- Packagin Size: 1 ST/10 ST
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: 3/4 inch (20)
- Outer pipe diameter connection 1: 20 mm
- Outer pipe diameter connection 2: 20 mm
- Connection 1: Press sleeve
- Connection 2: Union nut
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Bend
- KIWA certified: Yes
- Medium temperature (continuous): 0-70 °C
- Contour code connection 1: TH
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Length: 44.5 mm
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Nickel-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 1-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: Yes
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- Bend angle: 90 °
- REACH Date: 2022-03-21
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
