Schneider Electric

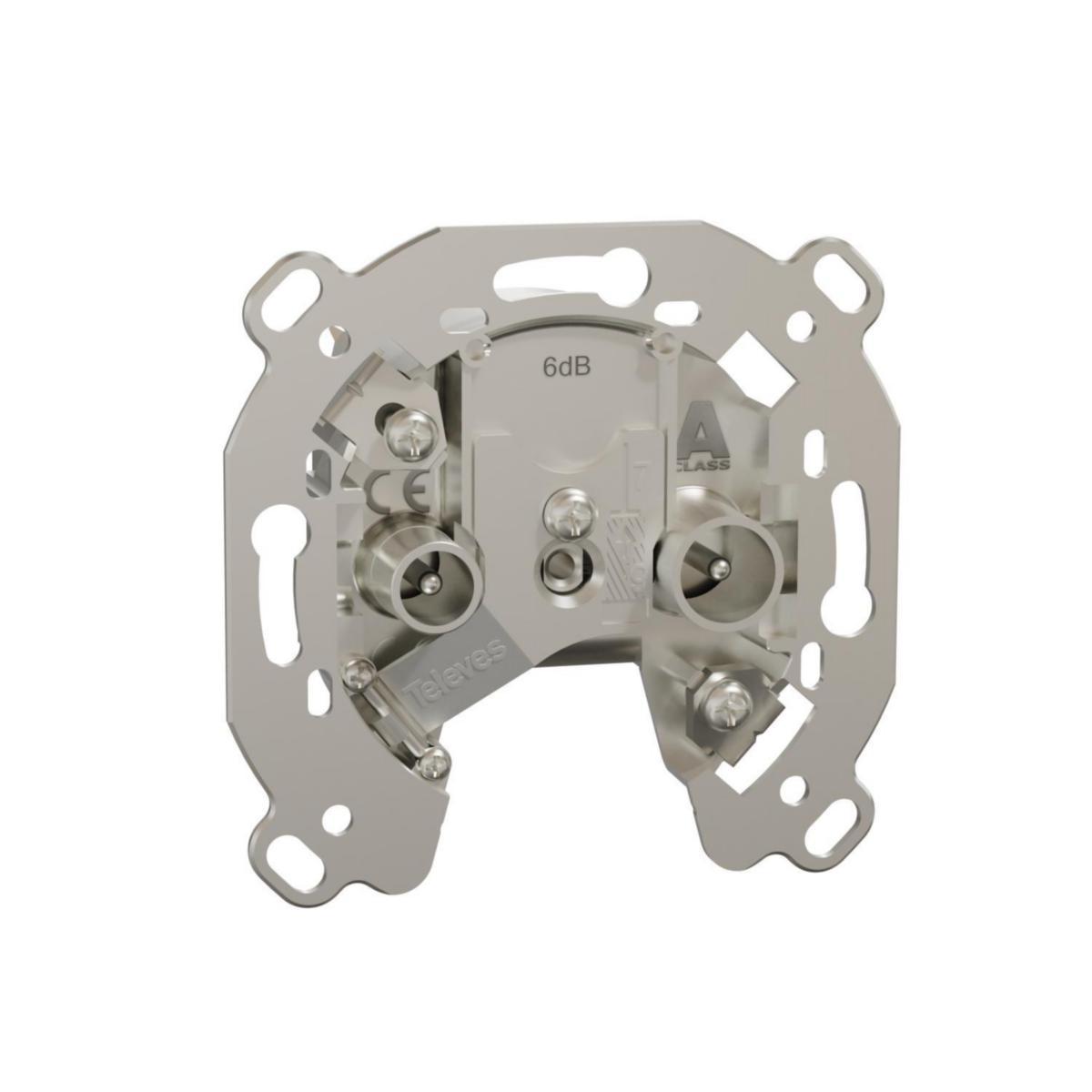

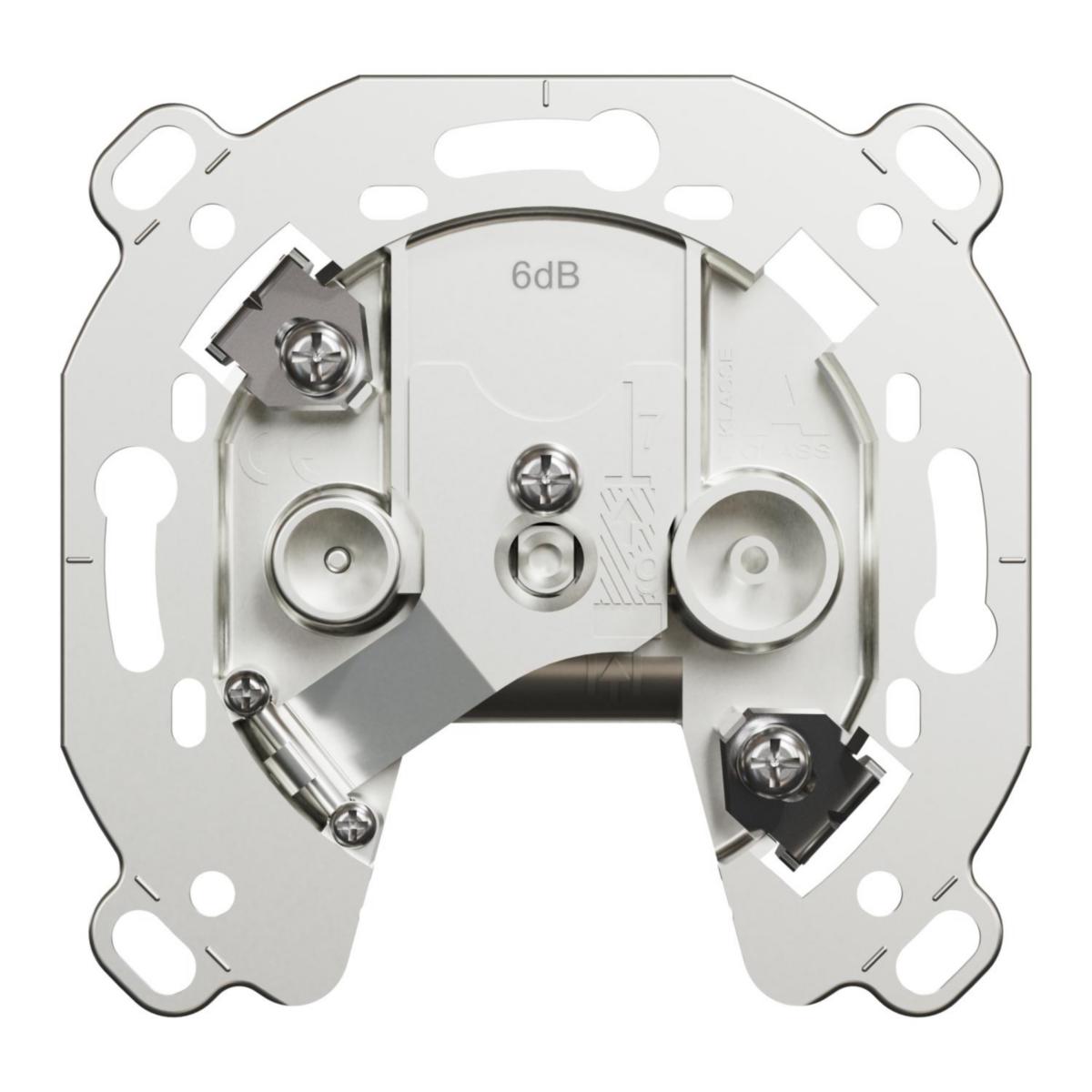

Antenna socket R / TV Exxact
ANTENNA INSERT R/TV ATT 6DB WDE004971
Article number: Suppl. article no:
6001357
WDE004971
to see price and stock
Antenna socket insert Radio / TV for IP20 dose mounting. Complemented with Exxact center plate and frame. For surface mounting, select any external Exxact box. Normally used as a socket in the case of series-connected antenna sockets, or as a socket in the star mains connection. Suitable socket for terrestrial TV (Terrestrial installations).
- Article number: 6001357
- Suppl. article no: WDE004971
- Ean no: 3606481062932
- Material class QR909B
Technical data
- Packagin Size: 1 ST/10 ST
- Model: Loop-through socket
- Cover: None
- Colour: Aluminium
- Tap loss at 860 MHz: 6 dB
- Tap loss at 2150 MHz: 0 dB
- Through loss at 860 MHz: 2.5 dB
- Through loss at 2150 MHz: 0 dB
- Frequency: 5-862 MHz
- Mounting method: Flush-mounted
- Product series: Exxact
- RAL-number (similar): 9006
- Number of outlets: 2
- Suitable for remote power supply: No
- Suitable for cable modem: No
- Halogen free: Yes
- Material: Metal
- Material quality: Other
- Device width: 68 mm
- Device height: 70 mm
- Device depth: 27 mm
- Type of fastening: Mounting with screw
- Surface protection: Untreated
- Anti-bacterial treatment: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
