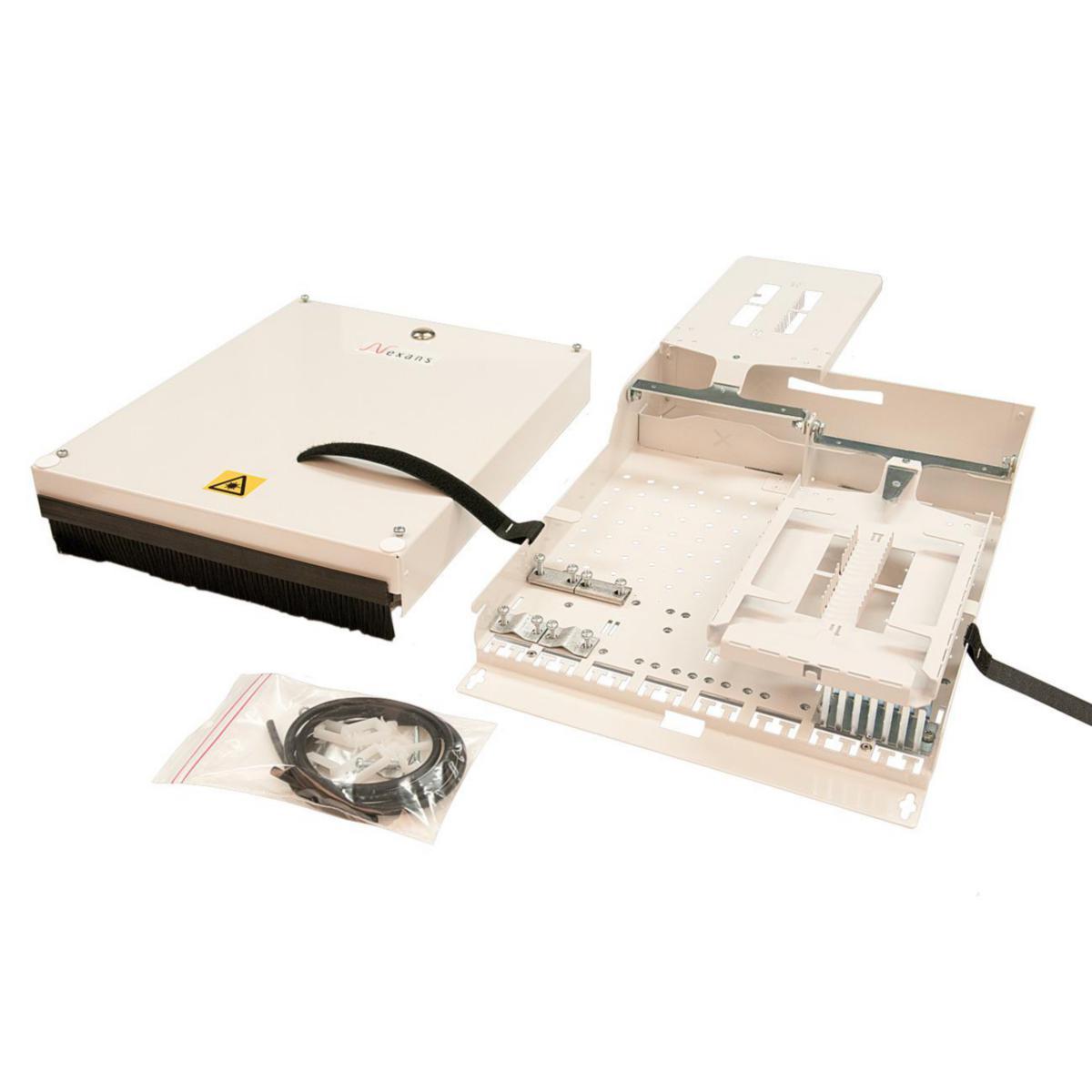

Splice cabinet NS4, Nexans
SPLICE CABINET NS4 NBHA10136
Article number: Suppl. article no:
5060869
30775009
to see price and stock
Splice cabinet NS4 manufactured in powder coated galvanised steel plate suitable for use for all kinds of splicing and/or branching. Suitable environments are indoors or outdoors in ground cabinets or similar. In NS4 up to 192 fibres can be spliced in a single fibre bundle. NS2 Is completed with connectors for micro cables or micro ducts to be connected.
- Article number: 5060869
- Suppl. article no: 30775009
- Ean no: 7330000107854
- Material class QR4901
Technical data
- Design: 2 pcs splice cassettes (96 fibre) 1 pc connection for 2-4 cables (max 22mm)
- Surface mounting: Yes
- Suitable for type of fibre: Multi mode/single mode
- Suitable for number of couplers: 0
- With couplers: No
- With label space: Yes
- Mechanical coding: No
- Type of fastening: Screwing
- Degree of protection (IP): Other
- Width: 289 mm
- Height: 380 mm
- Depth: 90 mm
- Connector housing: Other
- Colour coding: No
- Floor box/subfloor mounted: No
- Flush-mounted installation/built-in installation: No
- Duct installation: No
- Material connector housing: Metal
- With dust cover: No
- Ambient temperature: -40-70 °C
- Separate strain relief: Yes
- Degree of protection (NEMA): Other
- Type of connector: Other
- Outlet direction: Bottom
- Product series: NS4
- REACH Date: 2021-06-14
- REACH Information obligation: No
