Commscope
Splice box OFDC-A4, 24 fibers
FIBER-OPTIC SPLICE COMMSCOPE
Article number: Suppl. article no:
5060857
8212022
to see price and stock

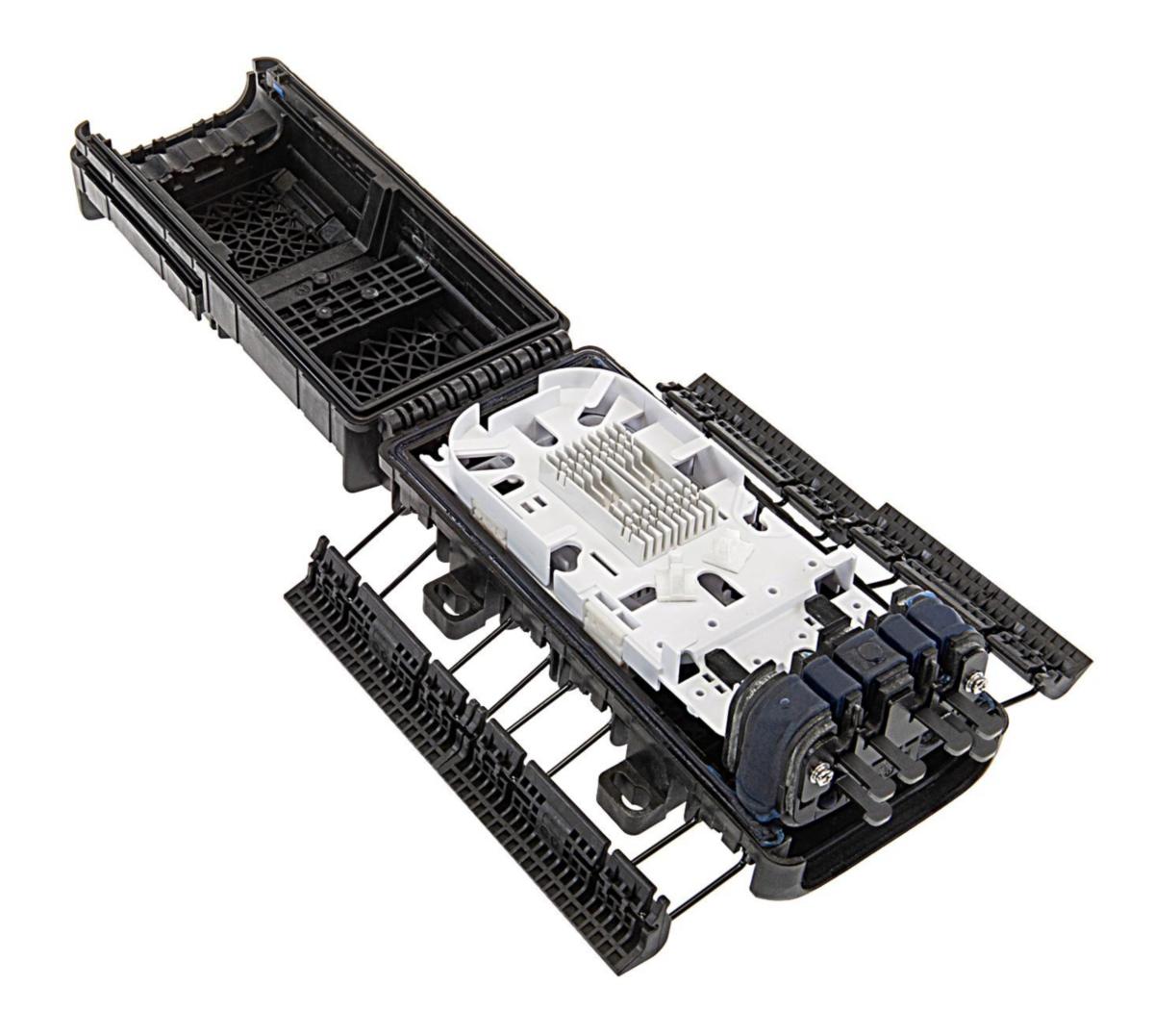

OFDC-A4 is a small splice box for up to 24 fibers, 2 splice cassettes a: 12 fibers included. Enclosure class IP68
- Article number: 5060857
- Suppl. article no: 8212022
- Ean no: 7330268106767
- Material class QR496B
Technical data
- Surface mounting: Yes
- Suitable for type of fibre: Multi mode/single mode
- Suitable for number of couplers: 24
- With couplers: No
- With label space: Yes
- Mechanical coding: No
- Type of fastening: Other
- Degree of protection (IP): IP68
- Width: 94 mm
- Height: 211 mm
- Depth: 70 mm
- Connector housing: Other
- Colour coding: No
- Floor box/subfloor mounted: No
- Flush-mounted installation/built-in installation: No
- Duct installation: No
- Material connector housing: Plastic
- With dust cover: Yes
- Ambient temperature: -30-60 °C
- Separate strain relief: Yes
- Degree of protection (NEMA): Other
- Type of connector: Other
- REACH Date: 2022-04-13
- REACH Information obligation: No
