Eurolan

Fibre Pigtail Single mode 9/125

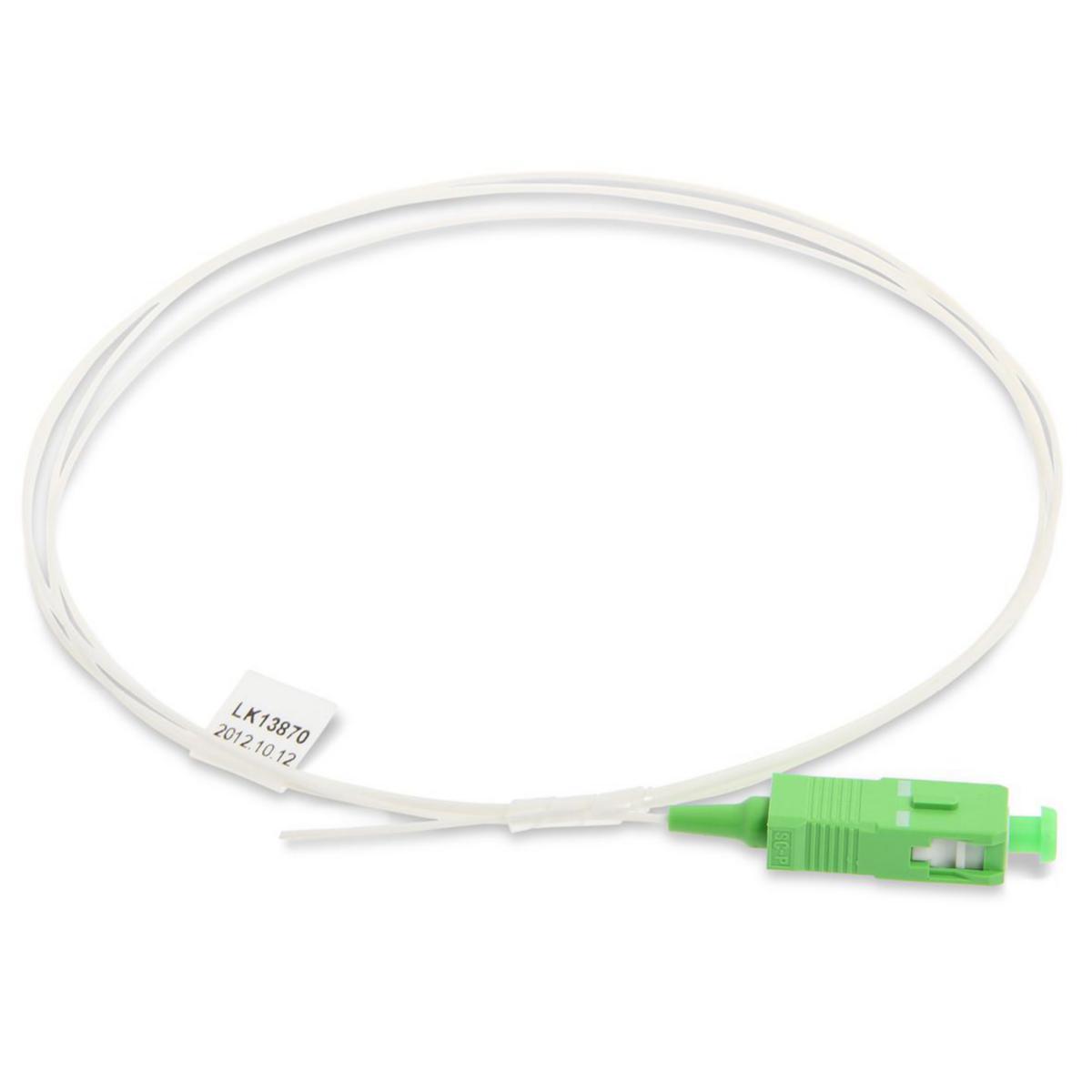

PIGTAIL SC/APC 9/125 1M 42B-S1-SC-01A
Artikelnummer:
5070310
Lev. artikelnr:
42B-S1-SC-01A





 för att se saldo och pris
Eurolan fiber pigtails are manufactured to be used for fiber optic networks with high requirements, where quality and functionality are decisive factors. The termination method is in accordance with current specifications and the work is carried out under controlled conditions. Each Eurolan fiber pigtail is visually inspected and measured for passing results to become an approved product. The products are specially adapted for FTTX installations. Eurolan fiber cabling is supplied with a 0.9mm outer jacket. Eurolan fiber cabling is supplied with fixed secondary protection. Supplied with measurement protocol and has a maximum attenuation of 0.3dB per contact. Included in the Eurolan system warranty. Singlemode fiber according to the specifications in TIA/EIA-568B.3, Bellcore GR-020. Glass G657A1.
  • Article number:
    5070310
  • Suppl. article no:
    42B-S1-SC-01A
  • Ean no:
    7333089003338
  • Material class
    QR5470
Teknisk data
  • Type: Conductor pigtail
  • Length: 1 m
  • Fibre type: Single mode
  • Type of connector: SC
  • Category: OS2
  • APC-version: Yes
  • Colour: Green
  • Anti-kink sleeve: Moulded-on
  • Core type: Semi tight
