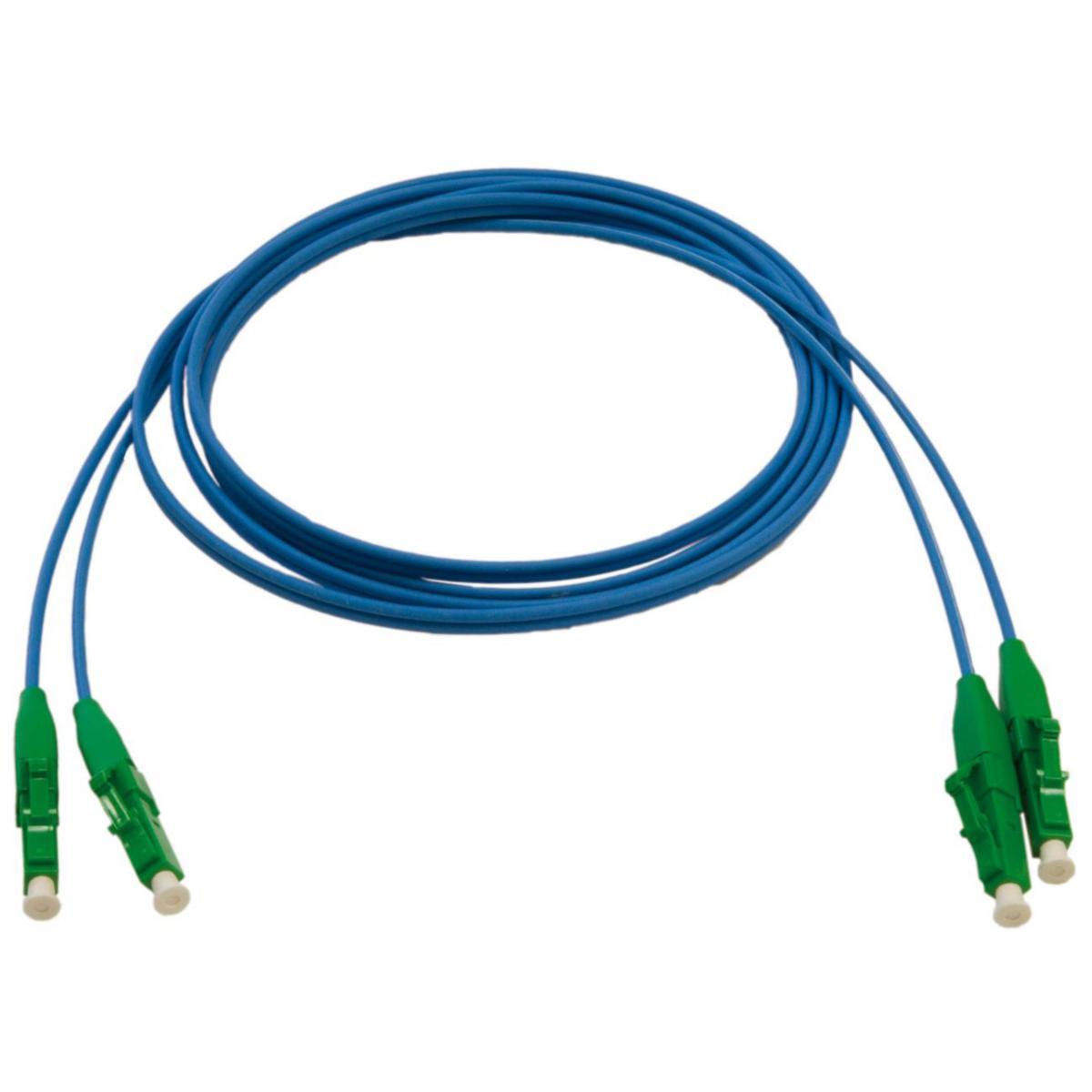

Fibre optic cabling SM Duplex LC/APC-LC/APC OS2 9/125, Nexans
PATCHCORD 2SM LCA-LCA 2M
Article number: Suppl. article no:
5070819
48716609
to see price and stock
Pre-fabricated and measured distribution frame cabling of highest quality. The sheath consists of halogen free and flame retardant plastic.
Available in two versions, single (simplex) with a contact at each end or double (duplex) with two contacts at each end. APC implies reflection reduction better than 60 dB.
Available in two versions, single (simplex) with a contact at each end or double (duplex) with two contacts at each end. APC implies reflection reduction better than 60 dB.
- Article number: 5070819
- Suppl. article no: 48716609
- Ean no: 7330000110458
- Material class QR590B
Technical data
- Type: 48716609-000-00
- Length: 2 m
- Colour outer sheath: Blue
- Number of fibres: 2
- APC-version connection 1: Yes
- Anti-kink sleeve: Other
- Cable type: Duplex
- Type of connector connection 1: LC
- Type of connector connection 2: LC
- Fibre type: Single mode
- APC-version connection 2: Yes
- Category: OS2
- Outer diameter sheath single fibre: 2 mm
- Flame retardant: According to IEC/EN 60332-3-24
- Halogen free according to EN 60754-1/2: Yes
- REACH Date: 2021-06-14
- REACH Information obligation: No
