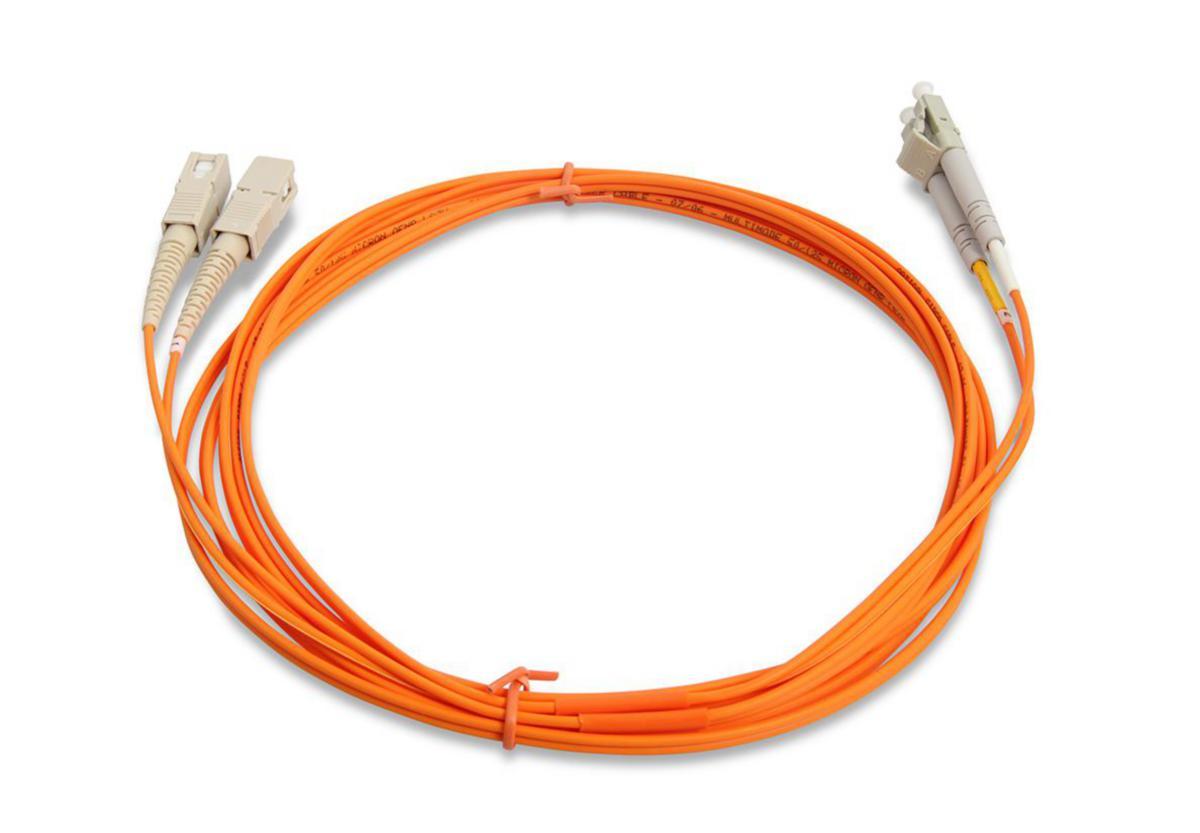

Fibre optic cabling MM OM2 2xSC-LC 50/125, Eurolan
PATCH 2XSC-LC 50/ 125OM2 7M OR 41F-20-SC-LC-07
Article number: Suppl. article no:
5076344
41F-20-SC-LC-07
to see price and stock
Eurolan fibre optic cabling is made to be used for fibre optic networks with high requirements, where quality and functionality are crucial factors.
The termination method is in accordance with applicable specifications and the work is performed under controlled forms. Each Eurolan fibre optic cabling is visually inspected and measured for approved result in order to become an approved product. The products are specially adapted for FTTX installations.
EuroLAN fibre optic cabling is delivered with 2.0mm outer jacket. EuroLAN fibre optic cabling is delivered with halogen-free outer jacket. Comes with measurement protocol.
Has max. damping around 0.3dB per contact. Included in EuroLAN’s system warranty.
Colour coding on cable; 50/125 Orange.
All contacts have “zirconia ferrule" and meet the specifications in TIA/EIA-568.3, Bellcore GR-02.
Measurement protocol included with each separate cabling packed together in the bag.
The termination method is in accordance with applicable specifications and the work is performed under controlled forms. Each Eurolan fibre optic cabling is visually inspected and measured for approved result in order to become an approved product. The products are specially adapted for FTTX installations.
EuroLAN fibre optic cabling is delivered with 2.0mm outer jacket. EuroLAN fibre optic cabling is delivered with halogen-free outer jacket. Comes with measurement protocol.
Has max. damping around 0.3dB per contact. Included in EuroLAN’s system warranty.
Colour coding on cable; 50/125 Orange.
All contacts have “zirconia ferrule" and meet the specifications in TIA/EIA-568.3, Bellcore GR-02.
Measurement protocol included with each separate cabling packed together in the bag.
- Article number: 5076344
- Suppl. article no: 41F-20-SC-LC-07
- Ean no: 7333089004113
- Material class QR5980
Technical data
- Type: 41F-20-SC-LC-07
- Length: 7 m
- Colour outer sheath: Orange
- Number of fibres: 2
- APC-version connection 1: No
- Anti-kink sleeve: Moulded-on
- Cable type: Duplex
- Type of connector connection 1: SC duplex
- Type of connector connection 2: LC-Duplex
- Fibre type: Multi mode 50/125
- APC-version connection 2: No
- Category: OM2
- Halogen free according to EN 60754-1/2: Yes
