Melbye

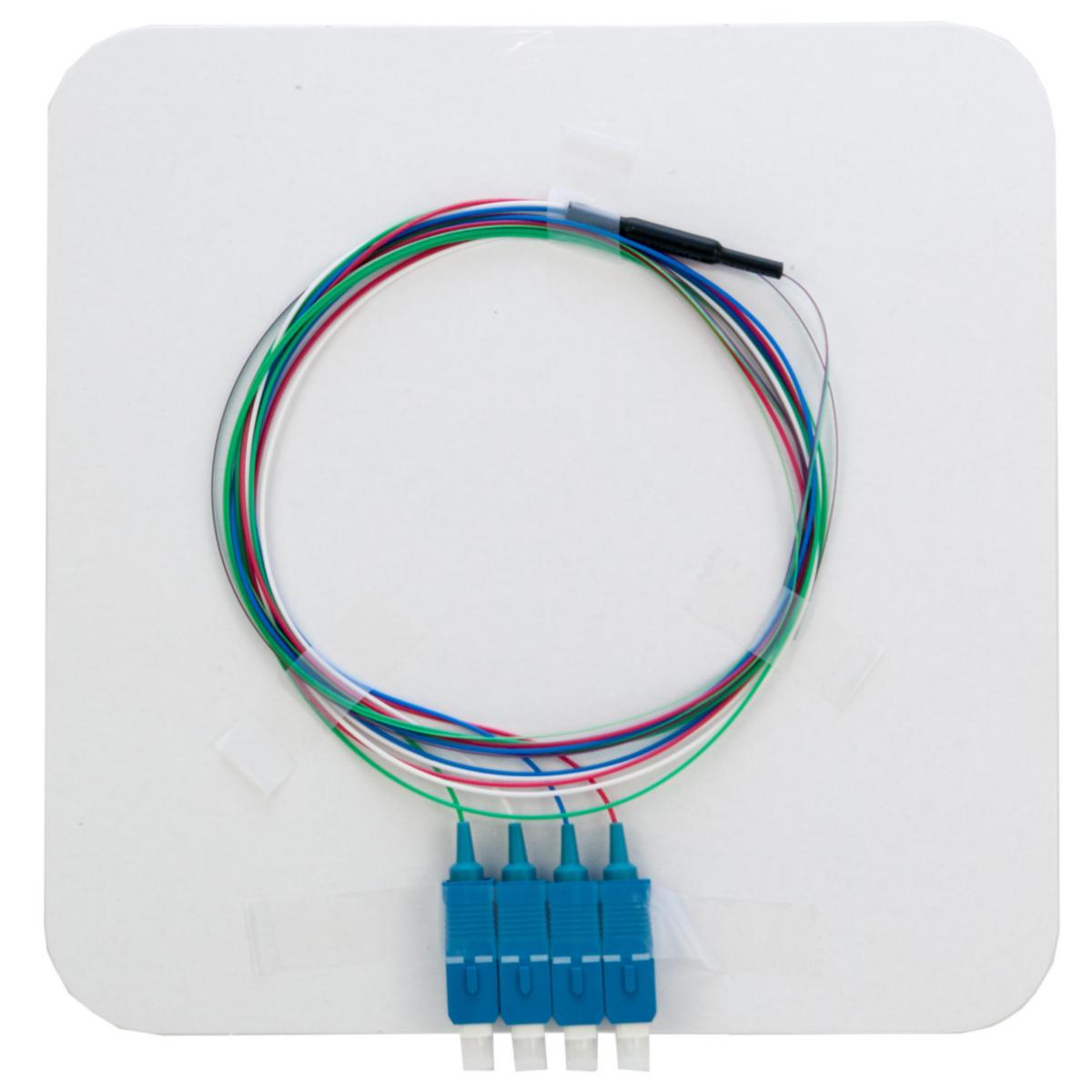

Fanout SM SC/UPC G657A 2m, Melbye
FANOUT SM 4XSC /UPC G657A 2M 11I15020
Artikelnummer: Lev. artikelnr:
5068828
5068828
för att se saldo och pris
Fanout with low attenuation and low reflection. Halogen-free and meets the requirements of TELCORDIA GR-326-CORE, IEC 61754 and IEC 61300. Color coding tape and pigtail according to S12. All fanouts are ID marked with a unique number and have full traceability. Individual measurement protocols. included with all fanouts.
Max attenuation 0.3 dB.
Maximum reflection 50 dB for UPC and 60 dB for APC
Operating temperature -25 to +70 ° C.
Attenuation variation after 1000 in / out disconnections max. 0.20 dB.
Max attenuation 0.3 dB.
Maximum reflection 50 dB for UPC and 60 dB for APC
Operating temperature -25 to +70 ° C.
Attenuation variation after 1000 in / out disconnections max. 0.20 dB.
- Article number: 5068828
- Suppl. article no: 5068828
- Ean no: 7332811143489
- Material class QR596B
Teknisk data
- Number of fibres: 4
- Type of connector: SC
- Category: OS2
- Length: 2 m
- Colour: Other
- Ferrule type: UPC
- APC-version: No
- Anti-kink sleeve: Put-on
- Fibre type: Single mode
- Core type: Semi tight
- Type: Cable pigtail
- REACH Date: 2021-12-13
- REACH Information obligation: No
